Chinese Double Colors Double Materials Vertical Injection Molding Machine

Product Description

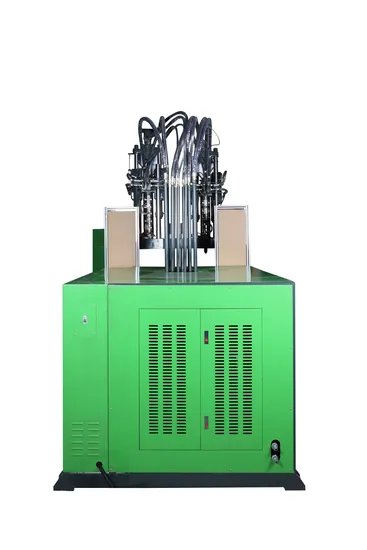

Chinese double colors double materials vertical injection molding machine
Here is Jieyang Brand machines company, we are a vertical plastic injection machine manufacturer.
This model we recommended has been a best seller for nearly few years.
We can provide machines to make above product and share you more details.
So you can quickly understand the performance of the machine, we will help you debug and lifetime maintenance services in advance, whenever you happen to me.
Our R&D team would help you to design a machine that meet your requiry.

Send me inquiry, We promise to give an additional six month free warranty.
Total 18 months warranty.
Parameter of Machine:

JY-900R2-2C Technique specification
Model		Units	JY-900R2-2C
Option Injection System		Series No	A.B	A.B
Clamping System	Clamping Force	T	45*2
	Clamping Stroke	mm	250
	Max.Opening	mm	480(580)
	Min Mold Height	mm	230(330)
	Max.Mold Size	mm	375*375/450*350
	Rotary Table Size	mm	980
	Ejector Force	T	1.75
	Ejector stroke	mm	45
Hydraulic System	Max. Hydraulic Pressure	Kg/cm2	140
	Pump Motor Power	Kw	7.5+7.5
Others	Machine Dimensions (L*W*H)	m	2.1*1.8*3.4
	Machine Weight	T	5.2

Machine Feature:
1.- Our machine has Two(three)-phase temperature, ejected spped, backing pressure and screw speed is suitable for various plastic to confectioned.

2.- Vertical clamping and injection design, especially suitable for the insert molding production.

3.- Adopts the international brand component for keeping machine running stable, reliable and accurately.

4.- High-power motor ensures plasticizing capacity during working time.
5.- User-friendly LCD display which owns diverse languages system indicates various functions and working situation.
6.- Jieyang Brand vertical injection machine have the advantage of low noise, low energy consumption,high efficiency and long life time.

Machines Details:
We can customize according to your requirements.
If you require any further information, feel free to contact me.

Application :
Vertical injection machine have the advantage of low-noise, low-energy-consumption,high efficiency and long life time, it's widely apply to produce various terminal blocks, connectors, cables,auto parts, Plug ,etc.
FAQ:

Q1: Are you a trading company or a manufacturer?

A1: Factory we are, all the machine are made by ourselves. Besides, you can get the customize service with your requirements

Q2: What's your warranty for the machine?

A2: One Year Warranty(all the machine parts can be replaced within one year free of charge, not including the manmade broke), life-time maintenance.

Q3: What's your Delivery Time?

A3: Usually it is 3-5 days if the machine is in stock; If not, the delivery time is 10-25 days according to your required quantity and our busy season.

Q4: Where is your factory? How can visit you?

A4: Our factory is next to Guangzhou and Shenzhen. We will drive you to our factory by car when you arrive at Dongguan or Changping Railway(Bus) station.

Q5: Why choose Jieyang Machinery Co., Ltd.?

A5: "Customer Satisfaction, Continual Improvement & Innovative Service" are the driving force for our company to moving forwards. We will devote every efforts to do the best level machine and service.
