Planetary Gearbox Speed Reducer Power Transmission for Standard Motor

Product Description

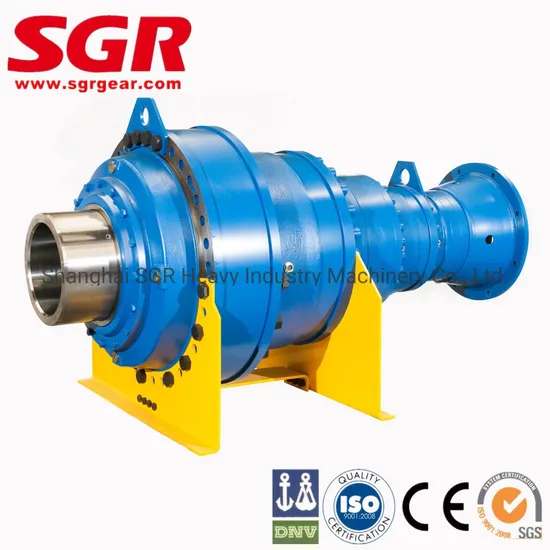

Planetary Gearbox Speed Reducer Power Transmission for Standard Motor
Description :
N series of planetary reducers from SGR are widely used for industrial and heavy duty severe applications . planetary reducer feature with compact size, low noise , excellent reliability ,long life . In-line or right-angle planetary gearboxes are available in male and female shaft configurations. The SGR male shaft solution (splined or cylindrical) is able to withstand strong radial or axial loads on the output shaft. As a leading planetary gearbox manufactory in China , SGR planetary reducer is produced by modular design, combined according to customer requirement, housing material from SGR with nodular cast iron which can increases gearbox's rigidity and antiknock, heavy-duty bearing is installed at low-speed shaft, it can bear big radial load due to proportionate distribution of torque ,every SGR gears are case hardened to get high reliability and long life . SGR planetary reducer have 16 models for different torque range ,each SGR model have 1-5 stages to achieve different ratios , SGR planetary reducer have wide rang selection of high speed design: cylindrical with key, hydraulic motor, electric motor .Installation in SGR is multiposition ,various fasten type .
Key feature: Planetary gearbox is produced by modular design, and can be combined according to client's request Involuted planetary gear design Nodular cast iron Housing to increase rigidity and antiknock Heavy duty bearing on low‐speed shaft, and can bear big radial load due to proportionate distribution of torque All gears are case hardened to get high surface hardness, which guarantee transmission efficiency and whole gearbox's life Planetary gearbox has 16 models for different torque range, and each model have 1‐5 reduction stages to achieve different ratios Ratio range: 3.15‐9000 Input power: 0.25‐55KW Permit torque rang: ≤ 800000N. M Output speed: 0.425‐445 r/min Structure mode: Possibility of flange, foot, or shaft mounting solutions Wide and comprehensive range of N series for industrial applications Low speed shaft design: Cylindrical with key, splined, hollow with shrink disc or splined hollow shaft Rigid and precise nodular cast iron casing Low noise running, high manufacturing quality standard High and reliable performance, load capacity and low speed shaft bearing
Data Sheet :

Torque range	1000 ... 540000 Nm	Input	IEC Flange
Mechanical rating (n1 = 1500 min-1)	up to 200kW		Electric motor
Gear ratios	3.15 ... 5000		Solid input shaft with or without fan cooling - inch or metric dims.
Gear unit versions	In line	Applicable AC motors	Integral motors and brake motors
	Right angle (with bevel gear set)		IEC-normalized motors and brake motors
Mounting type	Foot		Single and dual speed motors
	Flange mounted	Main brake features	DC and AC supply
	Torque-arm		Faster brake reaction through electronically controlled rectifier
Output shaft options	Solid shaft	Main motor options	Thermistors and thermostat sensors
	Splined shaft		Independent forced cooling
	Female splined shaft		Line driver and push-pull incremental encoder
	Hollow shaft with shrink disc

---
