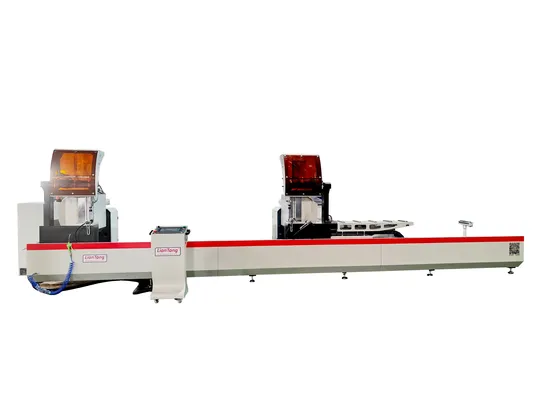

Double Head Cutting Saw Factory Direct Sale UPVC Profile Double Head Cutting Saw/Aluminum Profile Cutting Saw

Product Description

Product Description
1.High cutting precision
------Length accuracy±0.01mm, Cutting perpendicularity±0.05mm
2.High efficiency
------Double saw cutting simultaneously,saw blade can swing Angle 45 degrees or 90 degrees
3.Simple operation
------High degree of automation, simple operation
4.Having a professional team
------The company has a professional mechanical and electrical team, can be customized according
to customer needs suitable equipment to meet the production requirements
Cutting materials:

a. Italian type flip head, saw blade can swing Angle 22.5 degrees to 135 degrees
b. Mature cutting process, cutting from back to front, high verticality, good accuracy
c. Hydraulic damping cylinder is used for feed cutting, feed speed is uniform, and the incision blade is uniform
d. Moving head is driven by servo motor precision rack for leaflets, high-precision wire gauge for guidance, positioning speed, high precision
e. Saw blade directly connected structure, no belt and bearing in the middle, high verticality, no accessories loss
f. The cutting list can realize positioning and cutting of different sizes
g. PLC and servo control, and overheat or overload protection device


Product Parameters

Power Supply	3~380V+N+ Ground wire (five-wire three-phase)
Total poewr	7KW
Saw power	3.0kw*2
Saw speed	3000RPM
Positioning accuracy	±0.1mm
Angular accuracy	<=3'
Cutting size	Width:max 150mm Height:max 260mm
Cutting Angle (pneumatic swing Angle)	45 degrees or 90 degrees
Saw blade size	∮550mm*30*4.5*120T
Saw feeding speed	0-10m/min
Cutting length	280(90 Degree)-6000mm
Air pressure	0.5-0.8Mpa
Equipment gas consumption	50L/min
Optional accessories	Dust collector 3KW
Overall dimension	L7600*W1700*H1750mm
Weight of machine	About 2200kg

Company Profile

Packaging & Shipping
FAQ
Q: Are you manufacturer or trading company?
A: We are a professional manufacturer dedicated to the research and producing of high quality aluminum cutting machines for 20 years.
Q: Can I have your quotation?
A: First, please offer us the information of your cutting material and its size,without these parameter, we are not able to recommend you the suitable machine.
Q: Do you have overseas service? How to provide after-sales service? A: Yes, we normally help our customers to solve the problems through phone, Email, skype, internet video. Very high efficiency.
Q: How long is the equipment warranty?
A: We offer one year guaranteen for the main parts, within one year, if component of the machine broken, we freely offer the component, but the delivery fee should be paide by client.
Q: What is the voltage and Hertz in your country?
A: In China,the Voltage is 380V(3 Phase), the Hertz is 50Hz, we can change the voltage and Hertz according to your requirment.
Q: What is the delivery lead-time?
A: Aluminum cutting machine: Normally 5-30 days upon receipt of your orders and its deposit. Saw blade: 5-30 days(depending on availability of saw blade stock or material stock) upon receipt of your order and deposit.
Q: What is your payment terms?
A: We accept L/C, T/T, D/P, Western Union and PayPal. As T/T, 30% deposit, 70% of balancepaid before shipment.
Q: Can you customize for us?
A: Yes.
Q: Can you OEM/ODM for us?
A: Yes
Q:Can I get a discount?
A:Yes, for the yearly order quantity of more than 5 sets, please contact us to get the best price.
Q:Do you inspect the finished products?
A:Yes, each step of production and finished products will be coming out inspection by the QC department before shipping.
Q: Do you provide equipment operation training? Do you have the operation instruction book in English?
A: Currently we can do on-line technical operation training for customer's staff. Yes, we have English version operation instruction book for each cutting machine.

---
