Basic Info.
Model NO.
ZLJ5340THBKF 47X-5RZ
Machining Process
Hydraulic
Vibrating Amplitude
2.6mm
Certification
ISO9001: 2000
Maximum Theorical Output
180/120m3/H
Maximum Pressure on Concrete
80/120bar
Conc. Cylinders (Diam. X Stroke)
260X2100mm
Concrete Hopper Capacity
600L
Maximum Vertical Reach
47m
Maximum Horizontal Distance
42.7m
Minimum Unfolding Height
9.7m
Transport Package
Nude Packing with Wax
Specification
11990*2490*3900 mm
Product Description
Company Profile
Oriemac is a leading Chinese construction machinery exporter, located in downtown Shanghai City.
With a balanced and diversified approach towards the ever-changing market scenario in perfectcombination with strategic management and organic growth, Oriemac has emerged as a renowned exporter of a wide range of top Chinese Construction Machinery. Bringing you the best construction machinery manufactured by reputed manufacturers in China, we assure you of immaculate quality and excellence.
With a rich experience of many years, we have acquired the requisite expertise and excellence in our domain. Having scaled phenomenal heights of success, today we stand tall amidst a number of competitors across the world. A well-coordinated and expertly managed operation system and professional international sales team enable us to turn orders into final products and export them to approximately 60 countries and several regions across the globe.
Oriemac brings you a wide range of construction machinery series, as follows:
- Lifting Machinery, such as Truck Crane, All Terrain Crane, Rough Terrain Crane, Crawler Crane, and Truck-mounted Crane
- Earthmoving Machinery, such as Wheel Loader, Mini Loader, Excavator, Bulldozer, Backhoe Loader, and Skid Steer Loader
- Road Construction Machinery, such as Road Roller, Motor Grader, Asphalt Concrete Paver, Cold Milling Machine, and Soil Stabilizer
- Concrete Machinery, such as Concrete Pump, Trailer-mounted Concrete Pump, and Concrete Mixer
- Drilling Machinery, such as Horizontal Directional Drill, Rotary Drilling Rig
- Logistics Machinery, such as Telescopic Handler, and Forklift
- Special Vehicle, such as Dump Truck, Semi Trailer, Aerial Work Platform, and Fire Truck Product Description

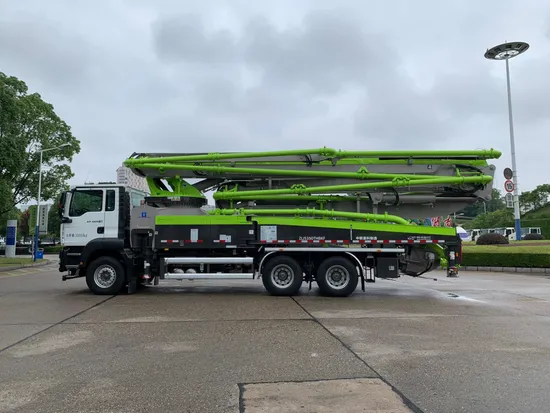

Zoomlion 47m Truck Mounted Pumps Zlj5340thbkf 47X-5rz
Compact in design, 47m pump mounted on a 4-axle truck. • Efficient pump unit, ideal for long time use. • Agile placing boom with 6 arms with unfolding height 9.5m only,which gives a wide work range. • One side lateral support enables to work in narrow sites. • Controller is designed for heavy duty use, with a monitor, itmonitors the pump intelligently on working data agement,real-time diagnostics, alarm logging, and service interval notice.
• Rich in configurations and high quality components. • Boom with damping technology. • Stabilization control on boom. • Multilingual -machine interface system. • PWM+CAN dual communication mode remote control
Model
| Unit
| 47X-5RZ
|
Pump Unit
| Maximum theorical output
| m3/h
| 180/120
|
Maximum pressure on concrete
| bar
| 80/120
|
Conc. cylinders (diam. x stroke)
| mm
| 260x2100
|
Concrete hopper capacity
| L
| 600
|
Hydraulic circuit
|
| Open
|
Boom Section
| Maximum vertical reach
| m
| 47
|
Maximum horizontal distance
| m
| 42.7
|
Minimum unfolding height
| m
| 9.7
|
Section numbers
|
| 5
|
Rotating angle
|
| ±270°
|
End hose lenght
| m
| 3
|
Detailed Photos
