Precision Manufacturer CNC Milling Machine 3 Axis Automatic CNC Machining Center

Product Description

Product Description

APPLICATION: Vertical CNC machining center is also named cnc milling center machine, widely used in automobile, aviation, aerospace, mold, machinery manufacturing and other fields. vmc milling is an efficient, precise and intelligent metal processing equipment. It can automatically change tools and position on three coordinate axes. It is suitable for processing various complex parts, such as plates, discs, shells, molds, etc.

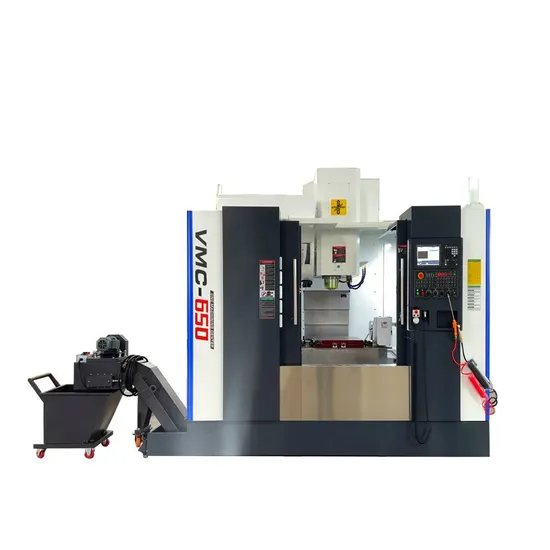

precision manufacturer cnc milling machine 3 axis automatic cnc machining center
Product Parameters

ITEM	UNIT	VMC650	VMC850	VMC1160	VMC1270	VMC1370	VMC1580
- STROKE -
X-Axis Travel	mm	650	800	1100	1200	1300	1500
Y-Axis Travel	mm	400	500	600	700	700	800
Z Axis Travel	mm	500	500	600	600	700	700
Distance From Spindle Center To Column Guide Rail	mm	500	590	650	650	785	810
Distance From Spindle Nose To Worktable	mm	120-620	140-640	120-720	140-740	110-810	170-840
- FEEDING -
X-Axis Rapid Traverse Speed	m/min	36	36	24	24	24	15
Y-Axis Rapid Movement Speed	m/min	36	36	24	24	24	15
Z-Axis Rapid Movement Speed	m/min	36	36	24	24	24	12
Cutting Feed Rate	mm/min	1-10000	1-10000	1-10000	1-8000	1-8000	1-5000
- WORKTABLE -
Workbench Area	mm	400*900	500*1000	600*1200	700*1300	700*1400	800*1700
Workbench Bearing	kg	400	600	800	1000	1200	1500
Table T-Slot	mm	3-18	5-18*90	5-18*100	3-18*125	5-18*122	5-22*135
- SPINDLE -
Spindle Speed	rpm	8000	8000	8000	8000	8000	6000
Spindle Taper	-	BT40	BT40	BT40	BT40	BT40	BT40
Main Motor Power	KW	5.5	7.5	11/15	15/18.5	15/18.5	15/18.5
- PRECISION -
Positioning Accuracy (Jis Standard)	mm	±0.003	±0.003	±0.003	±0.003	±0.003	±0.003
Repeat Positioning Accuracy (Jis Standard)	mm	±0.005/300	±0.005/300	±0.005/300	±0.005/300	±0.005/300	±0.005/300
FULL MACHINE
Size	mm	2430*2000*2550	2700*2200*2500	2900*2350*2350	2800*2260*2560	2880*2280*2570	4300*3200*2100
Weight	kg	4000	5500	7000	7800	8800	13000

Detailed Photos






facing and centering machine double side ATC machining center more solutions

Company Profile

Business Scope Based on the ISO9001 quality system, we mainly produces CNC machine tools for milling end face and center hole, milling drilling tapping and threading center, horizontal/vertical CNC lathes,CNC machining center,customized multifunctional special CNC machine tools, etc. In addition, also include machine tool accessories. We also customize multi-station combined machine tools and production lines according to customer's specific requirements.
Sales·Concept Our main sales methods are agent channel sales, product bidding cooperation, and exhibition sales.Our main sales methods are distributors, distributors, franchise sales, product bidding, exhibitions and other sales methods. Online retail is a project we have only recently invested in. Through high-quality products, excellent solutions, and ideal prices, we will further enhance the company's popularity.
Quality·Safety·Innovation YOTMT Machine Tool is a professional, efficient and innovative CNC machine tool developer, with more than 70 product patents and technical patents, enjoying a high reputation at the national level. And successively won honorary titles such as National Integrity Enterprise, Outstanding Contribution Enterprise, Chinese Famous Brand, ISO9001 quality management system certification,national quality conformity assessment quality trustworthy product,and AAA Enterprise.


FAQ
What are the main products of your company and what are their advantages?
Our main products are CNC machine tools, machining centers and special machine tools. We have a comprehensive science and technology enterprise specializing in the design, manufacture, sales and service of these products. Our products have highprecision, high efficiency, high stability and low energy consumption. We can also customize products according to customer needs. How do you ensure the quality of your products and what are your quality certifications?

We have a strict quality control system from raw material procurement to finished product inspection. We have advanced testing equipment and professional technicians to ensure the accuracy and performance of our products. We have passed ISO9001 quality management system certification and CE certification.

How do you provide after-sales service and warranty for your products?

We provide 12 months warranty for our products from the date of shipment.and lifetime after-sales service. We also provide online technical support, spare parts supply, training and maintenance service for our customers. We have a professional after-sales team to solve any problems you may encounter.

How do you deliver your products and what is your delivery time?

We can deliver our products by sea, air or land according to your preference. We have a fast delivery time of 30-60 days depending on the order quantity and product type.

What are your prices and payment terms?

Our prices are competitive and reasonable in the market. We can offer you different payment terms such as T/T, L/C, D/P, D/A, etc.We can also provide you with trade assurance service to protect your order and payment.

Do you have any agents or distributors in our country?

As a leading famous brand in China, our international sales channels are still expanding, please consult online for specific countries. Welcome qualified distribution agents to join us, we look forward to cooperating with you.

---
