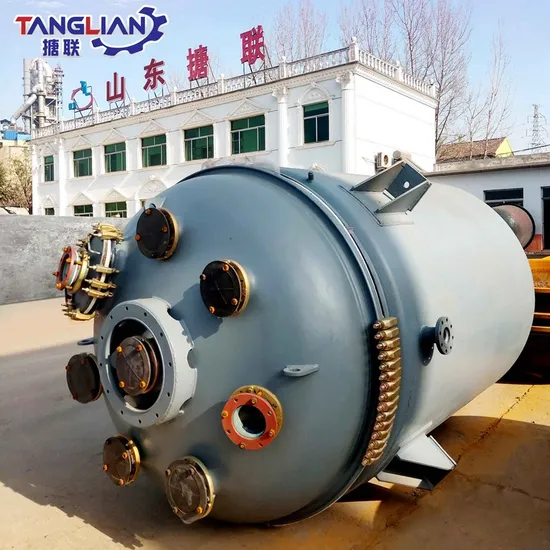

Steam Oil Heating Msgl Pressure Vacuum Glass Lined Kettle Reactor

Product Description

Shandong Tanglian Chemical Equipment Co.,Ltd.,founded in 1998,is a one of the longest -established Chemical Reactors factories in China , and now we are acting as a group with 7 branches companies .
Our main products include:
Glass Lined Reactor(GLR) , GMP Stainless Steel (SS) Reactor ,Mild Steel ( MS ) Reactor , High Borosilicate Glass Reactor , and related equipment such as Tank, Dryer , and Condenser etc..
And other chemical equipment from 5L to 50000L as below :
Condensers, Distillation columns, Measurement tanks, Storage tanks, Heat ex changer, Stainless steel tanks, Glass lined receivers and vessel, Distillation tanks, Wiped film evaporators, Vacuum dryers, Pressure vessel. Glass Lined (Enamel / GLR) / GMP Stainless Steel (SS) / PTFE Chemical Reactor / Storage /Mix /Stirring Tank Glass Lined / Stainless Steel Laboratory Chemical Reactor ,Distillation Tank , Measurement Tank , Electric Heating Reactor ,Heat Exchanger
Main Structure Design of K Type Glass-lined Reactor

pecification Model		K-50	K-100	K-200	K-300	K-500	K-1000	K-1500	K-2000	K-3000	K-5000	K-6300
Nominal Capacity (L)		50	100	200	300	500	1000	1500	2000	3000	5000	6300
Actual Capacity (L)		71	128	247	369	588	1250	1720	2160	3380	5224	6735
Heat Exchange Area(m2)		0.34	0.66	1.26	1.75	2.64	4.54	5.34	7.02	8.61	13	16.4
Dimension mm	D1	500	600	700	800	900	1200	1300	1300	1600	1750	1750
	D2	600	700	800	900	1000	1300	1450	1450	1750	1900	1900
	D3	706	816	918	1028	1130	1468	1622	1622	1964	2152	2152
	Hl	265	300	345	380	405	480	505	505	580	617	617
	H2	400	500	700	800	1000	1200	1400	1745	1740	2050	2997
	H3	300	320	350	350	400	500	500	500	600	670	700
	H4	945	945	953	1154	1154	1276	1276	1276	1326	1326	1475
	H	1705	1845	2110	2440	2700	3000	3310	3650	3785	4800	5580
Transmission model		BLD-1	BLD-1	BLD-1	BLD-2	BLD-2	BLD-3	BLD-3	BLD-3	BLD-3	BLD-4	BLD-4
Type of Agitators (r/min)	Frane(Anchor)Type	63/85	63/85	63/85	63/85	63/85	63/85	63/85	63/85	63/85	63/85	63/85
	Turbine Type	130	130	130	130	130	130	130	130	130	130	130
Glass-lined nozzle	a	80	80	125	125	150	300x400	300x400	300x400	300x400	300x400	300x400
	b	70	70	80	100	100	125	125	125	125	125	125
	c	70	70	70	70	70	100	100	100	100	125	125
	d	-	-	80	80	100	100	100	100	100	125	125
	e	70	70	70	70	80	100	25	25	25	25	25
	f	-	-	70	70	125	125	125	125	125	150	150
	g	70	70	-	-	-	100	100	100	100	125	125
	h	-	-	70	70	80	100	125	125	125	150	150
	Outlet	70	70	80	80	80	100	100	100	125	125	125
Jecket nozzle	Inlet(outlet)	3-20	3-20	3-25	3-25	3-32	3-32	4-50	4-40	3-50	3-65	4-65
	Spray mouth	-	-	-	-	-	-	-	2-50	2-65	3-65	-
Reference Weight (Kg )		463	530	700	984	1213	1909	2441	2693	4060	5186	5844

Main Specification of K Type Glass-lined Reactor

Zibo Tanglian Chemical Equipment Co.,Ltd., as one of the most famous manufacturers of various chemical equipment in China , and with over 20 years export business experiences , we have sold our products to all provinces in China and over 30 countries in different continents all over the world .
We are keep develping the overseas market , and wish can be your reliable supplier and parterner .
Question: Are you a real factory?
Reply: Yeah. we are a real factory of glass lined enquipment and stainless steel equipment. And our factory have over 20 years history. Welcome anytime.
Question: What is the daily output of your equipment?
Reply: 1500sets per year.
Question: How about your quality warranty?
Reply: We have strict inspection for the equipment before loading, and have one year quality warranty if the customers use the goods under the correct operation.
Question: How about the MOQ? How about delivery time?
Reply:
01 MOQ: 1set
02 Delivery time in accordance with the production time,30-60 days to the port of departure.

---
