Jbs40 10-40m3/H Trailer Diesel Concrete Mixer Pump

Product Description

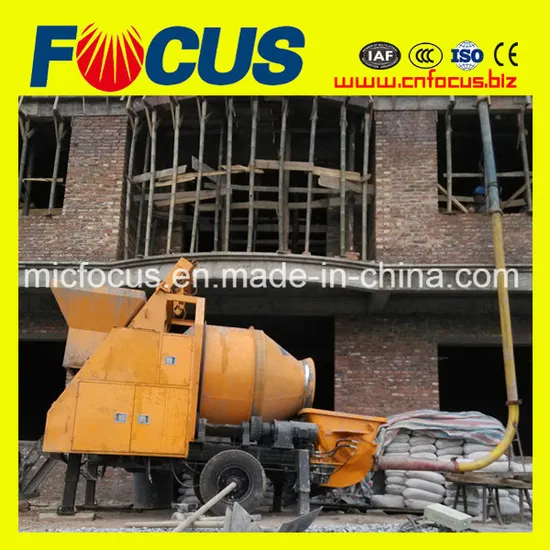

JBS40 Diesel concrete pump with mixer for sale
1. Application of JBS40 diesel concrete pump with mixer for sale:
Group building, bridges, and the small construction projects, 4-6 floors building.
2. Main Features of JBS40 diesel concrete pump with mixer for sale:
1) New combination of concrete pump and concrete mixer.
2) Diesel engine, can be used in rural area. Easy to move and operate, very convenient.
3)The pump construction operation system used in all automated, all material mixing, high pressure pumping.
Video:https://micfocus.en.made-in-china.com

Mixing system and Pumping system of JBS40 diesel concrete pump with mixer
Mixing system:
Double motors for mixer mixing with features of quick and homogeneous mixing.
Grinding wheels for mixing drum rotation, stable and reliable.
Vibrating device for aggregate complete discharging.
Pumping system:
Fully hydraulic pumping system with double concrete cylinders and double oil cylinders, stable and reliable.
Hydraulic parts are famous brands from home and aboard with high and reliable quality.

Model Parameter	JBS30-10-37	JBS30-10-66R	JBS40-10-45	JBS40-10-82R	JBS40-10-84R	JBS40B-JS500	JBS40B-JS750	JBS40B-JS500-129R	JBS40B-JS750-129R
Engine power	Electric, 37kw	Weifang diesel engine, 66kw	Electric, 45kw	WEICHAI diesel engine, 84kw	Weifang diesel engine, 84kw	Electric, 18.5+5.5kw	Electric, 30+7.5kw	WEICHAI Diesel engine, 129kw	WEICHAI Diesel engine, 129kw
Max. Pumping capacity	30m3/h	30m3/h	40m3/h	40m3/h	40m3/h	40m3/h	40m3/h	40m3/h	40m3/h
Mixing Mixer	JZM450	JZM450	JZM450	JZM450	JZM450	JS500	JS750	JS500	JS750
Max. Mixing capacity	18m3/h	18m3/h	18m3/h	18m3/h	18m3/h	25m3/h	35m3/h	25m3/h	35m3/h
Max. Aggregate diameter(mm)	15/20mm	15/20mm	40mm	40mm	40mm	40mm	40mm	40mm	40mm
Pumping Distance (Vertical/Horizontal)	80m/400m	80m/400m	100m/500m	120m/600m	120m/600m	120m/600m	120m/600m	120m/600m	120m/600m

---
