Hydraulic Support Honing Machine

Product Description

DWH Series Tube Honing Machine
DWH machine is SHANGHAI HONING famouse items , have sold in China and abroad for 10 years , help us to win many customers .
1 Description
1 Spindle system
Spindle motor utilizes German original variable speed motor with friction plate, through the three transformation grade of a gear box , it is easy to adjust the spindle speed , spindle motor with brake function can eliminate the phenomenon of the hole wall scratched at the end of honing .
2, Spindle Tank reciprocating motion
Reciprocating motion motor adopts servo motor of the United States, drive by chain link. You can adjust the length of Reciprocating motion , based on the length of workpiece , according to the situation of workpiece machining accuracy at the same time, to pause short stroke on both ends of the workpiece.
3 The stone feed system
Adopt servo motor rotation-gear rack mechanical feed mode, the high precision of the servo motor resolution can be precisely controlled feeding . Pinion and rack self-locking function ,on the other hand, can effectively repair the inner hole accuracy and energy consumption will be greatly reduced.
4 Display formation
Siemens touch screen mode display can convenient man-machine interface operation. Display content not only has the menu of installation and operation under the states of manual and automatic, and can even show honing head pressure, time and stroke speed honing machine working condition.
Spindle load table shows parts top and bottom of the inner holes so that the operator adjust honing parameters
Technical Data: meters : 2-10m, customized .

Engine bed main engine system	STOBER" speed change power
electrical power	5.5kw
spindle speed	10-350r.p.m.
reciprocation power	DANAHER Servo power
electrical power	4.2kw
Max. reciprocation length:	2000mm-10000mm
reciprocation speed:	1-40m/min
feed electrical power	Mitsubishi servo power
electrical power	1kw
V Jip:
maximum clamp outer diameter	550mm
clamp way:	Chain
Engine bed coolant system:	Magnetism roller purifier+paper
Refrigerant maximum current capacity:	100L/min
Coolant Case:	500L
Refrigerant request:	Special-purpose honing oil
power request:	380V,50Hz,3Phs
Air Pressure Request :	0.6MP,30L/M Flow

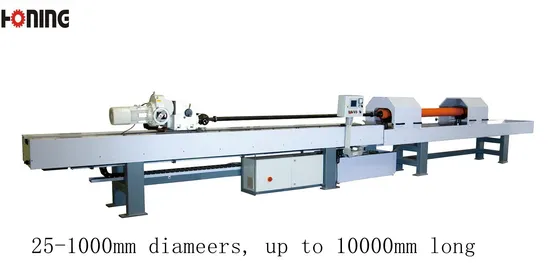

Machine Photos
Honing Tools Photos
Packing and Shipping
Factory View Founded in 2006, SHANGHAI HONING MACHINERY CO.,LTD is a specialized company devote to the invention , produce, sale and service of the honing products Our main products include the honing machine, honing tools and honing stones ect. In addition to providing professional honing solutions based on customer's requirements .
At present, we have won a number of invention patents , and also have passed the ISO ,CE certification . Our products enjoy high reputation not only in Chinese market, and exported to the United States , Western Europe , and many other developed countries , with stable quality and excellent service is the consistent favor of international customer.
In 2016 year , SHANGHAI HONING has a new factory in YXING city , we develop our business better and better . Also we are waiting for more good partners to cooperate with us in the future
We are looking for distributors , welcome to contact with us !

---
