Cylinder Block Grinding Machine

Product Description

Cylinder Block Surface Grinding Machine
PARE 1---Product discription
FEATURES:
* This machine is Surface Grinding and Milling Machine for small and medium,large-size cylinder
heads and blocks. This machine is accurate and wide use. It makes possible to solve mostly
grinding jobs, and it is optimal and economic choice.
* This machine is featured by automatic reciprocating movement of table which is electric motor;
the grinding head is operated by one of the main motor which directly controls the grinding
wheel spindle and by one additional motor for up-down movement of grinding head .
* It has two different grinding procedures; with grinding wheel ; insert milling cutter.
* 700 r.p.m high velocity milling and step-less speed regulation for feeding by frequency
conversion control, high smooth surface of machining , suitable for aluminum alloy cylinder
body.
PARAMETER:

Specification	3M9735Ax 130	3M9735B x 130	3M9735B x 150
Working table size	1300 x 500mm	1300 x 500mm	1500 x 500 mm
Max. length of grinding	1300 mm	1300 mm	1500 mm
Max. width of grinding	350 mm
Max height of grinding	600 mm	800 mm	800 mm
Vertical moving distance of grinding wheel head	~	800 mm	800 mm
Transverse moving speed of working table	40-900 mm/min
Grinding wheel disk diameter	360 mm
Spindle speed	1400/700 r/min
Electric motor power cooling down	0.4 Kw
Power of the main motor	1.5/2.4kw
N.W. / G.W.	2800 / 3100 kg	2800 / 3100 kg	3000 / 3300 kg
Overall dimensions(L x W x H)	2650x1050x2100 mm	2800x1050x1700 mm	3050x1050x1700 mm
Packing dimensions(L x W x H)	2980x1150x2200 mm	3100x1200x1850 mm	3350x1200x1850 mm

PART 2--- Our Services
1. Free replacing parts available in the warranty period.
Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).

Part 3---Company Information

"TIMEWAY MACHINE" is a registered Chinese business business located in Zhengzhou city, in the center of China, and has been opearting in the machinery industry for many years.

Our factory is the joint-stock enterprise, founded in 1946, has 50 years of machine tool manufacturing history.Occupies more than 500acres, built a foundary, machining, heat treatment, assembly, quality inspection, painting, logistics and other advanced production lines.

Our product mainly cover lathes, Milling, Drilling, Gringding, Sawing, Shaping/Slotting and related accessories&tools, etc.
Packaging & Shipping

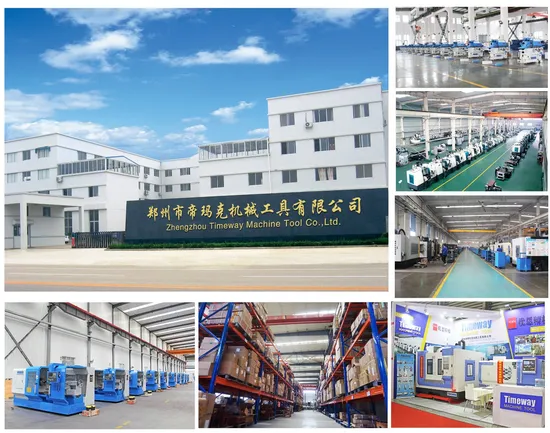

Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
Customer visited
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
The following is one of the most satisfactory products recommended by customers, as well as our main product categories. you can click and view

Conventional Lathe	CNC Lathe	CNC Machining Center	CNC Milling Machine
Grinding Machine	Milling Machine	Special Use Lathe	Boring Machine

FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.

---
