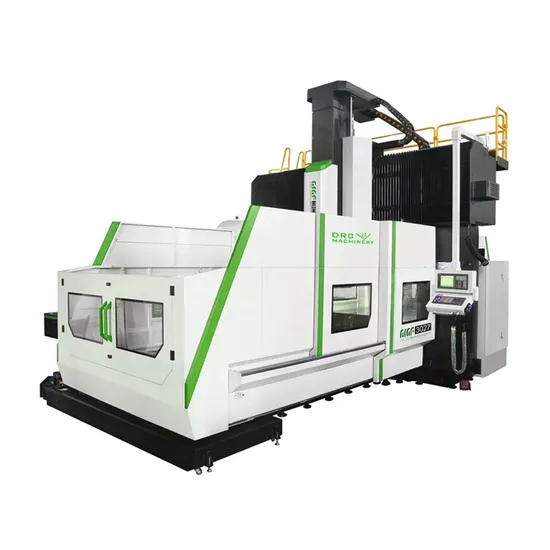

Fanuc Controller Vertical CNC Milling Machine Heavy Cutting Double Column Gantry Type CNC Machining Center

Product Description

FANUC controller vertical CNC milling machine heavy cutting double column gantry type CNC machining center Latest New Design Factory Price Taiwan Accessories Machining Center China Mini Cnc Router Gantry milling Lathe Machine Widely used in the aviation, auto, precision molding industries. GMC series can provide a high-performance mechanical system and a software interface which can be operated easily. This provides multiple choices of multiple choices that will allow you to fully realize the high precision dream.
Widely used in the aviation, auto, precision molding industries. GMF series can provide a high-performance mechanical system and a software interface which can be operated easily. This provides multiple choices of multiple choices that will allow you to fully realize the high precision dream.

Specifications		32B Series
Machine Type	Unit	GMC3032B	GMC4032 B	GMC5032 B	GMC6032 B
Worktable
Worktable (length×width)	mm	3000×2300	4000×2300	5000×2300	6000×2300
Maximun Load of table	kg	15000	18000	22000	25000
T-slot	mm	11-22×200
Triaxial itinerary
Gantry width	mm	3230
Travel for X/Y/Z axis	mm	3200/3200/1000	4200/3200/1000	5200/3200/1000	6200/3200/1000
Distance from spindle nose to table surface	mm	310-1310
Feed system
CNC system	FANUC Oi MD
Rapid shift of axis of X/Y/Z	m/min	12/12/10	10/12/10		8/12/10
Maximun cutting feed speed	m/min	7
Automatic tool transform system
Standard tool quantity	Piece	BT50/32
The larges diameter cutter knife/length	mm	Φ125/300
Tool exchanging manner		Pneumatic
Maximum tool weight	kg	18
Precision
Positioning accuracy	mm	0.021
Accuracy of repeated	mm	0.02
Guide form and specifications
X/Y/Z-axis guide specifications		3-55(X)/2-55(Y)/Z axis hard rail
Spindle system
Spindle specifications		BT50/Φ200
Speed with belt drive milling head	r.p.m	4000
Motor power of spindle	kw	22/26
Air pressure
Requirements for air	kg/cm²	≥6
Air pressure flux	m³/min	≥0.5
Machine specifications
Integrated weight	kg	45000	50000	54000	56000
Overall dimension (length×width×height)	mm	7840×5750 ×5167 (Travel peak)	9840×5750 ×5167 (Travel peak)	11840×5750 ×5167 (Travel peak)	13840×5750 ×5167 (Travel peak)

CNC Gantry Machining Center_Double Column Milling Machine
StructureThe structure of machine tool is analyzed with ANSYS at all stages from foundation design to guarantee of high-speed and high-precision continuous machining. A simulation test for deformation produced when the center of machine tool bears load is conducted to guarantee excellent bending rigidity of machine tool.

---
