Double Chuck Lathe Machine Pipe Threading Machine Q1313

Product Description

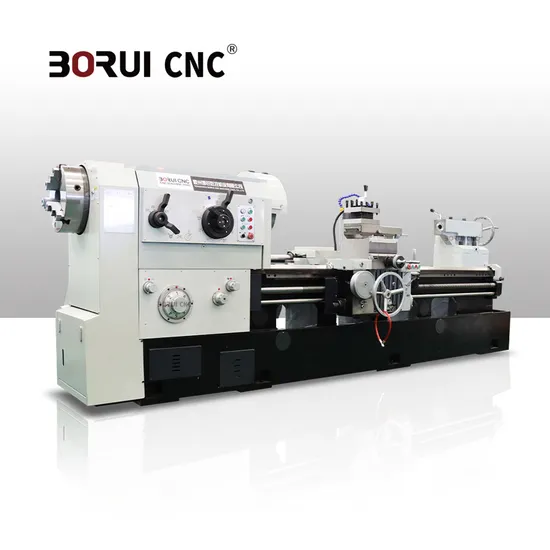

Double Chuck Lathe Machine Pipe Threading Machine Q1313
Product Description
Q1313 horizontal pipe threading lathe machine is mainly used for turning the internal and external threads including metric and inch thread,as well as having all the common functions of normal engine lathe such as processing the inner bore and end face of shafts and disks,this machinery is equipped with taper guide bar device which enables this series to process taper thread.
This series lathe machine is widely used in industries including petroleum exploiting ,coal and minerals mining,chemical piping and geological prospecting,it is high-efficiency equipment in processing and repairing drilling pipe,drilling rod,thread coupling and so on.
Product Parameters
Product main technical specification:

Specifications		UNIT	Q1313	Q1319	Q1322
Capacity	Swing over bed	mm	630/800	630/800	630/800
	Swing over cross slide	mm	340/540	340/540	340/540
	Distance between centers	mm	1500/3000	1500/3000	1500/3000
	Pipe threading range	mm	30-126	50-193	50-220
	Width of bed way	mm	550	550	550
	Max.load capacity	T	3	3	3
Spindle	Spindle bore	mm	130	200	225
	Spindle speed steps	-	FWD. 18/REV. 9	VF.4 STEPS	VF.4 STEPS
	Spindle speed range	rpm	30-650	20-380	20-380
	Chuck size	mm	400	520	520
	Chuck type	-	3-jaw manual	4-jaw manual	4-jaw manual
Turret	Turret type	-	Manual 4 position	Manual 4 position	Manual 4 position
	Tool shank size	mm	30x30	32x32	32x32
Carriage	X axis feed grade/range	mm/r	22/0.02-0.45	22/0.02-0.45	22/0.02-0.45
	Z axis feed grade/range	mm/r	26/0.07-1.33	26/0.07-1.33	26/0.07-1.33
	X axis rapid traverse speed	mm/min	2300	2300	2300
	Z axis rapid traverse speed	mm/min	4000	4000	4000
	X axis travel	mm	320/420	320/420	320/420
	Z axis travel	mm	1350/2850	1350/2850	1350/2850
Tailstock	Tailstock quill diameter	mm	100	100	100
	Tailstock quill taper	-	MT#5	MT#5	MT#5
	Tailstock quill travel	mm	250	250	250
Motors	Main spindle motor	kW	11	11	11
	Rapid traverse motor	kW	0.3	0.3	0.3
	Coolant pump motor	kW	0.125	0.125	0.125
Thread	Metric thread grade/range	mm	52/1-24	52/1-24	52/1-24
	Inch thread grade/range	T.P.I.	40/2-28	40/2-28	40/2-28
Dimensions	Width x Height	mm	1500X1500	1500X1500	1650X1500
	Length	mm	3700/5200	3700/5200	3700/5200
Weight	Net weight	T	4.0/5.2	4.3/5.5	4.5/5.7

Details Display
Packaging & Shipping
packing shaping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have Company Profile
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
