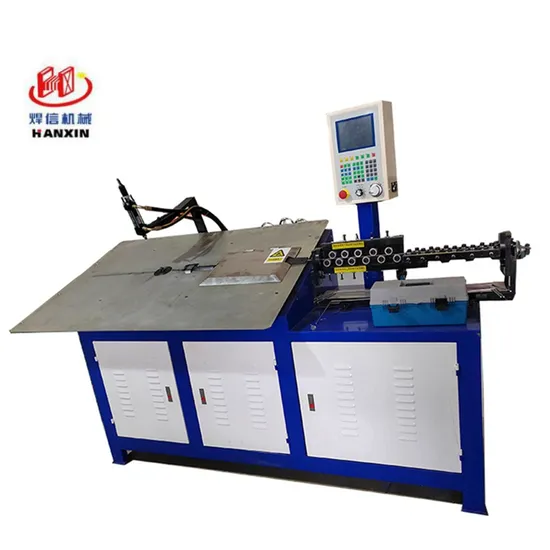

Automatic Steel Iron Metal Hook Bender 2D CNC Wire Bending Machine

Product Description

Product Description
Automatic Stainless Steel bender Hook 2d cnc Wire Bending Machine is mainly
used for bending and forming various metal wire into different shape in two-dimensional.
The wire feeding and rotary bending system both adopt servo motor,significantly improves the precision of the product, and increases the speed and flexibility of machine effectively,furthermore greatly improves the production efficiency.
According to the characteristics of wire processing, various kinds and shapes,we specially design the controlling system with a memory storage function,which can save more than 100sets of processing program for different products, can optionally select any one of them when needed.
Main Features of Automatic Stainless Steel bender Hook 2d cnc Wire Bending Machine:
1.A full range of CNC Programmable wire bending machines for two-dimensional wire bending and forming, is manufactured according to European machine standards;
2.Heavy duty mechanical structures and minimum setup requirements due to reasonably design.
3.Friendly man-machine interface, user friendly programming, easy to operate.
4.Two groups of strong roller subassemblies powered with a servomotor ensure accurate wire feeding and excellent straightening.
5.Automatic wire straightening, feeding, forming and recording the amount.The wire product size and parameters and presetting quantity,can also change and modify during producing.
6.Available for forming and bending different diameter of steel wire,iron wire, stainless steel wire, copper and aluminum wire,also other metals,which shape is round, flat, square, hexagonal, etc.Widely used in the industry of wire products, fan nets, handicrafts, lampshades etc.
Detailed Photos

Product Parameters

Model No.	2-6MM	3-8MM
Main Parameters
Input Voltage	220V,380---415----480V, 50/60Hz, AC,3-Phase.
Wire Diameter Range	2-6MM	3-8MM
Max Wire Feeding Instruction Value	10000MM	10000MM
Mini Wire Feeding Instruction Value	0.01MM	0.01MM
Max Wire Feeding Speed	70M/Min	50M/Min
Wire Feeding Accuracy	Within 0.2mm	Within 0.2mm
Max Bending Speed	100Turns/Min	100Turns/Min
Bending Accuracy	Within 0.5mm	Within 0.5mm
Machine Dimension	L:280*W:90*H:170cm	L:370*W:120*H:180cm
Machine Weight	950KG	1200KG
