GSK Siemens Bt40 Big Metal CNC Milling Machine Vmc1060 3 Axis / 4 Axis

Product Description

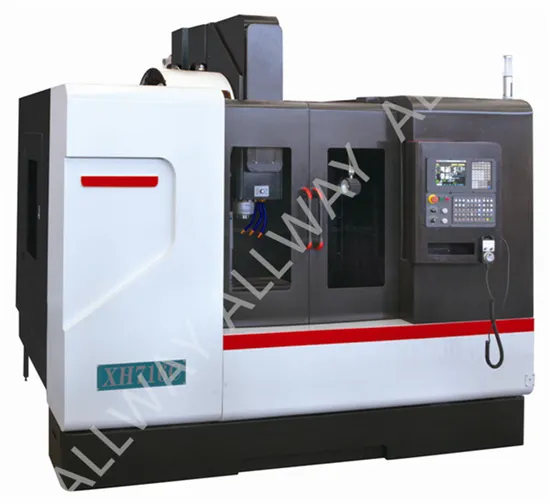

GSK Siemens Bt40 Big Metal CNC Milling Machine Vmc1060 3 Axis / 4 Axis XHS716C(L),VMC1060,VMC1160,VMC1260
Advantage:
L:means X travel is 1200mm;
XHS716C: linear guides; large span,high rigidity,mixed type 4 guide rails;
XH716C: box way; large span,high rigidity,4 guide rails pedestal;
1.Product introduction and use
X, Y, Z 3-axis servo direct connects control half closed loop of vertical machining center, Three axes are 45 # linear guideway, with features: high speed, high rigidity, low friction, low noise, low temperature rise change, Spindle is driven by servo motor through the synchronous belt.Can be achieved a variety of complex parts such like disc, plate, shell, CAM, mold, can complete drilling, milling, boring, expanding and reaming, rigidity tapping and other process, suitable for workpieces of many varieties, medium and small batch production, can meet for parts processing of complex, high precision.Can be equipped with the fourth axis rotary table, used for special workpeice processing.
2. structure feature
X,Y,Z axis are 45 # linear guideway, with features:high speed, high rigidity, low friction, low noise, low temperature rise change,with automatic forced lubrication, improve the accuracy of machine tool life
3.STANDARD CONFIGRATION:
1)spindle unit 60-8000rpm from Taiwan. 60-8000rpm;
2)Spindle motor:servo 7.5KW(36NM) :7.5KW(36N.M)
3)BT40 arm type 24 tools A.T.C.capacity domestic. 24;(XKS716C without)
4)external cooling system(pipe,chip tray,tank,pump) (,,,);
5)Manual removal chip;
6)air gun for clean
7)ball screw from Taiwan.
8) centralized automatic oil lubrication; ;
9) FANUC 0i MF5;
4.Main technical parameters

Specification			unit	value
Spindle		Taper		BT40/BT50
		Pullstud		GB/T10944.3-JF40-45(45 degree)
				GB/T10944.3-JF50-45(45 degree)
		Speed	r/min	60-8000	BT40
				60-6000	BT50
		Spindle nose to work table	mm	150-850	BT40
				100-800	BT50
		Spindle center to column guideway face	mm	682
Table		Table size	mm	1300*600
		T-slot No./width/distance	mm	5-18*120
		Max. loading of table	Kg	800
guideway		Type		3 direction linear guideway
Ball screw		X-axis	mm	40*12
		Y-axis	mm	40*12
		Z-axis	mm	40*12
Travel		X-axis	mm	XHS716C:1000 XHS716CL:1200
		Y-axis	mm	600
		Z-axis	mm	700
Moving		Rapid moving of X	m/min	24
		Rapid moving of Y	m/min	24
		Rapid moving of Z	m/min	18
Tool magazine		type		Umbrella
		Tool number		24T
		Max. diameter of tools	mm	Ø80/Ø150
		Max. length of tools	mm	300
		Max. weight of tools	kg	8
		Speed of changing tool(tool to tool)	s	7
cooling		Cooling pump power	w	530
		Cooling flow	L/min	40
		Cooling tank volume	L	240
Lubrication type				auto
Position accuracy of X/Y/Z			mm	0.018/0.010/0.010
Re-position accuracy			mm	0.012/0.006/0.006
Power type	AC voltage		V	3 380V±10%
	frequency		HZ	50Hz±10%
Capacitance			kva	18
Air pressure			MPa	0.5-0.7
Weight			Kg	6600
Overall dimension (L*W*H)			mm	3400×2300×3100mm

5.OPTIONAL CONFIGURATION:
1)FAUNC 0i MF1, Mitsubishi, Siemens,GSK,and others
2) Taiwan BT50 spindle.
3)servo spindle power 11KW.
4) Umbrella magazine with 16 tools capacity from Taiwan16;
5) coolant through spindle hollow,annular spray high speed spindle., ,;
6)oil cooling device;
7) Chain type auto chip conveyor ;
8)The 4th-axis,(it depends on the dimensions of your workpiece ), for example :
a) Taiwan MRNC-255;
b) TTS-255 manual tailstock ,
c) Chuck Ø200 and chuck seat Ø200,
ALLWAY MACHINERY:
