Electrostatic Conductive ESD Flooring Tiles in Vinyl for Data Center

Product Description

Product Description Electrostatic Discharge (ESD) flooring is also known as anti-static flooring, comes with anti-static performance (static-dissipative or conductive), and protects electronics from damage caused by static electricity.

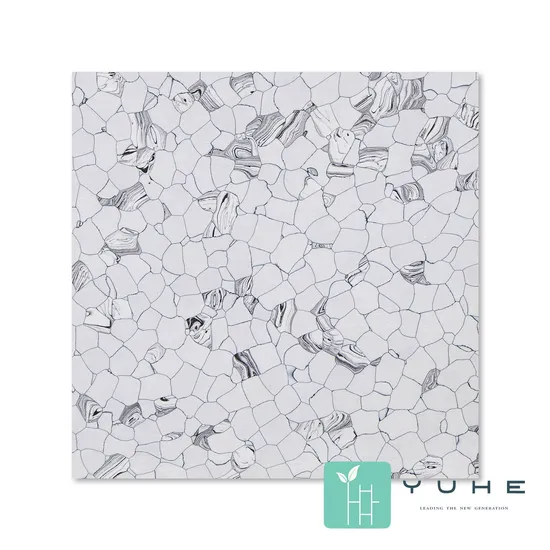

The ESD flooring tiles are of high density, non-porous natural organic tile visual. They're manufactured by an extrusion process, mixing and pressing the 100% virgin PVC granules with carbon (graphite) fibers, calcium carbonates, DOPT plasticizer, Titanium dioxide white paint, etc. under proper pressure and temperature. Conductive elements are distributed throughout the flooring material, Thus they give ESD floors electrical conductivity, create an electrical pathway from the walking surface to the ground, and guarantee a permanent ESD performance.
ESD vinyl flooring tiles are the choice of professionals for controlling electrostatic discharge in clean rooms, electronics manufacturing, computer rooms, repair facilities, or anywhere static-sensitive components are being used or manufactured.
ESD Tile Sizes
The popular and standard size is 600×600mm, 610x610mm, 900×900mm.
The thickness of the tiles is mainly 2.0mm, 2.5mm, 3.0mm.
Weight: 3980g/m2 (2.0mm Thickness)
Features
Low TVOC emissions
Meet FloorScore®
Permanent anti-static properties
Outstanding abrasion, scratch, stain, water, chemical, fire, skid, and light resistance
High durability, easy to clean and maintain
Excellent dimension stability
Antibacterial and fungicidal
Various patterns and colors
Product Parameters Technical data

Item	Standard	Data
Electrical Resistance(Ω)	SJ/T11236-2020 EN1081	Conductive	Dissipative
		1.0x 10E4 - 1.0 x 10E6 ohms	1.0 x 10E6 to 1.0 x 10E9 ohms
Dimensional Stability(%)	ASTM F2199:09(2014) ISO 23999-2018	0.05%
Starting Voltage	SJ/T 10694-2006 EN 1815	IVI < 100V < 2KV
	AATCC-134	50 V	100 V
Static Decay(s)	GJB3007A-2009	≤ 2 sec
	Federal Test Method 1018 Method 4046	0.01 sec	0.01 sec
Wear Resistance(1000r)	EN 660-2	Class P
	SJ/T11236-2020	≤ 0.020 g/cm2
Fire Resistance	SJ/T11236-2020	FV-0
	GB8624-2012	B1(B-s1, t0)
	ASTM E648-17	Class I
	EN13501-1	Bfl - s1
Slip Resistance Wet	DIN 51130	R9
Residual Indentation(mm)	GB/T4085-2015	≤ 0.15 ≤ IR ≤ 0.40mm
	ISO 24343-1:2012	0.03mm
Color Fastness	ISO 105-B02	≥ 6
Chemical Products Resistance	EN ISO 26987: 2012	OK
Toxic Testing	GB 18586-2001 EN 71-3	OK
TVOC After 28 Days(μg/m³)	ISO 16000-3	< 10 μg/m³

Our Advantages 1. Advanced Manufacturing
Full-automated production lines to ensure higher production capacity and efficiency.
The longest-tempering production lines in China to control dimensional stability effectively.
2. Good-quality environmental-friendly raw material
We use DOTP plasticizer for ESD PVC flooring.
Dioctyl terephthalate commonly abbreviated DOTP or DEHT. It is a non-phthalate plasticizer that is considered safer than ortho-phthalate plasticizers due to its excellent toxicological profile.
The product does not contain carcinogens such as benzene and heavy metals such as lead. And it's of low TVOC emission.
3. R & D Strength Patents in production process optimization.
We have an independent testing laboratory with appropriate testing instruments and equipment.
Testing and calibration are performed using USA/EU/JAPAN/CHINA standard methods. So we can produce ESD vinyl flooring products in compliance with different standards.
We have TVOC, RoHS, and SGS certificates contributing to good indoor air quality (IAQ) for durable and sustainable static vinyl flooring tiles. We implement a pretty good color and size management solution.
Wear resistance reaches P class in all ESD vinyl flooring series.
We're proud to complete vinyl flooring projects for Flex, BOE, Huawei, Foxconn, Samsung, Gree, Mindray, etc. in China.
Packaging & Shipping
Certifications

---
