CNC Wood Router Manufacturer Wood Cabinet Door Making Atc CNC Router Wood Engraving Machine

Product Description

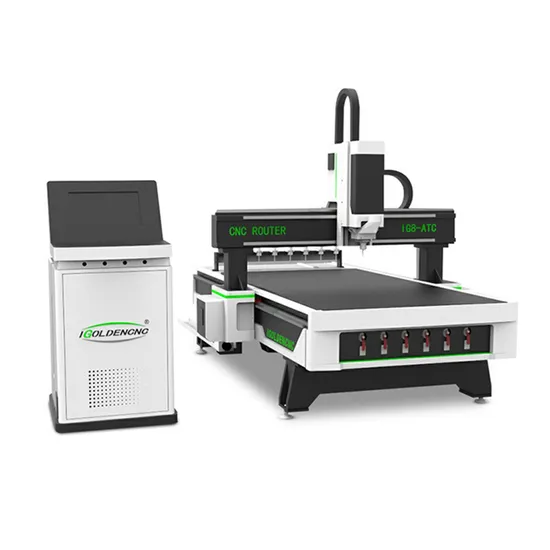

CNC Wood Router Manufacturer Wood cabinet door making ATC CNC router wood engraving machine

Features: 1. Tools can be changed automatically in the stage of processing, which means time saving and working efficiency promoting. 2. Equiped with Italy HSD air cooling spindle,and taiwan SYNTEC control system, it's easier to learn and master the machine. 3. All the machine is allowed to be customized just according to your own requirements.for example, the working size can be designed to large or smaller, tools storage can select with carousel tool changer type, or the rotary device is supported to be installed on the point you want to put on the machine, etc.

Description	Parameters
Structure	Seamless steel welded heavy body
Table	1300*2500*200mm
XYZ working size	XY axis is helical rack and gear ,Z axis ball screw
XYZ transmission	Famous taiwan hiwin line 25mm square guide way
Spindle	9KW ATC HSD aircooled spindle with drill unite 9
Spindle collet	ER32
Inverter	Well known china fuling 11kw
Motor	Japan YASKWA motors 850W
Driver	Japan YASKWA drivers
Controller system	Taiwan syntec controller srstem
Voltage	220v/380v,50/60H
Software	Artcam
Router bits	20pcs for free
Vacuum pump	7.5kw air cooling
Packing weight	2200kg

Sample & Application
Packaging & Shipping
Company Information
Jinan iGolden CNC Equipment Co.,Ltd. is a R&D,manufacturing,sales integration company that specializing in cnc router, laser engraving and cutting machine, plasma cutting machine, cutting plotter,etc.The main configuration all adopt top parts which imported from Italy, Japan,Germany,etc. And welcome to visit https://igoldencnc.en.made-in-china.com for more choices. All of our machines have passed with the following certificate.

---
