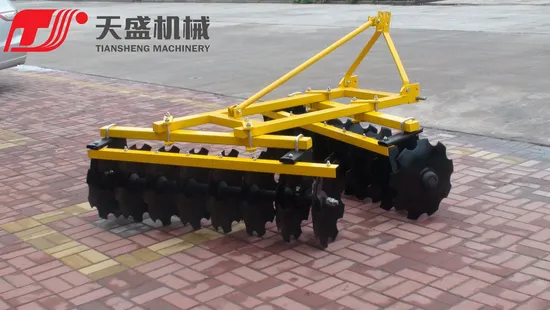

New Farming Agricultural Machinery 1bqx-1.5 5mn Spring Steel Light Duty Disc Harrow

Product Description

Product Description
SHANDONG TIANSHENG MACHINERY SCIENCE AND TECHNOLOGY CO.,LTD
------The drafting Unit of the Chinese Standard For Disc Harrows And Disc Ploughs

The series Light-duty Disc Harrow frame are made of qualified steel tube, Their structures are simple and reasonable, strong and durable, convenient to operate, easy to maintain and efficient in pulverizing and penetrating into the soil and leaves the land with a smooth, even tilth. All these satisfy the agricultural requirements of intensive cultivation.
The 1BQX series suspension Light-duty Disc Harrow's front and rear gangs are all assembled with scalloped disc, could be used with from 12HP to 80HP type tractors.
The 1BQX series Light-duty Disc Harrow are suitable for pulverized and loosening clods after ploughing and for planning the land before sowing on cultivated land. The machines can make soil and fertilizer mix up, and clear away the stump of plants on light or medium soil and preparing seed bed for planting.

Model	Unit	1BQX-1.1	1BQX-1.3	1BQX-1.5	1BQX-1.7	1BQX-1.9	1BQX-2.3
Working width	m	1.1	1.3	1.5	1.7	1.9	2.3
Working depth	mm	80-120	80-120	80-120	80-120	80-120	80-120
No. of discs	pcs	12	14	16	18	20	24
Disc diameter	mm	460	460	460	460	460	460
Weight	kg	200	220	240	260	310	360
Tractor power	hp	12-20	15-25	25-35	30-35	35-45	50-60

Detailed Photos

Company Profile
After Sales Service
All products enjoy 12 months warranty period. The warranty period is calcualted from the date of bill of lading .For the defect of material or workmanship has occurred in normal operation, The defective parts will be repaired or replaced free of charge. The guarantee parts will be offered to you in two ways.for the urgent request parts, We will ship the spare parts by international courier, The client will assure the courier expense. For the regular claim spare parts, we will ship them together with next order. We provide our clients with genuine spare parts with the highest quality,exact fitness .If needs,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately. We can also provide training services to different users. FAQ
1.Q: Full price list for these products
A: If you need the price list for these products, please notify the product model so that I can quote you accordingly. Please understand we have a very wide product range, we don't usually offer full products price list.
2. Q: Business terms
A: Shipment time: 25-40days after your payment
Shipment: By sea
Loading port: Qingdao port, China
Destination port: ...To be advised
Payment: T/T, L/C
Warranty: 1 year
3.Q:How can I order from you?
A: Please send us your enquiry list; we will reply you within two working days.
4.Q:If the finger I look for are not in your catalogue, what should I do?
A: We can develop it according to your drawing or sample.

Due to the limited number of pictures uploaded,we have many products that are not on display.
All products are independently developed and manufactured by us.
If you are interested in our factory or our products,feel free to contact me.

---
