High temperature resistance three phase ac electric motor for Fire-Fighting and Smoke-Exhaust Fan15kw/20HP 8P 200L-8

Product Description

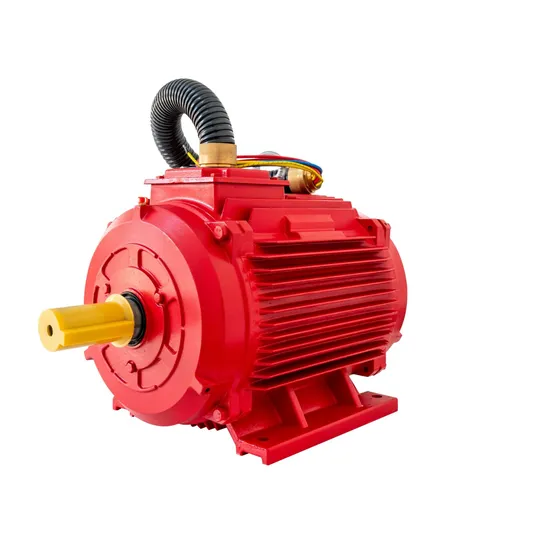

High temperature smoke Fire Fan Motor

The mounting dimensions of the IE1 - IE4 high - temperature series three - phase asynchronous motors comply with the IEC 60034 standard. Specifically developed and designed for high - temperature environments, this series of motors can meet different temperature requirements of users. They can operate normally and continuously in an ambient temperature of up to 100°C, and can run for 2 hours in environments of 250°C, 300°C, and 400°C, meeting the requirements of national fire - fighting motors. They are especially widely used in ventilation equipment.Product Parameters

High Temperature250ºC/2HRS 300ºC/2HRS 400ºC/2HRS Smoke Fire Fan Motors
2P synchro-speed 3000r/min			4P synchro-speed 1500r/min			6P synchro-speed 1000r/min			8P synchro-speed 750r/min
TYPE	Kw	HP	TYPE	Kw	HP	TYPE	Kw	HP	TYPE	Kw	HP
711-2	0.37	0.5	711-4	0.25	0.33	711-6	0.18	0.24	801-8	0.18	0.24
712-2	0.55	0.75	712-4	0.37	0.5	712-6	0.25	0.33	802-8	0.25	0.33
801-2	0.75	1	801-4	0.55	0.75	801-6	0.37	0.5	90S-8	0.37	0.5
802-2	1.1	1.5	802-4	0.75	1	802-6	0.55	0.75	90L-8	0.55	0.75
90S-2	1.5	2	90S-4	1.1	1.5	90S-6	0.75	1	100L1-8	0.75	1
90L-2	2.2	3	90L-4	1.5	2	90L-6	1.1	1.5	100L2-8	1.1	1.5
100L-2	3	4	100L1-4	2.2	3	100L-6	1.5	2	112M-8	1.5	2
112M-2	4	5.5	100L2-4	3	4	112M-6	2.2	3	132S-8	2.2	3
132S1-2	5.5	7.5	112M-4	4	5.5	132S-6	3	4	132M-8	3	4
132S2-2	7.5	10	132S-4	5.5	7.5	132M1-6	4	5.5	160M1-8	4	5.5
160M1-2	11	15	132M-4	7.5	10	132M2-6	5.5	7.5	160M2-8	5.5	7.5
160M2-2	15	20	160M-4	11	15	160M-6	7.5	10	160L-8	7.5	10
160L-2	18.5	25	160L-4	15	20	160L-6	11	15	180L-8	11	15
180M-2	22	30	180M-4	18.5	25	180L-6	15	20	200L-8	15	20
200L1-2	30	40	180L-4	22	30	200L1-6	18.5	25	225S-8	18.5	25
200L2-2	37	50	200L-4	30	40	200L2-6	22	30	225M-8	22	30
225M-2	45	60	225S-4	37	50	225M-6	30	40	250M-8	30	40
250M-2	55	75	225M-4	45	60	250M-6	37	50	280S-8	37	50
280S-2	75	100	250M-4	55	75	280S-6	45	60	280M-8	45	60
280M-2	90	125	280S-4	75	100	280M-6	55	75	315S-8	55	75
315S-2	110	150	280M-4	90	125	315S-6	75	100	315M-8	75	100
315M-2	132	180	315S-4	110	150	315M-6	90	125	315L1-8	90	125
315L1-2	160	215	315M-4	132	180	315L1-6	110	150	315L2-8	110	150
315L2-2	200	270	315L1-4	160	215	315L2-6	132	180	355M1-8	132	180
355M-2	250	340	315L2-4	200	270	355M1-6	160	215	355M2-8	160	215
355L1-2	315	430	355M-4	250	340	355M2-6	200	270	355L-8	200	270
355L2-2	355	480	355L1-4	315	430	355L-6	250	340
			355L2-4	355	480

Main applications
Suitable for construction machinery, mining equipment, large agricultural equipment fans, pumps, compressors and other industrial equipment

Our Service

Company Profile

Test Center

Our new laboratory has a strong experimental capacity, including three-phase AC asynchronous motor, variable frequency adjustment motor, AC synchronous motor, single-phase asynchronous motor. Power range :0.25-500KW, frequency :0-500Hz. Can test all motor performance items, high precision and simple control.Exhibition
Certifications
FAQ
Q Are you a factory or trading company?A We are manufacturer located in FuZhou,Fujian,China Q Do we make special custom motors?A Yes sure Q What is your delivery time?A Normally, we can deliver the goods within one month. If we need to expedite the delivery, we can deliver the goods within 7-15 days Q What's our minimum order quantity?A Minimum order for 1 set Q How long is our shelf life?A 12 months Q Can I get a lower price if I order large quantities?A Yes, cheaper prices with more bigger quantity orders. Q How can you guarantee the production quality ?A We checked strictly before sending, will produce free of charge if it is quality problem from our side

---
