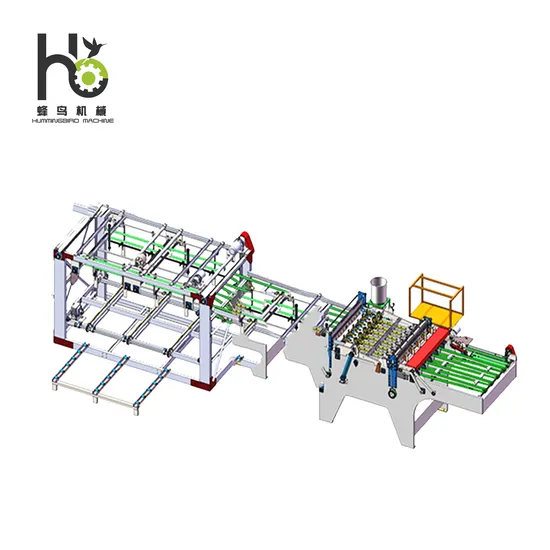

Core Joining Machine Is Mainly Used for Horizontal Splicing of Peeled Middle Boards Such as Plywood, Multilayer Board, LVL, Floor Substrate

Product Description

Veneer Composer Machine features simple operation and is labor - saving. It can achieve one - time automation from feeding, correction, cutting, glue distribution, splicing, stacking to pushing. The rapid cooling system enables the hot - melt adhesive line to stick to the bottom of the core veneer more evenly.High - precision servo counting results in less cutting error of finished products.After using the horizontal splicing machine, it will save a great amount of labor (saving about 70% of blank - assembling workers, about 80% of broad - repairing workers, and about 50% of putty - scraping workers), and improve the product quality and grade of the finished broad.
Company Profile
Shandong hummingbird Machinery Co., LTD, located in Linyi city, Shandong province, has more than 20 years of experience in machinery production and improvement.The company established Hummingbird International Trading Company in order to expand the international market. After several years of efforts, the company's main products and equipment have been exported to Southeast Asia, the Middle East, South America, Africa and other markets.Looking forward to working with you to create, share the future!
Product Parameters
Servo horizontal splicing machine

Motor ltem	Power	QTY	Motor ltem	Power	QTY
Front drive	3kw	1	Push board transmission	1.1KW	2
Rear drive	3kw	1	Electromagnetic clutch		1
Front cutting	2.3kw	1	Refrigeration device	1.5P	1
Rear cutting	2.3kw	1	Dimensions	4.2M*2.4M*2.2M 4.5M*2.0M*2.5M
Lift	2.2kw-6	1	Total weight	about6.5T
Intermediate transfer	1.5kw	1	Total power	18KM
Drop Board transfer	1.1kw	1	Machine installation size	13M*3.1M*2.5M

Horizontal and vertical splicing machine

Motor ltem	Power	QTY	Motor ltem	Power	QTY
Horizontal Splicing front drive	3kw	1	Intermediate transfer trolley	2.3KW	1
Horizontal Splicing rear drive	3kw	1	Palletizing trolley	2.3KW	1
Front cutting	2.3kw	1	Push board transmission	1.1KW	2
Rear cutting	2.3kw	1	Electromagnetic clutch		2
Vertical Splicing front drive	3kw	1	Refrigeration device	1.5P	2
Vertical Splicing rear drive	3kw	1	Dimensions	4.2M*2.4M*2.2M/sets 4.5M*2.0M*2.5M
Vertical cutting	5.5kw	1	Total weight	about10T
Lift	2.2kw-6	1	Total power	35.6KW
Intermediate transfer	1.5kw	1	Machine installation size	11M*7.5M *2.5M

Features
Detail Accessories
Conveyor chain
Advanced control system
Cast aluminum heating plate
Brand synchronous servo
Brand servo drive
Planetary reducer
