Product Description
Product Description

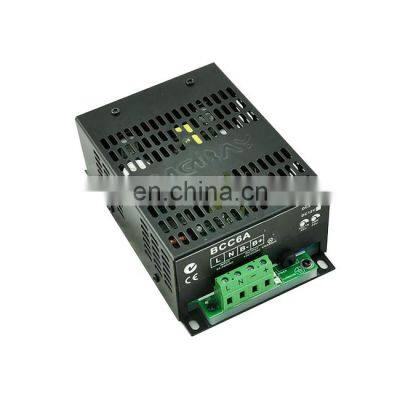

Intelligent Floating Charge BCC6A-12V/ BCC6A-24V Genset Generator Battery ChargerProduct Description Description:This charger is designed for the lead-acid battery used in the engine. It adopts three-stage intelligent control method of constant current fast charge, current limit and turbulent float charge. It can be charged for a long time without damage to the battery, and can maintain the full power state of the battery and ensure the service life of the battery. This charger can be used in parallel with the engine's charging generator, and there is no need to disconnect the charger during engine operation.Features:- With metal casing, good heat dissipation and strong anti-interference ability;- Advanced switching power supply results, wide AC input voltage range;- Three-stage smart charging to automatically maintain battery power;- Short circuit and anti-back protection;- With charging voltage and charging current fine adjustment function;- LED status display.- Optional Types: BCC6A-24V, BCC6A-12VCharging Characteristic Curve: The charger is designed according to the characteristics of the lead-acid battery used in the engine, and adopts a three-stage intelligent control method of constant current fast charging, current limiting, and turbulent floating charging. When the battery voltage is lower than the preset value, it is a constant current charging phase; when the battery voltage is higher than the preset value, the charging current decreases as the battery voltage increases, and enters the current limiting charging phase; the battery voltage gradually rises to a predetermined value. Constant voltage value, when the charging current is less than 0.3A, the charging indicator is off, and the floating charging phase is entered. The subsequent charging current only counteracts the self-discharge of the battery, maintaining the battery in a fully charged state. There is no need to disconnect the charger during this process, which has no effect on battery life.Parameters of BCC6A-12V:Input Parameters:- Nominal input voltage: AC95V to 280V continuous power supply- Maximum input voltage: AC90V to 305V continuous power supply- Input AC frequency: 50Hz/60Hz- Maximum input current: 2A- Efficiency: >82%Output Parameters:- Output current range: 4-6A, accuracy: ± 2%- Charging current: 6A- Maximum output power: 85W- Minimum output voltage: 7.5V- No-load output voltage: 13.8V, accuracy: ±1%Insulation Performance:- Insulation resistance: Insulation resistance RL≥50MΩ under the condition of input and output, input and casing are both DC500V for 1min.- Insulation voltage: input and output, input and case are AC1500V 50Hz 1min, leakage current IL≤3.5mA.Operating Environment:- Operating Temperature: -30 to 55℃- Storage Temperature: -40 to 85℃- Operating Humidity: 10%RH to 95%RH (No Condensation)Other Parameters: - Dimension: 143 x 96 x 55cm - Hole Spacing: 132 x 75mm - Weight: 0.7kg Parameters of BCC6A-24V:Input Parameters:- Nominal input voltage: AC95V to 280V continuous power supply- Maximum input voltage: AC90V to 305V continuous power supply- Input AC frequency: 50Hz/60Hz- Maximum input current: 2A- Efficiency: >82%Output Parameters:- Output current range: 2-3A, accuracy: ± 2%- Charging current: 3A- Maximum output power: 85W- Minimum output voltage: 7.5V- No-load output voltage: 27.6V, accuracy: ±1%Insulation Performance:- Insulation resistance: Insulation resistance RL≥50MΩ under the condition of input and output, input and casing are both DC500V for 1min.- Insulation voltage: input and output, input and case are AC1500V 50Hz 1min, leakage current IL≤3.5mA.Operating Environment:- Operating Temperature: -30 to 55℃- Storage Temperature: -40 to 85℃- Operating Humidity: 10%RH to 95%RH (No Condensation)Other Parameters: - Dimension: 143 x 96 x 55cm - Hole Spacing: 132 x 75mm - Weight: 0.7kg Package Included:- 1 x Genset Intelligent Battery ChargerNote: Optional Types: BCC6A-24V, BCC6A-12V. Please tell us the type you want when purchasing. Thank you! Packaging & ShippingPackage: Normally we use the standard exporting packaging. We also can according to clients' request . Shipping : 1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier we are co-operating at present.2. By Air: Delivery from the Shanghai airport to customers’ destination city air port.3. By Sea: Delivery from the Shanghai sea port .Company InformationTZT has been speciliazing in Business & Industry,Hobbies & Toys,CNC Products and Health care supplies for over 5 years.We committed to enhance customer satisfaction by continually improving the process with a vision of expertise in the field. Aiming to provide high quanlity products and great service for buyer,we are strict on product quanlity control and offer instant communication service.Welcome to contact us!Our Advantages:- Source only the best consumer goods and ensure the highest quality.- Streamline the buying and payment process, and make it as easy as possible.- Help the customers all over the world discover products and manufacturers in China.- The Shortest order processed time and speed delivery FAQQ1. Can I have a sample order?A: Yes, we welcome sample order to test and check quality. Q2. What about the lead time?A: Samples arrived often need 3-5 days. Q3. Do you have any MOQ (minimum order quality)limit?A: Low MOQ, 1pc for sample checking is available. Q4. How do you ship the goods and how long does it take to arrive?A: We often ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional. Q5. How to proceed an order?A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions. Thirdly, customers confirms the samples and places deposit for formal order. Finally, We arrange the production. Q6. Is it acceptable to print my logo on the product?A: Yes. Please inform us formally before our product and confirm the design firstly based on our sample. Q7: Do you offer guarantee for the products?A: Yes, we offer one-year warranty for our products. Q8: How to deal with the flaw?A: Our products are produced in strict quality control system and the percent of pass is often maintained over 99.8%Contact usPlease do not hesitate to contact me if you need any further informationWhatsapp/Tel/Wechat: 8619902906050Web: Address: 5H,Buidling B,Yueshang Center, Longhua Area,Shenzhen, China (Mainland)
>>
