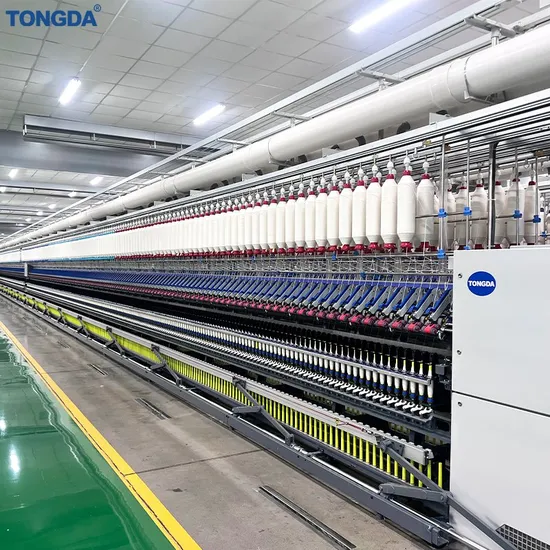

Tongda Fa1569 Ring Spinning Machine for Cotton Yarn Spinning Line

Product Description

Product display and advantages
Main Feature :
Ring spinning machine FA1569 boasts quick installation, doffing, and dual suction technologies at both the headstock and tailstock. It also features intelligent spinning, reducing energy consumption by 10% compared to current rings. This series of super long ring spinning frames caters to customer demands for long, automated, easy-to-control, and labor-saving equipment, specially designed for high-quality production. •Higher Performance Ring Spinning Machine Since 1952 From TONGDA China
•Lasted technology-Electric Cam system for lifting & Oil bathgear system for driving.
•High Speed & Low Power consumption 16 Steps Inverter drive system
•Machine Speed up to12000-25000 RPM
•Higher CSP & Low IPI Efficiency up to 90-93% Nos Of Spindles: 612-1824
•High Quality Precession & Fittings For Smoothly Operationwith low Noisy
Product Display
SUPER LONG
Spindle unit from 612 to 1824spindles,prolonged by unit every 36 spindles each. NEW TYPE
OVER-PROLONGATION FRAME One-piece intermediate frame,and high-precision spindle rail can meet the requirement of high speed spinning
QUICK-INSTALLING TECHNOLOGY
Quick-installing can be realized by positioned pin and hole. ADJUSTMENT FREE FOR COLUMN OF RING LIFT IT IS A DOMESTIC INNOVATION DUAL-SUCTIONING AT BOTH HEADSTOCK AND
TAILSTOCK
NEW TYPE OVER-PRSYNCHRONIZING TECHNOLOGYFOR INTERMEDIATE DRIVE FOR BOTTOM ROLLEROLONGATION FRAME
To be suitable for spinning different category of
yarns. QUICK-DOFFING TECHNOLOGY Doffing
duration 3 mins
High Speed Package
The highest speed for ring spinning equipped with TONGDA TD8100 Spindle, Bearing steel ring cup PG1-3854,TONGDA super light bobbin spindle speed can reach 25000 rpm plus Production capacity increasing 10% More Energy consumption will be reduced by 7%-10% Low noise level which is 3-5dB lower than othermachines
TD8100 Double elasticity spindle
1.Due to special double elasticity structure design, under high-speed spinning conditions, the spindle tube has multi-level shock-absorbing and noise-reducing functions.
2.Multi-level shock absorption can effectively reduce the pressure on the bearings and extend life time of the spindles, under high-speed spinning conditions.
3.Under the same working conditions, compare with other types of spindles, energy consumption is reduced by
7%-10% with TD8100.
4.At a mechanical speed of 25,000rpm, after testing, the noise of this spindle is 3-5dB lower than other type of spindles.
5. Spindle wharve diameters are available in various specifications: 18.5, 19, 19.5, 20.5
6. Equipped with suitable packages, spindle speed can reach 25000 rpm Plus.
7. Can be equipped with new model yarn grippers.
8. A special sealing structure(patent) is installed with high-quality lubricating oil, and the oil changing cycle is more than 12 months.
Main technical parameters

Spindle gauge	70
Spindle number	from 612-1824.expanded by unit 36 spindles each
Roller	Φ27XΦ27XΦ27orΦ27XΦ30XΦ27 box length 6 spindles
Lift	160,180(with aluminum spindle)
Ring diameter mm	38,40,42,45(PG type)
Suitable for fiber length	less than 40mm,40-51mm.51-60mm
Suitable for yarn density Tex(Ne)	36.4-4.86(16-120)
Suitable for Twist(turns per meter)	230-3000(Wharf diameter 19)
Twist direction	Z with singletension disc,Z and S with dual tension disc
Draft	Total draft 10-60(standard),total draft10-80(optional)
Spindle speed r/min	12000-25000(mechanical speed with inverter)
Spinning driving	driving by disc
Drafting type	3-lineroller,cradle apron(short)plus bottom apron (long).top weighting
Lifting type of ring plate	arm by electronic lifting
Twisting type	by electronic twisting
Doffing type	Auto-doffing
Bobbin lifting rate when doffing	>99.5%
Tube inserting rate	100%
None-endbreak rate when auto-doffing finished	≥97%(for medium count yarn)
Auto-doffng duration	3 minutes

Parameter Comparison

FA1569	FA506
Spindle number
from 612-1824.expanded by unit 36 spindles each	480 - 516 spindles
Ring diameter
38,40,42,45(PG type)	Φ38,Φ42,Φ45mm
Spindle speed r/min
12000-25000 (mechanical speed with inverter)	12000-22000 (rpm)
Suitable for yarn density Tex(Ne)
36.4-4.86(16-120)	97.2--4.9tex(18--200Ne)
Lift
160,180(with aluminum spindle)	205 180 155mm
Draft
Total draft 10-60(standard),total draft10-80(optional)	10-50

Spindle's performance characteristics
·Extremely stable operation,particularly applicable to high speed
·Less energy consumption, low noise oil and labour saving.yield
increasing
·Long service life, stable performance and better consistency
·Simple and convenient installation use and maintenance.
FAQ
(1) Q: Why Choose Our Company?
A: History: TONGDA Textile Machinery Group was establish in 1952. Now have more than 65 years old history. Main Products: TONGDA Group specializes in design, manufacturing, and marketing of a wide range of Textile machinery, it has seven branch companies, mainly produces ring spinning frame, roving frame, weaving machine (water Jet loom/Air jet loom/rapier Loom), warping machine, quilting machine and nonwoven machine. We provide design for complete line of spinning mill for cotton yarn, polyester yarn, wool yarn, flax/linen yarn, machines including blow room, carding machine, draw frame, roving frame, ring frame, winding machine, open end spinning machine and the air conditioning system and waste collection system for spinning mill. We also provide workshop layout design and trench design, and air pipe layout design.
(2) Q: How's the after-sale service?
A: We offer engineers available to service overseas under merchandiser's supervision and translation.
(3) Q: Are you available for on-the-spot invitation?
A: We do welcome our new and old friends come here to have a visitation. Besides, we would send you our exposition and relative information to promote a face-to-face meeting if you'd like to.
(4) Q: Is the price offered changeable?
A: We offer reasonable price for every client, and the price is changeable according to purchasing amount.
(5) Q: How about the quality?
A: The main subassembly and raw materials are all supplied by large companies. Key parts are research and developed by our own staff. Professional assembly line work and strict quality test system can ensure your high quality requirement.
(6) Q: Are you a manufacturer or Trade Company?
A: We are a professional manufacturer holding our own International Trade Department, for that we can better understand customer's needs and offer a reasonable price.
(7) Q: Product /Quality Guarantee and After Sale Service?
A: 1 year warranty for the International standard. We are work online 24 hours. If you have any questions about our machine you can contact us.
(8) Q: One-stop Service:
A: We have R&D department including more than 100 engineers which are improving and enlarging our supply range.
(9) Q: Certification?
A: TONGDA is an ISO9001, ISO14001, and ISO13485 company. The products are designed to meet the technical standards of 3C and CE. All the products are certified by the Industry Administration Authority. TONGDA will continue to strive to be a stronger leader in the global market of Cotton machinery and Spinning machinery.

---
