All Sizes of Polipropylene Tube for Floor Heating System

Product Description

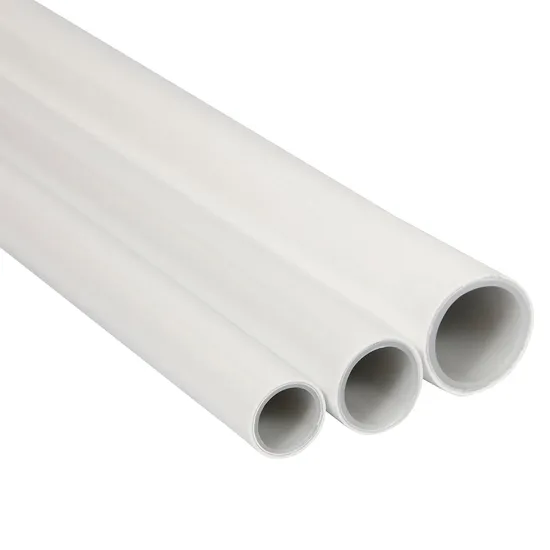

Radiant Floor Heating Pex Al Pex piping/Plastic Water Tube
Product Description
PEX-al-PEX piping is a coextruded crosslinked polyethylene composite pressure pipe with a welded aluminum tube reinforcement between the inner and outer layers. The inner and outer crosslinked polyethylene layers are bonded to the aluminum tube by a melt adhesive.
Product Size:

Product	Size(mm)	OD(mm)	Tolerance(mm)	OD(mm)	Tolerance(mm)
Butt-Weld PEX-AL-PEX	16*2.0	16	+0.3	2.0	+0.2
	20*2.0	20	+0.3	2.0	+0.2
	26*3.0	26	+0.3	3.0	+0.2
Lap-Weld PEX-AL-PEX	16*2.0	16	+0.3	2.0	+0.2
	20*2.0	20	+0.3	2.0	+0.2
	26*3.0	26	+0.3	3.0	+0.2
Other size as client required

Product Characteristics
Easy to bend without rebound
It has the properties of metal pipes and is easy to bend without rebound.
Oxygen Barrier and impermeability
Aluminum layer prevents oxygen from permeating into the pipe
Low dilatation coefficient
Lower thermal dilatation coefficient,improve the dimensional stability of the pipe. The thermal dilatation coefficient is 2.5*10-5m/(m*ºC),which is the 1/6 of PEX pipe.
Product Advantage
• Safety of potable water and long-term reliability• Resistance to corrosion, deposits• Flexibility combined with stiffness to hold its shape• Less linear longitudinal thermal expansion/contraction than standard PEX• Aluminum layer prevents oxygen from permeating into the pipe• No flame used for joining, many fitting and joining options• Durability and toughness to survive job site installations• Lightweight, compact, easy to transport Product Application Area
• Hot- and cold-water plumbing distribution, residential and commercial• Radiant heating and cooling systems (floors, walls, ceilings)• Hydraulic piping and distribution (radiators, fan coils, etc.)• Turf conditioning/pitch heating• Outdoor snow and ice melting system• Chilled water pipingCertifications:
Company Profile
Hebei Ritai Original Pipe Co., Ltd -the core subsidiary company of RITAI GROUP- was founded in 2001. It is one of the plastic pipe manufacturers that first recognized the professionalization and scale production. RITAI GROUP is specialized in researching and developing, production of plastic pipes. We can provide water supply and heating systems for residential and commercial buildings and municipal projects. The company is located in the beautiful seaside city - Qinhuangdao. We have nearly 100 modern production lines. All our products are made of imported high-quality raw material. The main products include pipes and fittings for floor heating systems, water supply and drainage systems, municipal pipelines, etc.
RITAI GROUP has an advanced and perfect quality control system. It has been passed the certification of ISO 9001 (international quality management system) and ISO 14001(environment management system), and OHSAS18001(healthy management system). All the products should be passed the three-level inspection: raw material inspection, production online inspection, and finished products inspection. Products have been tested and approved by the National Laboratory. To promote industry-standard development, we actively initiated and participated in the compilation of national and local technical standards and construction specifications; simultaneously. The company always stands at the top of the plastic pipe industry through continuous research and improved production process. The company has the National Class A Construction Qualification and a professional and high-quality construction team.
Relying on advanced pipeline technology, scientific enterprise management, and excellent quality service, our business network has developed rapidly, products have been all over the country and exported overseas. All sectors of society recognize our effects. We have established long-term strategic partnerships with China Railway Construction, China State Construction, Vanke, Sino-Ocean, and other large enterprises. The company's cumulative sales of pipes have exceeded 400 million meters. And products were applied to more than 8000 projects.
Laboratory:
Packaging & Shipping
To save our client's cost, our regular packing is coils of pipes (50m/100m/200m/300m/500m) in PP Bags. Customized packing is also available by request (e.g. carton box).
FAQ
1.Where is your factory located in?Our factory located in Qinhuangdao City, which is only 2.5 hours away from Beijing City by fast train.2.Can you provide us some samples for testing?Ok, no problem . To enable you have a good understanding of our product quality,we can arrange free sample for you testing.3.Which kind of payment terms you usually do?We usually do T/T, But L/C is no problem.4.How about the delivery time?
For small order, 15 days is ok,large order maybe will 30 days.5.Do your factory can provide OEM Services?Yes, we can produce product by customers' special requirement.We have many OEM Customers from Europe and Southeast Asia.

---
