High Safety&Stability Particle Board /Chipboard /OSB and MDF Board Production Line

Product Description

High Safety&Stability Particle Board /Chipboard /OSB and MDF Board Production Line

01:PRODUCT DESCRIPTION
Product Principle
Particle board making machine for making particle board, the full line mainly includes:
Wood chipper/crusher → Flaking → Drying → Screening → Gluing → Forming → Continuous pressing → Hot pressing → Cooling → Sanding → Sizing -Packing.
Step1: Drum chipper for crushing wood and barks and trunks into the certaine size chips;
Step2: Flaking machine for make the small chips into wood strands;
Step3: Drying machine for drying the wet wood strands;
Step4: Vibrating screen for screening big wood strands, suitable strands, and chips;
Step5: Gluing machine for make glue on wood strands and evenly distributed;
Step6: Forming line for uniform distribution of the flakes both lengthwise and crosswise as well as the layer formation of top and middle layer flakes over the cross section of the panel
Step7: Continuous press machine for pre-press particleboard, and make it in a certaine initial strength;Hot press for press particleboard in a high pressure and heating temperature
Step8: Sanding machine for sanding particleboard surface, and make its surface smooth and thickness accurate;

02:FULL PRODUCT PARAMETERS

<1> Drum Chipper
Inlet size	240*750mm(H*W)
Blade quantity	2pcs
Knife roll diameter	800mm
Power	132kw
<2> Ring Chipper
Wood strands thickness	0.4-1.0mm
Capacity	5000-8000kg/h
Knife length	449mm
Power	250kw
<3> Triple Pass Drying Machine
Cpacity	10000kg/h
Original moisture	≤80%
End moisture	2%
Power	440kw
<4> Vibrating screen
Screening cloth	2
Screening area	12 m2
Screening capacity	70m3/h
Power	11kw
<5> Gluing
Capacity	500m3 /per day
<6> Forming machine
Surface forming machine	2 sets
Capacity	2 *45m3/h
Core forming machine	1 sets
Capacity	65m3/h
Forming width	1300mm
Forming thickness	30-120mm
<7> Continuous press
Convey speed	10-30m/min
Working height	1250mm
Belt width	1500mm
Power	75kw
<7> Hot press
Pressure	1200 ton
Hot plate size	2650*1680*120mm
Layers	22
Heating medium	Oil
Heating temperature	≤180ºC
Closing time	10s
<8> Sanding machine
Max sanding width	1300mm
Sanding thickness	3-50mm
Sanding belt size	1350*2800mm

For this production line, it can produce 100000m3 one year.
And we can produced as your capacity requires

03:PRODUCT DETAILS

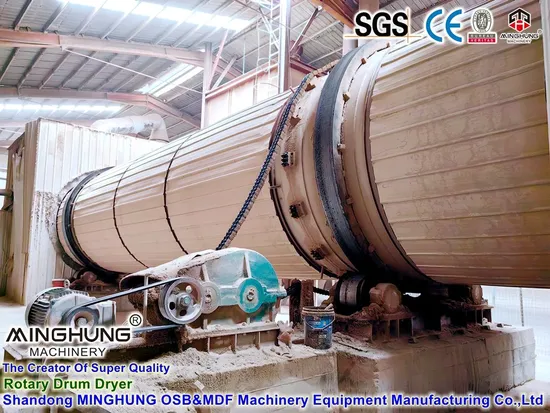

Rotary drum dryer, for drying the wet wood strands/shavings, because their original moisture is high, it is not suitable for making particleboard, therefore, after be dryed by drum dryer, their end moisture will be about 2%, it is suitable and good for making particle board.
Glue blender, For spreading glue on wood strands, seperately spreading glue on surface strands and core strands
Mat forming machine, for spreading glue on wood strands, seperately spreading glue on surface strands and core strands
Continuous pre press machine, for pre pressing the particle board and make it be forming, also discharge inside air.
Multi opening hot press machine, for pressing the particleboard be in required thickness and be solid and strong.

04:PACKAGING&SHIPPING
05:WHY CHOOSE US
1. With many years production experience, we can ensure each osb board machine be suitable, good and strong
2. With advanced production equipment and technology, ensure the whole osb making machine production process fluently, good and correct.
3. With experienced workers, engineers, technicians, to design, improve our machine
4. Insist use good material, parts and accessories, ensure our machine good quality and long life span
5. With good after sales service, make sure you will get quickly response anytime when you meet questions
06: AFTER SALES SERVICE
<1> Machine Installation:
We can send engineers go to install machine, degue, and teach your workers
<2> Warranty:
1 year
<3> Factory layout:
After machine production start, we can make factory layout for you
<4> If meet problem when operation machine
Contact us at the first time, our engineers will help check and solve quickly

Welcome contact us for more information if you are interested

---
