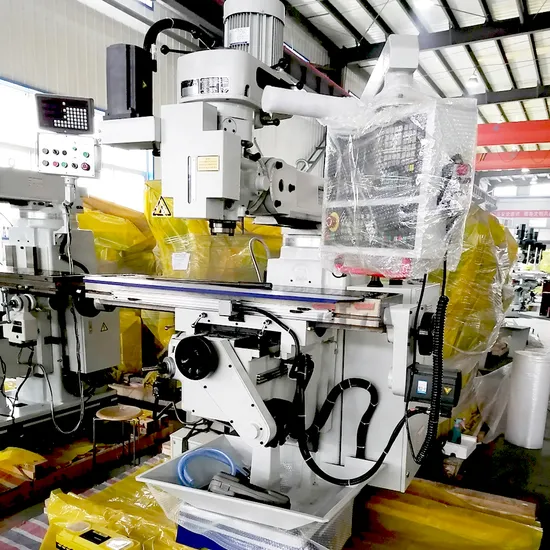

High Precision Xk6325 Automatic CNC Controller Vertical Milling Machine Price

US$13,000.00
1-4 Sets
US$12,000.00
5+ Sets

Basic Info.

Model NO.
XK6325
Type
CNC Milling Machine
Object
Metal
Structure
Lifts
Milling Cutter Type
Vertical Milling Cutter
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
X/Y/Z Axis Travel
750/400/103mm
Worktable Size
254X1370 mm
Motor Power
2.2kw
Weight (Kg)
1400kg
Table Travel (Y) (mm)
400mm
Spindle Taper
R8
Delivery Time
One Month
Voltage
Customized
Range of Spindle Speed(r.p.m)
65-4540
Max. Table Load(Kg)
280 Kg
Name
Fully Automatic CNC Vertical Milling Machine
Transport Package
Wooden Case
Specification
254x1370mm
Trademark
BETA
Origin
Shandong, China
Production Capacity
50 Sets Per Month

Packaging & Delivery

Package Size
190.00cm * 200.00cm * 223.00cm
Package Gross Weight
1400.000kg

Product Description


High precision Xk6325 Automatic CNC controller Vertical Milling Machine Price
Model Unit XK6325 XK6330
Table size mm 254×1370 305×1370
T slots n*mm 3×16 3×16
Table loading kg 280 350
X axis(table longitudinal move)travel mm 750 800
850 900
Y axis(table cross move)travel mm 400 360
Z axis(Quill move)travel mm 103 103
X/Y/Z axis servo motor kw 1 1
Knee vertical travel mm 400 380
Ram travel mm 470 500
Distance from spindle to table mm 0-400 0-380
Spindle speed Atandard:16 steps rpm 50HZ:66-4540
60HZ:80-5440		 50HZ:66-4540
60HZ:80-5440
Optional:Variable 60-4200 60-3600
Spindle taper Standard:R8/Optional:NT40 NT40
Motor power HP 3 5
Head rotating Swiveling degree 90° 90°
Tilting 45° 45°
CNC controller GSK/Siemens GSK/Siemens
Packing size mm 1900×2000×2230 2000×2000×2250
G.W kg 1400 1800

Features:
1.Cast-iron with wide, hardened, plastic-coated rectangular guide ways
2.Powerful main motor with electronic control and shifted gears ensure high torque and wide speed range
3.Cutter head swivel to both sides
4.Automatic central lubrication
5.Mini and economical style, with lower price and widely using
6.Milling head from Taiwan
7.Bearing from NACHI
8.Ball lead screw from Chinese famous brand
9.3-Axis servo motor and 3-axis rapid feed
10.Variable speed milling head for your choice as optional accessories.
