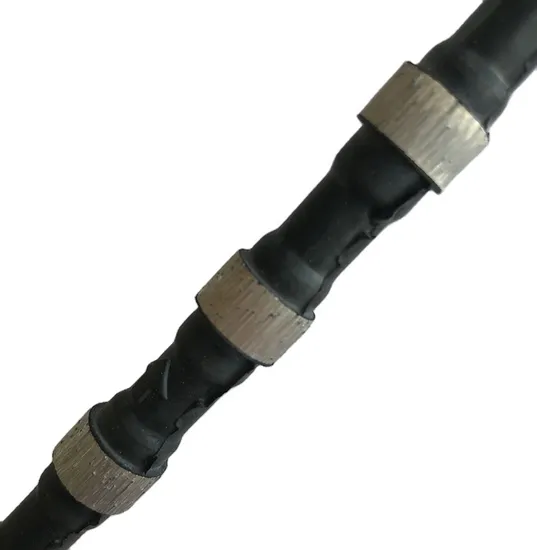

Diamond Wire Saw Rope for Stationary Machine for Ctting Granite Block

US$22.00
10-99 Meters
US$21.00
100+ Meters

Basic Info.

Manufacturing Arts
Sinter
Usage
Stone Cutting
Advantage
High Working Efficiency,Long Lifetime
Beads/Meter
37beads/Meter
Color
Customized
Diameter
8.8mm/8.5/8.2/7.3/6.3mm
Fixing
Plastic
Transport Package
Stardard Export Carton
Trademark
TOP
Origin
Fujian, China
HS Code
82075010
Production Capacity
50000 Meters/Month

Packaging & Delivery

Package Size
15.00cm * 15.00cm * 3.00cm
Package Gross Weight
0.250kg

Product Description

Product Description
Item No. Diameter Fixing Beads/meter Material Sawing Speed (mm/min) Life Time (m2/m) Line Speed (m/s)
PG8.8 8.8mm Plastic 37 Class 1-2 12-20 12-20 28-30
PG8.5 8.5mm Plastic 37 Class 3-4 8-15 10-15 26-28
PG8.2 8.2mm Plastic 37 Class 4-5 7-10 7-10 24-28

Note: Efficiency is measured by down-feed per min.

Attentions for the profiling diamond wire cutting on stationary machines:
1. Regular inspections of diamond wire self rotation and make adjustment in time.
2. Regular inspections of diamond wire abrasive to avoid cut-in-one-side problem happen. Once it happens, make the solution straight way.
3. Regular inspections the joint, as well as the beads of two sides, if they are abrasive badly, replaces them in time.
4. The cable tension of the stationary machines should be controlled within 250-300kg(φ 4-5mmcables).
5. Linear speed is changed according to the different hardness of stones.
Class 1-2 granite: 28-30m/s
Class 3-4 granite: 26-28m/s
Class 5 granite: 24-28m/s
Marble: 30-40m/s
Abrasive stone: 30-35m/s
6. For the new wire, when start to cut, its linear speed should be slower 2-3/s than the standard mentioned above, it is good for sharpen.
7. Water supply is around 15-25L/min.
