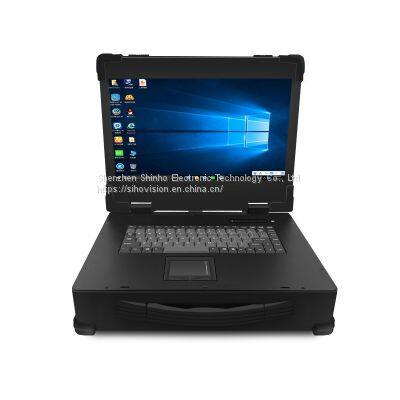

1. 15.6" Upward Portable Industrial Computer 2. Aluminum Alloy Case, High strength cold rolled steel Chassis 3. 15.6" TFT LED, with 1024x768 resolution 4. Integrated with 88keys keyboard and Touchpad 5. Built-in lithium battery (optional). 6. 1*MIC-IN, Line-out , 1*Lan , 4*USB, 1*VGA, 1*HDMI
| Model:SC156 |
| PC |
| CPU | Intel J1800 2.41GHz |
| Memory | 4G DDR3 |
| Hard Drive Capacity | 64 GB SSD |
| Hard Drive Optional | SSD: 32GB,64GB,128GB,256GB |
| HDD: 160GB,320GB,500GB,1TB |
| Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
| Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
| Network | 1×Realtek RTL 8111E Gigabit Ethernet controller |
| Wireless Network | WIFI ( Bluetooth, 3G/4G optional) |
| I/O Interface | 4×USB 2.0, 1×VGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian etc. |
| LCD panel |
| Panel size | 15", 15.6", 17.3" |
| Resolution | 1024*768 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 350 cd/m2 |
| Response time | 5ms |
| Dot pitch | 0.297x0.297 mm |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Power Supply |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 12V |
| Enclosure |
| Material | Aluminum alloy, High strength cold rolled steel |
| Color | Black |
| Operating Environment |
| Temperature Range | operating: -10 to 60°C, storage :-20 to 80°C |
| Relative humidity | 5%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details |
| Net weight | 6.78kg |
| Warranty | 1 year warranty |
