US$6,000.00-10,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Horizontal Resolution
640X512
Certification
CE, FCC, ISO9001: 2000
Feature
Waterproof / Weatherproof, High Definition, Vandal-proof
Effective Distance
1km Night, 2km Daytime
Remote Control
With Remote Control
Pantilt
Pan 360°, Tilt -60°~+20°
Transport Package
Wooden Case/Carton
Specification
Thermal Sensor
Origin
Shandong Province, China
Production Capacity
100 Units / Month
Packaging & Delivery
Package Size
71.80cm * 35.30cm * 55.80cm
Package Gross Weight
25.000kg

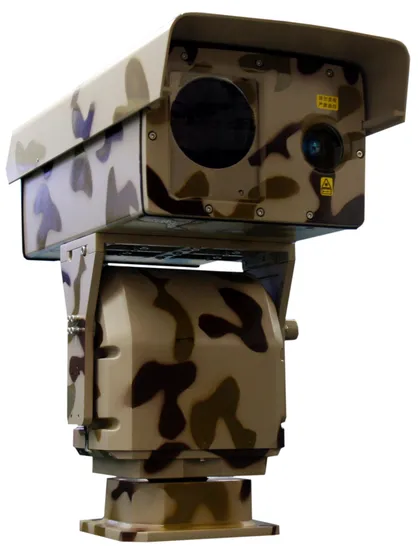

Product Description
Product Description
Product Features: Adopt sync zoom laser IR illuminator system,illuminate far with large scope,can realize monitoring at 0LuxDay and night type low illumination level color to black camera,to realize monitoring around the clockMCIC light homogenization technology,no speckle & Crape ring phenomenon,high marginal definitionSupport fog penetrating,backlight compensation,multistage WDRSupport telephoto limiting-velocity & 3D locate functionExternal MMA micro-adjusting mechanism,no need to remove cover to finish laser alignment adjustmentSmart shell with professional design,light,firm,high temperature resistance,anti-corrosion, waterproof and acid rain proof
Specification:
| Monitoring Distance | Night vision | 1000m |
| Day vision | 2000m |
| Imaging lens | Focal length | 15~300mm |
| FOV | 0.9°~18.2° |
| Camera | Sensor type | 1/3'' surface infrared enhanced CCD |
| Pixel | 752×582 |
| Resolution | Color 600 TV line,black & white 650 TV line |
| Min. illuminating | Color 0.02lux,black & white 0.0009lux |
| Laser IR illuminator | Illumination lens | 60x zoom laser telephoto lens |
| Power | 6W |
| Wavelength | 810nm |
| Illuminate angle | 0.5°~30° continuous change |
| Light homogenization | MCIC light homogenization technology |
| Shield | Material | Precision casting aluminium alloy |
| Window glass | 4mm Microlite super white optical glass |
| Pan-tilt | Load | 20kg(top-load) |
| Angle | 360° continuously rotating horizontally, -60°~+20° looking up and down |
| Speed | Pan 0.1°~9°/s,tilt 0.1°~4°/s |
| Presets | 255pcs,support lens zoom & focus presets memory |
| Auto cruising | 8 cruising paths,each path can set up 10 presets |
| Anti-thunder | 2000V |
| Interface | Power supply interface | AC24V |
| Other interface | RS485,BNC video output |
| Environmental indicators | Working temperature | -25ºC~+55ºC |
| Storage temperature | -40ºC~+65ºC |
| International protection | IP66 |
| Power | Power supply | AC24V±10%,equip AC220V~AC24V/5A waterproof power supply |
| Power consumption | ≤80W |
| Physical features | Weight | 25.5kg |
| Installation | Outdoor base install |
Packaging & Shipping
Delivery Time:10~15 days after receipt payment-----Under 10pcs
15~20 days after receipt payment----Over 10pcs
Our Advantages
Certification: (1)Technical advancement certificate Invention patent of continuous zooming for uncooled infrared thermal imaging camera(Patent number:ZL 200810015710.6) Invention patent of large times zoom for infrared continuous zooming lens of uncooled infrared thermal imaging camera(Patent number:ZL 200910014323.5) Invention patent of auto focus method and device for thermal camera (Patent number:ZL200910019161.4) Invention patent of anti-glare damage thermal camera and its method (Patent number:ZL201210362592.2) Invention patent of a infrared thermal system blind-pixel substitution method(Patent number:ZL201310182838.2) Invention patent of super times zoom for infrared continuous zooming lens of uncooled infrared thermal imaging camera(Patent number:ZL 201410094484.0) Shandong Province Patent Technology Award Uncooled large diameter zoom infrared thermal imaging camera State Key New Products(2011TJC60003) (2)Quality reliability certificate ISO9001:2008 Certificate of quality management system; Inspection report from Security and Electronic Product Quality Testing Center of the Ministry of Public Security; China Saibao (Shandong) Laboratory Test Report; CE, FCC certificate. CE,FCC,ISO: Company Profile
>>
