US$11,000.00-12,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Automatic Grade
Semiautomatic
Certification
CE, ISO 9001
Max. Swing Dia. Over Bed
400mm
Max. Swing Dia. Over Slide
120mm
Max. Turning Length
200mm
Tool Post
Gang Tool/4t Tool Turret
Transport Package
Wooden Case
Production Capacity
1000units/Year
Packaging & Delivery
Package Size
250.00cm * 320.00cm * 250.00cm
Package Gross Weight
250.000kg

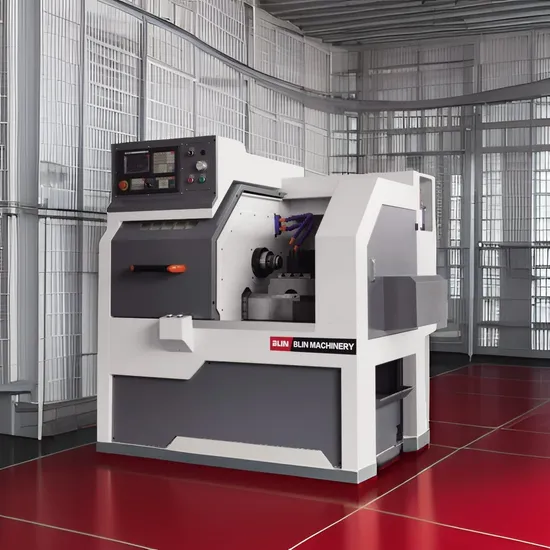

Product Description
- TAIWAN linear guideway and ball screw
- Super high performance-price ratio
Details:
| Item | Specification | Unit | BL-Z0632 |
| Capacity | Chuck size | / | 5''/6'' |
| Max. swing dia. over bed | mm | Φ400 |
| Max. swing dia. over slide | mm | Φ120 |
| Max. turning length | mm | 200(chuck) |
| Spindle | Spindle speed | rpm | 3000 |
| Spindle type | / | A2-5 |
| Spindle bore | mm | Φ48 |
| Spindle motor | kw | 3 |
| Clamping device | / | Hydraulic collet/Hydraulic chuck |
| X/Z axes | X/Z axes travel | mm | 320/330 |
| X/Z axes servo motor | N.m | 4/4 |
| X/Z axes rapid move speed | m/min. | 20/20 |
| X/Z ball screw O.D. | mm | Φ25/Φ32 |
| X/Z linear guideway width | mm | 25/30 |
| X/Z axes positioning accuracy | mm | 0.03/0.03 |
| X/Z repeatability accuracy | mm | 0.005/0.01 |
| Tool post | Tool post | / | Gang tool/4T tool turret |
| Toolshank size | mm | 20×20 |
| Tailstock | Tailstock | / | N/A |
| Others | Overall size | mm | 1700×1400×1700 |
| N.W. | kg | 1200 |
Main parts list:
| Item | Brand |
| Bearings | CHINA top |
| Ball screw | TAIWAN |
| Linear guideway | TAIWAN |
| Chuck& cylinder | TAIWAN-AUTOGRIP |
| Main electric parts | FRANCE-SCHNEIDER |
Standard configuration:
-GSK980TC3 CNC Controller
-Hydraulic collet
-Gang tool
Optional configuration:
-SIEMENS 808D ADVANCED CNC controller
-Hydraulic chuck
-4 station tool turret
