Basic Info.
Application
Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Shoemaking Industry, Advertising Industry
Cooling System
Water Cooling
Technical Class
Continuous Wave Laser
Applicable Material
Metal
Structure Type
Gantry Type
Laser Classification
Fiber Laser
Laser Technology
Laser Flame Cutting
Dimension
7800*2350*1900mm
Cutting Range
3000*1500mm
Laser Source
Max Ipg Raycus
Transport Package
Wooden Case
Specification
3015 cutting range
Production Capacity
100PCS/Year
Packaging & Delivery
Package Size
7800.00cm * 2350.00cm * 1900.00cm
Package Gross Weight
5000.000kg
Product Description
Product Description

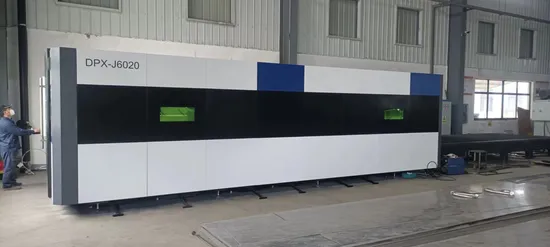

Exchange table laser cutting machine comes with high processing efficiency. It adopts imported servo double-drive rack and pinion structure, parallel interactive worktables, and fully enclosed sheet metal outer protection. It is a laser cutting machine with superior performance and high-efficiency processing. Suitable for external processing or exclusive industry customer groups (aluminum sheet).
Detailed Photos
Product Parameters
Features One-click platform exchange, saving time and energy.
Double table design, cutting and loading & unloading can be carried out at the same time, ensuring uninterrupted processing all day long.
Full-enclosed protection and segmented follow-up dust removal design create a clean and friendly processing environment.
The high-strength bed combined with high-precision dynamic performance is specially designed for high-speed batch cutting of medium and thin plates.
High-power (12000W-30000W)
Technical Parameters
Laser power | 12000-30000W |
Model | DPX-J6025 | DPX-J8025 | DPX-J10025 | DPX-J12025 |
Cutting range | 6000 × 2500mm | 8000 × 2500mm | 10000 × 2500mm | 12000 × 2500mm |
Cutting focus method | Auto focus |
Machine running accuracy | Acceleration: 1.8G |
Maximum speed: 150m/min |
Axial positioning accuracy of worktable: ± 0.05mm/m |
Repeated positioning accuracy of worktable: ± 0.03mm/m |
Cutting Performance
material | 12000W cutting performance | 15000W cutting performance | 20000W cutting performance |
carbon steel | stable cutting | ≤ 35mm | stable cutting | ≤ 40mm | stable cutting | ≤ 45mm |
Limit cut | 50mm | Limit cut | 60mm | Limit cut | 70mm |
Stainless steel | stable cutting | ≤ 30mm | stable cutting | ≤ 35mm | stable cutting | ≤ 40mm |
Limit cut | 50mm | Limit cut | 70mm | Limit cut | 80mm |
Application Effect
Medium power (3000W-6000W)
Technical Parameters
Laser power | 3000-6000W |
Model | DPX-J3015 | DPX-J4020 | DPX-J6025 | DPX-J8025 |
Cutting range | 3000 × 1500mm | 4000 × 2000mm | 6000 × 2500mm | 8000 × 2500mm |
Cutting focus method | Auto focus |
Machine running accuracy | Acceleration: 1.2G |
Maximum speed: 100m/min |
Axial positioning accuracy of worktable: ± 0.05mm/m |
Repeated positioning accuracy of worktable: ± 0.03mm/m |
Cutting Performance
material | 3000W cutting performance | 4000W cutting performance | 6000W cutting performance |
carbon steel | stable cutting | ≤ 20mm | stable cutting | ≤ 22mm | stable cutting | ≤ 25mm |
Limit cut | 25mm | Limit cut | 25mm | Limit cut | 30mm |
Stainless steel | stable cutting | ≤ 9mm | stable cutting | ≤ 10mm | stable cutting | ≤ 14mm |
Limit cut | 12mm | Limit cut | 14mm | Limit cut | 20mm |
Application Effect
Low power ( 1000-2000W )
Technical Parameters
Laser power | 1000-2000W |
Model | DPX-J3015 | DPX-J4020 | DPX-J6025 |
Cutting range | 3000 × 1500mm | 4000 × 2000mm | 6000 × 2500mm |
Cutting and focusing method | Manual / automatic focusing |
Machine running accuracy | Acceleration: 1.0G |
Maximum speed: 80m/min |
Axial positioning accuracy of worktable: ± 0.05mm/m |
Repeated positioning accuracy of worktable: ± 0.03mm/m |
Cutting Performance
Material | 1000W cutting performance | 1500W cutting performance | 2000W cutting performance |
Carbon steel | stable cutting | ≤ 8mm | stable cutting | ≤ 12mm | stable cutting | ≤ 16mm |
| Limit cut | 12mm | Limit cut | 16mm | Limit cut | 20mm |
Stainless steel | stable cutting | ≤ 4mm | stable cutting | ≤ 6mm | stable cutting | ≤ 7mm |
| Limit cut | 6mm | Limit cut | 8mm | Limit cut | 10mm |
Application Effect
Certifications
Our Advantages
After Sales Service
1. 7*24 hour2. Response time<12 hours3.Online support4.Product replacement5. Customer field service6. Backup products during repairing for long time cooperators* International warranty ONLY valid if products are purchased directly from Horizon Laser or authorized local distributors/agents.
FAQ
1. What are your prices?
Our prices are subject to change depending on supply and other market factors. We will send you an updated price list after your company contact us for further information.
2. What is the average lead time?
For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
3. Do you guarantee safe and secure delivery of products?
Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.
>>
