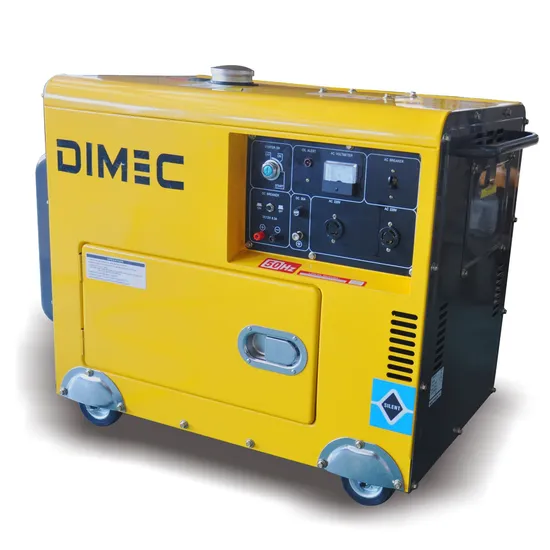

Pme6700se 186fa Portable silent Generator Set

Product Description

Product Description

	Model	PME6700SE
Alternator	Rated frequency [Hz]	50/60
	Rated power [kw]	4.5kw (50Hz); 5.0kw (60Hz)
	Max.power [kw]	5.0kw (50Hz); 5.5kw (60Hz)
	Rated voltage [v]	110/220;120/240; 220/380 (depend on requirement)
	Power factor	1.0 or 0.8
	Phase	Single phase or three phase
Engine	Mode	PME186FA(E)
	Type	Single-cylinder, vertical, air-cooled, 4-stroke, diesel engine
	Starting system	Recoil start or Electric start
Genset	Fuel tank capacity [L]	17
	Continuous running time [h]	7.5h (50Hz); 6.3h (60Hz)
	Noise(7m) dB(A)	74-76
	N.W/G.W	153/158
	Package (L x W x H) [cm]	95*57*75

Feature:

Low noise	High efficiency combustion system ensures complete combustion. A large silencer dampens exhaust noise and engine sound are contained in a double wall structure and absorbed.
Alternator winding	Waveform distortion is kept at a minimum level with a stable output. The winding design protect the generator from short circuit and provide a stable output while running inductive loads.
Low oil alarm system	Before the oil level drops to a dangerous level, the generator will stop automatically. It can be restarted after the proper oil level is restored.
ATS as optional	The automatic transfer switch can be applied to dual voltage, single phase and three phase generator sets. When utility power fails, a automatic transfer switch senses the loss of power and immediately starts the generator. Once utility power is restored, the transfer switch shifts your electric load back to utility power and shuts off the generator. The automatic transfer switch can be mounted inside the generator or attached as an optional accessory. Most generators in this series are equipped with brushless alternators which establish stable voltage in a minimum amount of time.
Digital control panel as optional	All control functions of the generator are on a central panel. A digital display indicates the real time performance data of the generator, such as voltage, frequency, oil pressure and battery condition.
Packaging	Standard export carton packing.Packing is the Carton made of strong,sturdy wooden Compressive strength and corrosion resistance
Shipping	25-30days after confirming order,detail delivery date should be decided according to production season and order quantity.

Company Profile
Wuxi Pinnacle Mechanical Equipment Co., Ltd. (PME) As a first-class specialty enterprise we serve global clients. PME specialize on production of plate compactor, tamping rammer, floor saw, concrete vibrator for global construction industry. We also produce engine, generator, and water pump. PME's strengths are rooted from our strong team and rich resources.
We have complete production and assembly lines for different machines. There is a team of chief engineers, senior technicians and QC inspectors, equipped with a variety of finishing, spare parts inspection and product testing equipment, to safeguard production and innovation. Thus, we can control every step of production, from finish machining of spare parts, steel plate cutting and welding, spraying paint, all the way to product assembly. This results in effective product quality control.
With more than 20 years of exporting experience, PME has been exporting to over 68 countries and regions including North America, South America, Europe, Southeast Asia, Middle East, Africa. We also form strategic corporations with many multinational companies.
Reflecting our decade long endeavor, PME won the trust and respect of our customers through high product quality, fast delivery, and timely and effective customer service. Looking forward PME will continue our path of improving current products as well as new product innovation to better serve our global customers.
Why choose us:
1.Our company has 20 years of production experience.
2.Our products include diesel generators, plate compactors, Tamping rammer, water pumps, road rollers, and other types of construction machinery.
3.has 8 production lines, can produce different machines, the monthly output can reach 5000 pieces.
4.Our workers have more than 8 years of production experience.
5.With strict quality supervision. Each production line is equipped with quality.
6.Products are exported to more than 90 countries.
7.A one-year warranty period. we will provide replacement service for any product problems, except for wearing parts.
Certifications
Customers Show
Packaging & Shipping
FAQ 1. How to control the quality?
100% inspection for material and spare parts.
8+years experienced skilled workers to produce the machines.
One QC for each production line, monitor production status.
5 mins testing for each machine before packing.
Carry on durability testing continuously.
2. What is the delivery time?
25-45 days after advanced payment.
3. Can you provide your certifications?
We have CE certificates. EPA emission certificates for North America. Euro V emission certificates for European Union countries. Other certificates, please specify and contact me. Thanks.
4. Can I customize products?
Yes, we supply OEM service. We can make the carton design, sticker design, color, LOGO, manual against your request. Customize products MOQ is 100pcs.
5. What kind of packaging options do you offer?
For the products less than 150KG, we usually use cartons, then 6pcs cartons put on one plywood pallet. For the products more than 150KG, we usually use iron frame+carton+pallet, or plywood box+pallet.

---
