Automatic Hydraulic Cutting Machine

Product Description

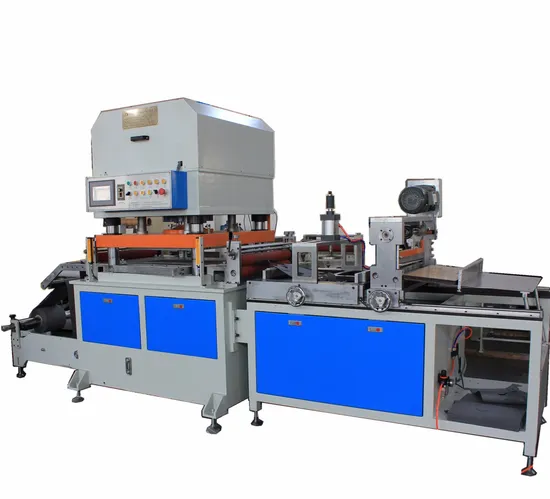

automatic hydraulic cutting machine
Powerful, Precise, Fast.
Suitable for roll materials
Available in a wide range of powers from 8 tons to 80 tons with cutting surface from 650mm*600mm up to 1000mm*800mm.
automatic hydraulic cutting machine Characteristics
Flexible and convenient operation,
Photoelectric registering system,
A programmer controller (PLC)
Kiss Cut, through cut both available.
Anti-vibration machine feet,
A cutting speed up to 20-90 punches per minute.
automatic hydraulic cutting machine Scope Application
It is applied to cut various materials, such as Rubber, Plastic, Paper Board, Aluminum Foil, Cooper foil, PET, Protective film, Mylar, Reflector, Diffuser, Gaskets, Silicon Tape etc.
Features 1. positioning mechanism, the accuracy of ± 0.02mm, which can do the whole and half broken off cutting, cutting down the minimum precision trimming 0.01mm. 2. with touch-screen interface, easy to operate, PLC overal control 3. Precision polished stainless steel cutting board and improves the cutting effect. 4. Servo motor control feeding system. 5.20mm cutting stroke, distance under 10mm feed conditions, cutting speeds up to 45 times per minute. unwinding length 500mm , max 30 times per minute 6. Adjustable center clip knife means to improve the efficiency of different sizes Die replacement. 7.PET belt cleaner wheel device, electrostatic removing device, oil cooling device. 8. The safety cover and safety electric eye. The pressure and mould plate adjstment part are at the up part of machine , use cover to keep them safety and clean safety electric eye is yellow color safety guard , it will sense if have hand or Foreign bodies when machine working, if have , the machine will emergency stop itself Video link : http://youtu.be/XOiQWX0AubE
Technical characteristics
1. Roll to roll direct die cutting, material automatic deviation correction, repeat position accuracy within 0.05mm.
2. No need separate slicing, no need positioning pin, automatic die-cut and discharge
3. Significantly reduce labor cost, reduce production costs and improve efficiency
4. Full servo control, jumping distance can be adjusted, stable pressure and depth precision upto 0.01mm.
5. Standard die base design, excellent die and tool compatibility, saving mould cost
Application
Widely applied to die cutting for self-adhesive products, brand name plate, membrane switch, flexible circuit board, PET, PVC, PC and various rolling materials.
Note: Below technical data are for reference only. Physical machine will be subject to specific offer and proposal.
brown paper roll die cutting machine
Our this machine video:
Http: //youtu. Be/WGzsM48bmdU
Http: //youtu. Be/SkgTtBaVMzo

Model	Working Area	Max Tonnage	Max Feeding Width	Drive Motor	Weight	Outline Dimension	Position Accuracy	Power
DP-650	650mm*600mm	40t	650mm	7.5HP/5.5KW	3 Ton	1940mm*1500mm*1790mm	±0.01 mm	380V 50HZ
DP-850	850mm*600mm	40t	850mm	10HP/7.5KW	3.4Ton	2140mm*1500mm*1790mm	±0.01 mm	380V 50HZ
DP-1000	1000mm*800mm	80t	1000mm	15HP/11..2KW	4.5Ton	2290mm*1500mm*1790mm	±0.01 mm	380V 50HZ
