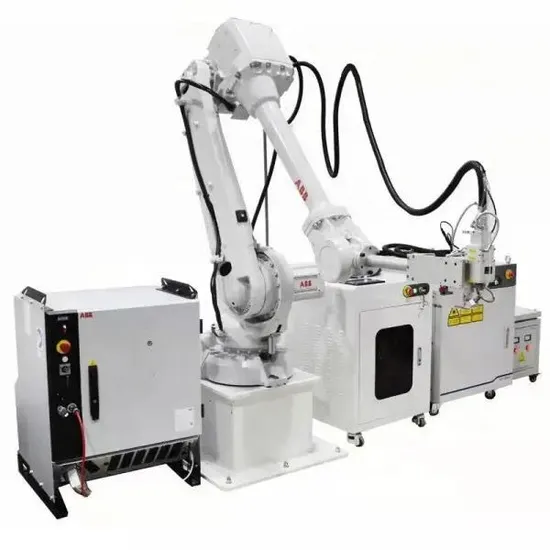

Premium Laser Hardening Machine for Precision Mold Treatment

Product Description

What is Laser Hardening?
Hot Sale Laser Metal Surface Heat Treatment High Accuracy Mold Laser Hardening Machine
Laser hardening is the use of laser to heat the surface of the material above the phase transition point, as the material itself cools, austenite into martensite, so that the surface hardening of the material quenching technology.
It is widely used in the surface treatment of cutting tools, molds, engine pistons, crankshafts, transmission gears, turbochargers, bearings, propellers, metal pipes, valves, etc. to improve their wear resistance, corrosion resistance and service life.
Main Components
Product Paramenters

Item	Spec.	Description	Qty.
Laser	2000W	Laser power: 10~1500W continuously adjustable.	1 set
Fiber system	600μm	Core diameter 600 m, length 15m	1 set
Laser collimating head	TS-Q100	Collimating focal length: 100mm, focusing focal length: 300mm	1 set
Laser focusing module	TS-301P300	Ensure speckle effect and heat treatment consistency	1 set
Multi-station four-axis system	TS-Q_SYS-4-900	Professional laser CNC system, equipped with industrial control computer, to achieve XYZ moving, stroke X: 500mm, Y: 400mm, Z:300mm (the specific stroke is determined according to the workpiece);Positioning accuracy: ≤±0.035mm Repeat positioning accuracy: ≤±0.01mm. Axis A and XYZ form A four-axis linkage.	1 set
Smoke purification system	Standard	Implement smoking and dust removal in work area (prevent pollution)	1 set
Refrigerated dryer	10HP,1.5M3	Filter and dry compressed air	1 set
Fixture	Customized		1 set
