Versatile Uav Radar Detector - Compact Dimensions for Easy Integration

Product Description

Basic Information

Model NO.	NJ1510
Operating frequency	16GHz
Transmitted signal bandwidth	≤40MHz
system	One-dimensional active phased array
Beam scanning mode	Pitch electronic scanning/azimuth mechanical scanning
Antenna transmit peak power	<130W
Average power of whole machine	<100W
Distance blind zone	≤130m
Azimuth range	360°
Pitch range	30° The intrusion target can be tracked automatically by clicking (MAX45°)
Range accuracy	10m
Detection probability	90%
Data rate	Search: 6s Tracking: 6Hz
Track output protocol	UDP
Class of protection	IP66

Packaging & Deliver

weight	Total: 30kg
Structural dimensions	Radar host size :420*420*100 Turntable size :320*310*250

overview

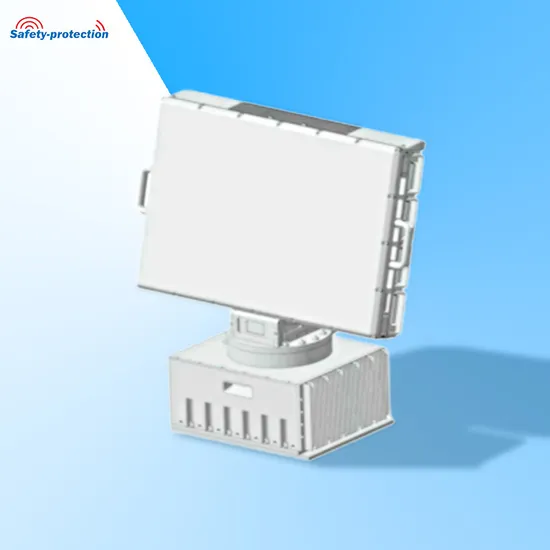

NJ1510Introducing the cutting-edge NJ1510 security radar, a formidable three-coordinate low-altitude UAV detection system operating in the Ku band. This sophisticated radar provides 24/7 detection and early warning capabilities for low altitude, slow-moving, and small targets, collectively known as 'low slow small targets.' Utilizing groundbreaking one-dimensional active phased array technology, it delivers 360° azimuth mechanical scanning, coupled with rapid phased pitch scanning, ensuring expansive airspace coverage. The radar excels in delivering accurate and stable real-time data on the distance, azimuth angle, altitude, and speed of targets such as drones, offering unparalleled surveillance.
Functions 1) 360° Global Low Altitude Monitoring and Detection: Unlock the unparalleled power of our radar's comprehensive 360° global surveillance capabilities. With effortless efficiency, it scans the entire airspace to detect threats like drones and balloons. This remarkable system continuously constructs navigational data, while accurately measuring distance, angle, altitude, and speed. All vital information is swiftly transmitted to the command terminal, empowering informed decisions with unmatched speed and precision.
2) Precision Target Tracking: Once a target is detected, our radar seamlessly transitions into a focused tracking mode. With an impressive 1-second data rate, it ensures continuous, unerring observation of the target, maintaining sharp precision throughout the process.
3) Guided System Integration: The radar's output is pivotal in guiding the strategic identification, confirmation, and operational management of optoelectronic systems and related technologies, enhancing system coherence.
Technological Advantages
1) Unparalleled 360° Monitoring and Detection: Experience the exceptional prowess of our radar's 360° global monitoring capabilities. With meticulous scanning of the entire airspace, it identifies and tracks airborne entities like drones and balloons, constructing insightful navigational data. The system evaluates crucial parameters such as distance, angle, altitude, and speed, instantly communicating this data to the command center, enabling prompt and actionable intelligence.
2) Impeccable Single Target Tracking: After acquiring a target, the radar switches adeptly to tracking mode, providing unwavering precision. Offering an impressive 1-second data rate, it guarantees relentless and focused surveillance.
3) Strategic Radar Output: The radar's output is a strategic asset, guiding the identification, confirmation, and strategic coordination of optoelectronic systems and other technologies, ensuring seamless and effective operations.
4) Autonomous Operation Capabilities: Our radar is equipped to perform autonomous search and automatic tracking conversion, delivering fully automatic, unmanned operations in standard environments, setting new standards in operational ease.
5) Lightweight, Portable, and Vehicle-Compatible: Experience the convenience of rapid deployment with our lightweight, compact radar system. Weighing just 30kg, it is designed for swift setup and removal by a single operator, perfect for quick mobile deployment. The radar and gimbal are also compatible for mounting on vehicle roofs.
6) Expansive Coverage and Versatile Deployment:
Achieve incredible spatial coverage with a maximum azimuth range of 360° and elevation coverage of 30°. This flexibility supports continuous 360° circumferential scanning and adapts to focused sector monitoring, ensuring comprehensive surveillance capabilities.
Pitch Range

---
