Welcome to visit

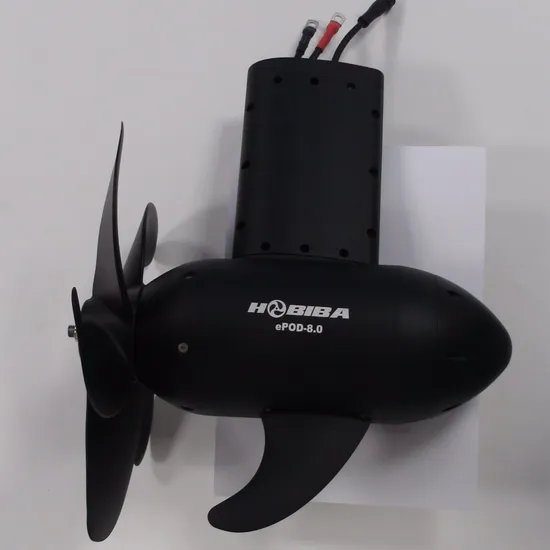

Hobiba Premium 8000W Electric Lower Unit Pod Edrive-8.0 for Outboard Motor Engine

US$1,500.00 10 Pieces (MOQ)

Basic Info.

Model NO.
eDrive-8.0
Cylinders
No
Fuel Type
Pure Electric
Engine Capacity
8000W Input Power
Engine
Brushless DC Motor
Engine Position
Outboard
Condition
New
Motor Type
Permanent Magnet Brushless DC Motor
Motor Efficiency
88%
Propeller
5-Blades, 12.7 Inch in Diameter
Working Voltage
50 VDC
Input Power
8000W @1360 Rpm
Shaft Power
6000W @1360 Rpm
Current
172 Ampere Max.
Rated Rpm
1500 Rpm
Static Thruster
160kg
Motor Weight
14.5kg
IP Grade
IP68
Housing
Anodized Black Aluminum 6061-T6
Motor Package
Including Motor, Built-in ESC, and Propeller
Application
Electric Boat Engine, Outboard, Marine Engine
Transport Package
CTN Package
Specification
75*60*45cm
Trademark
Hobiba
Origin
China
Production Capacity
2, 000 Units/Month

Packaging & Delivery

Package Size
75.00cm * 55.00cm * 35.00cm
Package Gross Weight
18.000kg

Product Description

Product DescriptionThis electric outboard motor lower unit, feature 6000W shaft power, motor efficiency up to 88%, easily to integrate into your existing outboard structure, suitable for building your own brand electric outboard engine, also suitable for electric conversion for your gas engine 20HP~25HP:
1. This motor system include motor, esc built-in and propeller
2. Static thruster up to 160kg
3. Motor efficiecy at 88%
4. weight at 14.5kg
5. Compact, lightweight and silient when working
6. Integrate motor and controller into one
7. Environmentally friendly & saltwater anti-corrosion
Detailed Photos
Motor Technical Data1. All in One design, including motor, built-in esc and propeller
2. Input power at 8000W
3. Working voltage: 10S-14S
4. Motor efficiecy at 88%
5. Net weight at 14.5Kg
6. Static thruster up to180kg (Max)
7. Propeller: 5-Blades 12.7 inch in diameter
8. Motor type: permanent magnet synchronous motor
9. Low noise level, lower than50 bt
10.the Max propeller speed: Max. 1800 rpm(with loading) at 50V
Motor drawing
Testing Report
ItemC_Voltage
(V)		C_Current
(A)		C_Input Power
(W)		M_Current
(A)		M_Input Power
(W)		M_Efficiency
(%)		M_Speed
(rpm)		M_Torque
(N*m)		M_Output Power
(W)
050.09999833.161570.70996130.021538.90002492.48404719257.0599951423.237061
150.0249.2000012347.541.4000022305.80004993.179276185511.0599962148.527832
249.93999965.0299993103.21997153.7799993054.35009892.588356178615.1199952827.972656
349.86000180.323824.566.4100043759.2299891.411247171819.0999953436.358887
449.79999995.1100014517.68017679.2699974431.54003990.179817165223.0999953996.354736
549.720001110.2799995219.16992292.9400025106.43017688.386314158827.1399964513.385254
649.650002125.075895.850098106.575757.66992286.376328152731.0999954973.263672
749.580002140.6000066602.810059121.0800026431.35986384.102699146935.1599965408.947266
849.529999155.7599957290.870117135.4700017084.43017681.884033141639.1199955801.01709
949.459999172.3500068038.859863151.4600077791.35009878.888527135843.2199946146.481445
1049.400002189.6000068808.969727168.4199988512.66015675.421288130047.1599966420.35791
Underwater test
50V Underwater testing report with loading
ItemVoltage
(V)		Current
(A)		Input Power
(W)		Speed
(RPM)		Thrust
(kgf)		Throttle
(%)		Kgf Per kw
15021003068.5 2085.00
250630048016.2 3054.00
3501470064531.1 4044.43
45029145083751.1 5035.24
55047235098769.1 6029.40
650683400104986.2 7025.35
7509447001172110.7 8023.55
85013065001219134.6 9020.71
95017085001309156.2 10018.38
