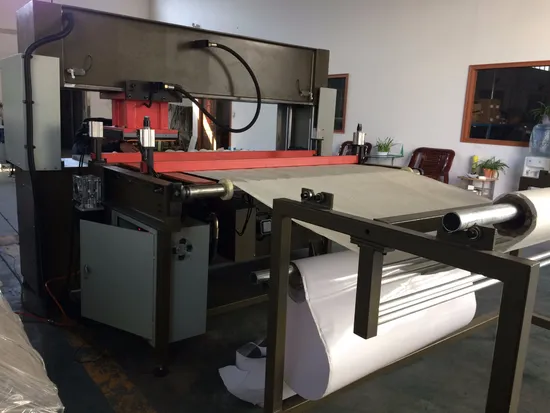

Leather Bags Hydraulic Traveling Head Cutting Machine

Product Description

leather bags hydraulic traveling head cutting machine

The working principle of the hydraulic cutting machine is down press to the mould,to cut material by dies / moulds.
1.travel head cutting machine pressure:25Tons-50Tons,Cut material by dies / moulds.
2.Hydraulic,manual simple operated,material precision 0.01mm,no burned.
3.Two Cylinders,Four Column,Plane cutting press machine
4.Usually cut for shoe uppers,insoles,bags,purse,soft toys,abrasive tools,fabric ect.
5.Can make big cutting area:610*1600mm or as required.
Mainly used for die cutting leather and leather products,plastic,rubber,sponge,foam,EVA,PVC,cardboard, paper products,fabric,home textiles,packaging materials,non woven,carpet,car cushion,felt,synthetic materials, and other non-metallic materials in various industries;Extremely suitable for cutting multiple layers of material at one time.

1. Technical Parameters travel head cutting machine

Model.No~	Cutting Force	Dimension (L*W*H)	Cutting Area	Cutting Plate	Main Motor Power	Stroke Control Range	Net Weight
DP-C25T	25 Tons	2330*900*1900mm	500*1600mm	500*500mm	2.2kw	40-160mm	1900kg
DP-C30T	30 Tons	2330*900*1900mm	610*1600mm	610*610mm	4kw	40-160mm	2300kg
DP-C40T	40 Tons	2330*900*1900mm	610*1600mm	610*610mm	4kw	40-160mm	2800kg
HG-C50T	50 Tons	2330*900*1900mm	610*1600mm	610*610mm	5.5kw	40-160mm	3500kg

2. Features and Advantages travel head cutting machine

Features and Advantages

1.Movable trolley with powerful dynamic braking assuring a quick stop without gear motor without gear motor.

2.Pushing double buttons with two hands to ensure operators safety.

3.Hydraulic auto balance system,low energy consumptions.

4.High reliability,no primary,maintenance required.

---
