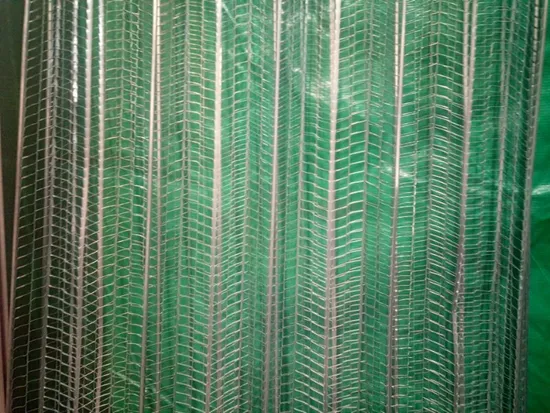

Spray 3/8" Height Galvanized 8 Opening Diamond Metal Rib Lath

Product Description

HI-RIB Mesh(High rib)/Expanded Rib Lath(direct factory) Widely used as a plaster backing on ceilings, walls and stud partitions. Rib mesh is also
ideal for refurbishing damaged or aged masonry walls when a key for rendering is not
certain due to disintegration or softening of the wall face.
1. Material:Hot-dipped galvanized sheet

2. Application:

1). Construction formwork mesh has very good engineering quality and construction security;

2). Construction formwork mesh as the concrete permanent assembly
free sheet is much convenient for engineering design and processing;

3). Construction formwork mesh is widely used in tunnels,bridges and valve system and so on
to make the process of construction much more fast and stable.

3. Specification

7 Rib 8 Opening
Thickness(mm)	Rib Distance(mm)	Weight (KG)	Width X length(mm)
0.30	100	1.79	610 X 2440
0.35	100	2.09	610 X 2440
0.40	100	2.38	610 X 2440
0.45	100	2.68	610 X 2440
0.5	100	2.98	610 X 2440

5 Rib 8 Opening
Thickness(mm)	Rib Distance(mm)	Weight (KG)	Width X length(mm)
0.30	150	1.31	610 X 2440
0.35	150	1.53	610 X 2440
0.40	150	1.75	610 X 2440
0.45	150	1.96	610 X 2440
0.5	150	2.17	610 X 2440

9 Rib 4 Opening
Thickness(mm)	Rib Distance(mm)	Weight (KG)	Width X length(mm)
0.30	75	1.89	610 X 2440
0.35	75	2.28	610 X 2440
0.40	75	2.53	610 X 2440
0.45	75	2.84	610 X 2440
0.5	75	3.15	610 X 2440

---
