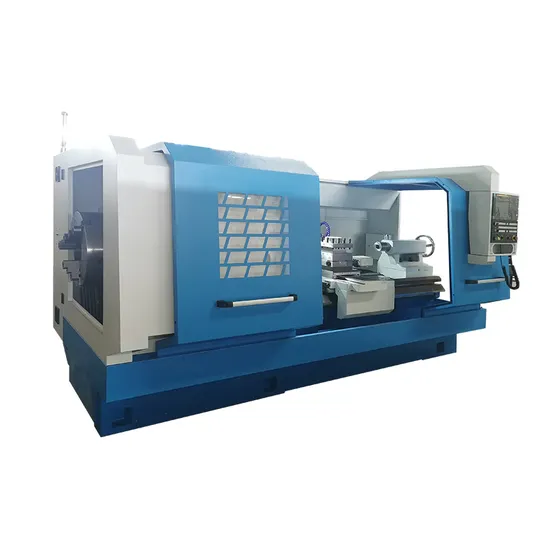

big bore QK1322 1500mm cnc pipe threading lathe machine price

Product Description

Product Description

Specification	QK1322
Max.swing over bed	Ф670mm
Max.swing over carriage	Ф380mm
Max. cutting length	1500mm
Rail width	550mm
Spindle bore	Ф225mm
Taper of spindle bore	MT6
Chuck size	500mm
Range of spindle speed	(L):25-120rpm(H):100-500rpm
X-axis travel	350mm
Z-axis travel	1250mm
X/Z rapid speed	4m/min
Electronic turret	4 -station
Max.section of tool	32x32mm
Stroke of tailstock sleeve	250mm
Diameter/Hole of tailstock sleeve	Ф100mm/MT5
Main motor power	11kw
Overall dimensions L x W x H	3657×1555×1360mm
Packing size L x W x H	3857×1755×1560mm
Net weight	4600kgs
Gross weight	5600kgs

Detailed Photos
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What's the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.

---
