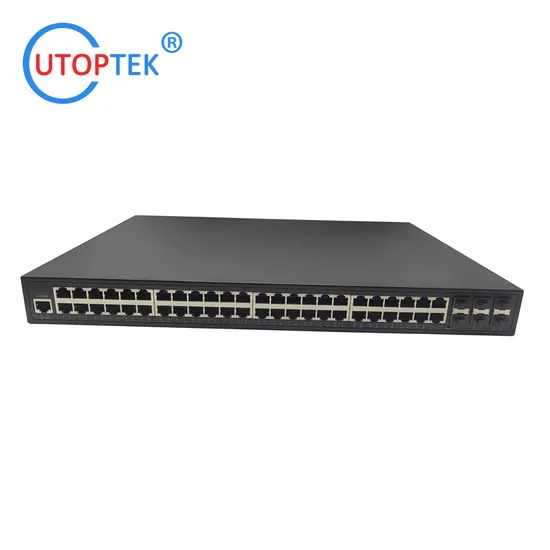

Layer 3 Managed 48 Port Poe+6port 1g/10g SFP+ Slot Uplink Vlan Managed Poe Network Switch

Product Description

UT-PS48GP-6SFP+
Layer 3 Manged PoE Switch 48x10/100/1000M POE+6*10G SFP+1*Console port 800W IEEE802.3af/at
Product Description
Hardware Specification

Physical Specification	Description
Performance • Switching Capacity: 336Gbps • Throughput: 160.7Mpps • MAC Capacity: 32K
Hardware • Flash Memory: 256MB • DRAM: 4GB
Interface	• 48-Port 10/100/1000M Base-T • 1-Port Console(With RJ-45)	• 6-Port 10G Base-R(SFP/SFP+)
Power	• Input:AC 100~240VAC, 50/60Hz	• Power Consumption: 40W
PoE	• Max PoE Power Budget: 800W • 15.4W simultaneously on 48 ports	• Support 48-Ports 10/100/1000 802.3af/at Base-T, 30W simultaneously on 24 ports
Environmental	• Operating Temperature: -40~70ºC • Storage Temperature: -20~70ºC	• Operating Humidity: 20~85%RH (Non-Condensing) • Storage Humidity: 5~95%RH (Non-Condensing)
Mechanical • Dimension: 440(W) x 44(H) x 300(D)mm • Weight:5kg
Air Flow • FAN : Forced-Air Cooling

Software specification

Features	Description
Status	• System Information • Logging Message • Port	• Link Aggregation • MAC Address Table
Network	• DNS • Hosts • System Time
Port	• Port Setting • Error Disabled • Link Aggregation	• EEE • Jumbo Frame • Port Security		• Protected Port • Storm Control
POE Setting	• POE Port Setting • POE Port Timer Setting
VLAN	• VLAN • Voice VLAN	• Protocol VLAN • MAC VLAN		• Surveillance VLAN • GVRP
MAC Address Table	• Dynamic Address • Static Address	• Filtering Address • Port Security Address
Spanning Tree	• Property • Port Setting	• MST Instance • MST Port Setting		• Statistics
ERPS	• Property • ERSP Instance
Lookback	• Lookback Config
Discovery LLDP	• Property • Port Setting • MED Network Policy	• Packet View • Local Informantion • Neighbor		• Statistics
DHCP	• Property • IP Pool Setting	• VLAN IF AddressGroup Setting • Client List		• Client Static Binding Table
Multicast	• General • IGMP Snooping	• MLD Snooping • MVR
Routing	• IPV4 Management and Interfaces • IPV6 Management and Interfaces		• Rip Routes Management • OSPF Routes Management
Security	• RADIUS • TACACS+ • AAA • Management Access	• Authentication Manager • Port Security • Protected Port • Storm Control		• Dos • Dynamaic ARP Inspection • DHCP Snooping • IP Source Guard
ACL	• MAC ACL • MAC ACE • IPV4 ACL	• IPV4 ACE • IPV6 ACL • IPV6 ACE		• ACL Binding
Qos	• General • Rate Limit
Diagnostics	• Logging • Mirroring • Ping	• Traceroute • Copper Test • Fiber Module		• UDLD
Management	• User Account • Firmware	• Configuration • SNMP		• RMON

Detailed Photos
Packaging & Shipping
Company Profile
Certifications
Ordering Informations

10/100Mbps POE Switch 250M
Model	Description
UT-PS0402F	4*10/100Mbps POE RJ45 +2*100M Uplink UTP, Power:Per≤30W &Whole≤60W/52V/1.05A ;Bandwidth:1.2G, Data signal port:1236, Power supply port:1236(+12 -36), Distance:250M Extend:Yes Agreement:IEEE802.3AT/AF
UT-PS0402F(B)	4*10/100Mbps POE RJ45 +2*100M Uplink UTP, Power:Per≤30W &Whole≤65W/52V/1.25A ;Bandwidth:1.2G, Data signal port:1236, Power supply port:1236(+12 -36), Distance:250M Extend:Yes Agreement:IEEE802.3AT/AF
UT-PS0602F	6*10/100Mbps POE RJ45 +2*100M Uplink UTP, Power:Per≤30W &Whole≤75W/52V/1.25A ;Bandwidth:1.2G, Data signal port:1236, Power supply port:1236(+12 -36), Distance:250M Extend:Yes Agreement:IEEE802.3AT/AF
UT-PS0802F	8*10/100Mbps POE RJ45 +2*100M Uplink UTP, Power:Per≤30W &Whole≤120W/52V/2.3A ;Bandwidth:2G, Data signal port:1236, Power supply port:1236(+12 -36), Distance:250M Extend:Yes Agreement:IEEE802.3AT/AF
UT-PS1002F	10*10/100Mbps POE RJ45 +2*100M Uplink UTP, Power:Per≤30W &Whole≤120W/52V/2.3A ;Bandwidth:2.4G, Data signal port:1236, Power supply port:1236(+12 -36), Distance:250M Extend:Yes Agreement:IEEE802.3AT/AF
UT-PS1402F	14*10/100Mbps POE RJ45 +2*100M Uplink UTP, Power:Per≤30W &Whole≤200W/52V/3.8A ;Bandwidth:2.4G, Data signal port:1236, Power supply port:1236(+12 -36), Distance:250M Extend:Yes Agreement:IEEE802.3AT/AF
UT-PS08F02G	8*10/100Mbps POE RJ45 +2*1000M Uplink UTP, Power:Per≤30W &Whole≤120W/52V/2.3A ;Bandwidth:5.6G, Data signal port:1236, Power supply port:1236(+12 -36), Distance:250M Extend:Yes Agreement:IEEE802.3AT/AF
UT-PS08F12G	8*10/100Mbps POE RJ45 +2*1000M Uplink UTP+1*GE SFP, Power:Per≤30W &Whole≤120W/52V/2.3A ;Bandwidth:5.6G, Data signal port:1236, Power supply port:1236(+12 -36), Distance:250M Extend:Yes Agreement:IEEE802.3AT/AF
UT-PS16F02G	16*10/100Mbps POE RJ45 +2*1000M Uplink UTP, Power:Per≤30W &Whole≤250W/52V/4.8A ;Bandwidth:7.2G, Data signal port:1236, Power supply port:1236(+12 -36), Distance:250M Extend:Yes Agreement:IEEE802.3AT/AF
UT-PS16F12G	16*10/100Mbps POE RJ45 +2*1000M Uplink UTP+1*GE SFP, Power:Per≤30W &Whole≤250W/52V/4.8A ;Bandwidth:7.2G, Data signal port:1236, Power supply port:1236(+12 -36), Distance:250M Extend:Yes Agreement:IEEE802.3AT/AF
UT-PS16F12G(1U)	1U RACK 16*10/100Mbps POE RJ45 +2*1000M Uplink UTP+1*GE SFP, Power:Per≤30W &Whole≤250W/52V/5.8A ;Bandwidth:7.2G, Data signal port:1236, Power supply port:1236(+12 -36), Distance:250M Extend:Yes Agreement:IEEE802.3AT/AF
UT-PS24F02G	24*10/100Mbps POE RJ45 +2*1000M Uplink UTP, Power:Per≤30W &Whole≤320W/52V/6.15A ;Bandwidth:8.8G, Data signal port:1236, Power supply port:1236(+12 -36), Distance:250M Extend:Yes Agreement:IEEE802.3AT/AF
UT-PS24F22G(1U)	1U RACK 24*10/100Mbps POE RJ45 +2*1000M Uplink UTP+2*GE SFP, Power:Per≤30W &Whole≤350W/52V/6.7A ;Bandwidth:8.8G, Data signal port:1236, Power supply port:1236(+12 -36), Distance:250M Extend:Yes Agreement:IEEE802.3AT/AF
Full Gigabit POE Switch 100M
UT-PS0401G	4*10/100/1000Mbps POE RJ45 +1*1000M Uplink UTP, Power:Per≤30W &Whole≤65W/52V/1.25A, Bandwidth:10G full duplex, Data Pin:12+ 36- 45+ 78- , Distance:100M, Power supply Pin:1236(12+ 36-) Agreement:IEEE802.3AT/AF
UT-PS0402G	4*10/100/1000Mbps POE RJ45 +2*1000M Uplink UTP, Power:Per≤30W &Whole≤65W/52V/1.25A, Bandwidth:10G full duplex, Data Pin:12+ 36- 45+ 78- , Distance:100M, Power supply Pin:1236(12+ 36-) Agreement:IEEE802.3AT/AF
UT-PS0411G	4*10/100/1000Mbps POE RJ45 +1*1000M Uplink UTP+1* GE SFP, Power:Per≤30W &Whole≤65W/52V/1.25A, Bandwidth:10G full duplex, Data Pin:12+ 36- 45+ 78- , Distance:100M, Power supply Pin:1236(12+ 36-) Agreement:IEEE802.3AT/AF
UT-PS0802G	8*10/100/1000Mbps POE RJ45 +2*1000M Uplink UTP, Power:Per≤30W &Whole≤120W/52V/2.3A, Bandwidth:20G full duplex, Data Pin:12+ 36- 45+ 78- , Distance:100M, Power supply Pin:1236(12+ 36-) Agreement:IEEE802.3AT/AF
UT-PS0820G	8*10/100/1000Mbps POE RJ45 +2*GE SFP, Power:Per≤30W &Whole≤120W/52V/2.3A, Bandwidth:20G full duplex, Data Pin:12+ 36- 45+ 78- , Distance:100M, Power supply Pin:1236(12+ 36-) Agreement:IEEE802.3AT/AF
UT-PS0812G	8*10/100/1000Mbps POE RJ45 +2*1000M Uplink UTP+1*GE SFP, Power:Per≤30W &Whole≤120W/52V/2.3A, Bandwidth:20G full duplex, Data Pin:12+ 36- 45+ 78- , Distance:100M, Power supply Pin:1236(12+ 36-) Agreement:IEEE802.3AT/AF
UT-PS0822G	8*10/100/1000Mbps POE RJ45 +2*1000M Uplink UTP+2*GE SFP, Power:Per≤30W &Whole≤120W/52V/2.3A, Bandwidth:20G full duplex, Data Pin:12+ 36- 45+ 78- , Distance:100M, Power supply Pin:1236(12+ 36-) Agreement:IEEE802.3AT/AF
UT-PS1602G	16*10/100/1000Mbps POE RJ45 +2*1000M Uplink UTP, Power:Per≤30W &Whole≤250W/52V/4.8A, Bandwidth:32G full duplex, Data Pin:12+ 36- 45+ 78- , Distance:100M, Power supply Pin:1236(12+ 36-) Agreement:IEEE802.3AT/AF
UT-PS1620G	16*10/100/1000Mbps POE RJ45 +2*GE SFP, Power:Per≤30W &Whole≤250W/52V/4.8A, Bandwidth:32G full duplex, Data Pin:12+ 36- 45+ 78- , Distance:100M, Power supply Pin:1236(12+ 36-) Agreement:IEEE802.3AT/AF
UT-PS1644G	1U RACK 16*10/100/1000Mbps POE RJ45 +4*1000M Uplink UTP+4*GE SFP, Power:Per≤30W &Whole≤250W/52V/5.8A, Bandwidth:40G full duplex, Data Pin:12+ 36- 45+ 78- , Distance:100M, Power supply Pin:1236(12+ 36-) Agreement:IEEE802.3AT/AF
UT-PS2402G	24*10/100/1000Mbps POE RJ45 +2*1000M Uplink UTP, Power:Per≤30W &Whole≤320W/52V/6.15A, Bandwidth:48G full duplex, Data Pin:12+ 36- 45+ 78- , Distance:100M, Power supply Pin:1236(12+ 36-) Agreement:IEEE802.3AT/AF
UT-PS2420G	24*10/100/1000Mbps POE RJ45 +2*GE SFP, Power:Per≤30W &Whole≤320W/52V/6.15A, Bandwidth:48G full duplex, Data Pin:12+ 36- 45+ 78- , Distance:100M, Power supply Pin:1236(12+ 36-) Agreement:IEEE802.3AT/AF
UT-PS2444G	1U RACK 24*10/100/1000Mbps POE RJ45 +4*1000M Uplink UTP+4*GE SFP, Power:Per≤30W &Whole≤350W/52V/6.7A, Bandwidth:56G full duplex, Data Pin:12+ 36- 45+ 78- , Distance:100M, Power supply Pin:1236(12+ 36-) Agreement:IEEE802.3AT/AF

Customer's Feedbacks
FAQ
Q1 . What's your MOQ?
A1 .1 pc/pair is ok, we don't have MOQ limited.
Q2.What certification did you get?
A2 : Our products passed the CE,FCC,ROHS and SGS test, you can trust our quality very good.
Q3 :What about your delivery time?
A3:For small sample QTY,we have in stock, need 1day.
For QTY 200-500, usually will take 2-3working days. for big QTY pls contact our sales about details.
Q4.What your common shipping method?
A4:By air, by sea or express(DHL,Fedex,UPS,TNT,EMS...), We will make a perfect delivery plan for you.
Q5.How about your product warranty time?
A5:Our products have 1/3/5years warranty for different product series.
Q6. How to handle quality issues with your product?
We give you the promise if any question during 1 year and not cause by human factors, we will fix it.
