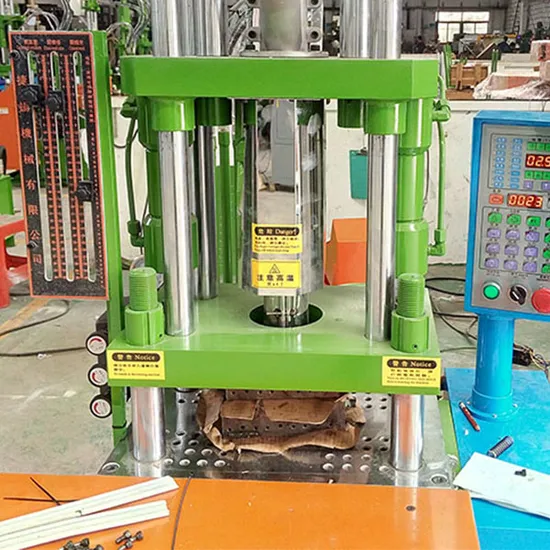

Factory Direct Supply Plastic Injection Moulding Machine

Product Description

Product Description
Machine Parameter

Model	Unit	JY-160S2		JY-250ST
Screw Barrel Diameter	mm	26	28	26	28
Injection Pressure	kg/cm2	1183	1019	1019	896
Max. Shot Weight	gram	50	58	58	67
Max. Shot Weight	cm3/sec	34.6	40	67	76.7
Screw Barrel Route	mm	105		105
Screw Barrel Rotary Speed	rpm	0-215		0-200
Nozzle Contact Force	tons	4.45		4.45
Nozzle Retraction Nozzle	mm	130		130
Number of Temperature Control	pcs	2		2
Clamping Force	tons	15		25
Platen Size	mm	450*280		480*310
Distance Between Tie Bere	mm	265		310*170
Min. Mold Height	mm	100/25		100/60
Opening Stroke	mm	190		180
Max. Opening Mold Distance	mm	290/215		280/80
Ejetor Force	tons	1.3		1.3
Ejetor Stoke	mm	35		35
Max. Hydraulic Pressure	kg/cm2	140		140
Pump Output	L/min	17.5		29.5
Oil Resservoir Capacity	Liter	80		100
Cooling Water Consumption	L/hr	400-600		400-600
Pump Motor Power	kw/hp	2.2/3HP		3.75/5HP
Barrel Heating Power	kw	1.8		1.8
Total Power	kw	4.2		5.5
Machine Weight	tons	0.45		0.68
Machine Dimension(LxWxH)	meter	1.35*0.92*2.06		1.4*0.90*2.37
Shipping Weight	tons	0.6		0.88
Shipping Measurements(LxWxH)	meter	1.3*1.0*2.23		1.49*1.08*2.25

Application
About Us
Packing & Shipping:
Our Services
1) 24 hours services, the answers to any questions will be replied sooner.
2) Direct factory services, exclusive and unique solution can be provided to you by our professional engineers and staffs teams.
3.)Materials suppliers offered ,the contact ways to different kinds of the materials and equipments of your products can be supported here, you can contact them by yourself .
4) After-sales services, engineers available to service machinery overseas; besides, the videos and document of solution will be sent at once.
5) The full and specific set of the subject for your project will be offered for you by free after we get touch with you.
6)12 Months Warranty and spare parts of machine will be offered within 3 days to avoid to waste your production time.
FAQ
Q1: Are you a trading company or a manufacturer?
A1: Factory we are, all the machine are made by ourselves. Besides, you can get the customize service with your requirements
Q2: What's your warranty for the machine?
A2: One Year Warranty(all the machine parts can be replaced within one year free of charge, not including the manmade broke), life-time maintenance.
Q3: What's your Delivery Time?
A3: Usually it is 3-5 days if the machine is in stock; If not, the delivery time is 10-25 days according to your required quantity and our busy season.
Q4: Where is your factory? How can visit you?
A4: Our factory is next to Guangzhou and Shenzhen. We will drive you to our factory by car when you arrive at Dongguan or Changping Railway(Bus) station.
Q5: Why choose Jieyang Machinery Co., Ltd.?
A5: "Customer Satisfaction, Continual Improvement & Innovative Service" are the driving force for our company to moving forwards. We will devote every efforts to do the best level machine and service.

---
