Basic Info.
Type
Tool Grinding Machine
Processing Object
Punchi Die
Automatic Grade
Automatic
Cylindrical Grinder Type
End Cylindrical Grinder
Certification
CE, ISO 9001
Name
Punch Press Tool Grinding Machine
Maximum Grinding Diameter
200mm
Maximum Grinding Allowance
1mm
Grinding Amount Per Pass
0.001–0.02mm
Transport Package
Wooden Box
Specification
820*820*1810mm
Production Capacity
50sets/Month
Packaging & Delivery
Package Size
82.00cm * 82.00cm * 182.00cm
Package Gross Weight
600.000kg
Product Description
Product Features
01. Automatic sharpening(Automatic tool setting, automatic removal).
02. PLC control, automatically complete the grinding process of rough grinding, fine grinding, polishing, etc.
03. Grinding accuracy: flatness±0.01MM.

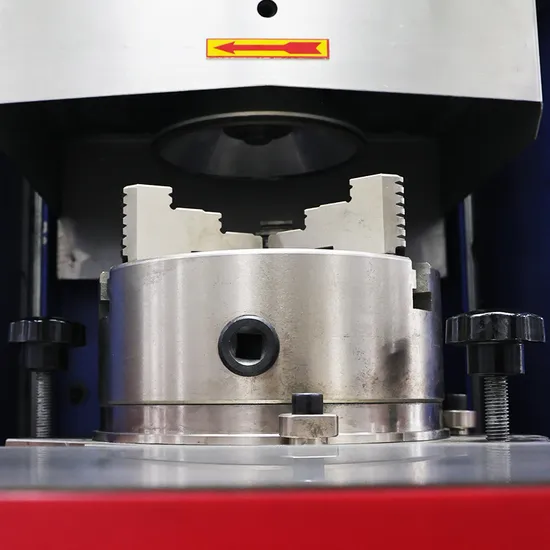

04. The upper mold of AMADA 85 series AB station only needs to remove the pipe, and then the chuck can be installed for sharpening.
05. Automatic lubrication system.
06. Automatic cooling system(Prevent tool grinding and annealing).
07. Automatic liquid level detection system(Automatically alarm and stop when the coolant is lacking to prevent tool grinding and annealing).
08. Automatic filtration system(Filter cotton can be washed and reused).
09. Safety door protection and alarm function.
10. Grinding overload protection system.
11. Spindle upper limit alarm function.
12. Emergency stop alarm function.
13. Interrupt return function.
14. Exhause system helps trap remaining swarf.
Product Parameters
| Grinding Wheel | CBN Ф150 |
| Maximum Grinding Diameter | Ф200 |
| Maximum Grinding Allowance | 1mm |
| Main Spindle Motor | 2.2KW, 50Hz |
| Spindle Speed (RPM) | 3000 |
| Maximum Vertical Travel | 250mm |
| Grinding Amount per Pass | 0.001-0.02mm |
| Worktable Motor | 0.55KW, 50Hz |
| Worktable Speed (RPM) | 60 |
| Cooling Water Pump | 0.12KW, 50Hz |
| Weight | 600kg |
| Total Power Capacity (KVA) | 3.7 |
FAQ
1.How many models of grinding machine are there?
A: We have 3 models. RG-160;WG-150;IS-160
2.Which brands of molds are suitable for?
A: Suitable for Amada,Murata and Trumph.
3.How can I choose the right fixture?
A: As each brand has different mold sizes, you can contact us.
>>
