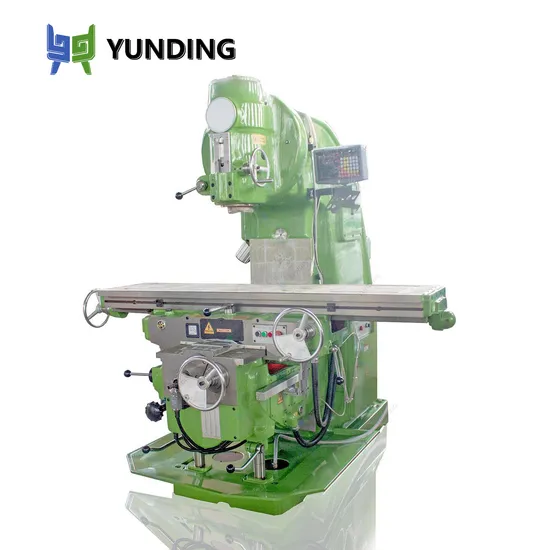

Metal Manual Multi Purpose Machine Tool X5040 High Quality Vertical Milling Machine

US$11,500.00-23,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
X5040
Type
Knee-and-Column Milling Machine
Object
Metal
Structure
Lifts
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Overall Welding Tooth
Controlling Mode
Artificial
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Table Size
1700X400mm
Table Load
800kg
Table Travel
900/880 315/300 385/365mm
T Slot(Number-Width-Pitch)
3-18-90
Spindle Taper
Is050 7:24
Spindle Speed Range
30-1500 (18 Steps)Rpm
Between Spindle Axis and Table
130-515mm
Main Motor Power
11kw
Weight
4250/4500kg
Transport Package
Plywood Case
Specification
2560× 2160× 2300mm
Trademark
yunding
Origin
China
HS Code
8459590000
Production Capacity
2000/Year

Packaging & Delivery

Package Size
256.00cm * 216.00cm * 230.00cm
Package Gross Weight
4250.000kg

Product Description

Product Description
Metal Manual Multi Purpose Machine Tool X5040 High Quality Vertical Milling Machine
we are the most professional in making horizontal milling machine
Product Parameters
Performance characteristics: 1. Using rectangular guide machine is Rigid good,
2. Work table and guide rail through the ultra audio spark quenching.
3. Work bench X. Y.Z are gear drive automatic feed and manual operationApplication:1. Universal lifting platform milling machine is a kind of general metal cutting machine tool.
2. Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear.
3. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.
Main technical parameters Specifications Units X5040
Table size mm 1700×400
Table load kg 800
T slot(number-width-pitch) mm 3-18-90
Table travel mm 900/880
315/300
385/365
Range of table feed mm /min XY:23.5-1180
Z:8-394
Rapid speed of table mm /min XY:2300
Z:770
Spindle taper ISO50 7:24
Spindle speed range rpm 30-1500 (18 steps)
Swivel angle of vertical milling head ° ±45
Distance between spindle nose and table surface mm 130-515
Spindle motor power kw 11
Feed motor power kw 1.5
Weight kg 4250/4500
Overall dimension mm 2560×2160×2300

Realistic photos
Detailed Photos
Our Advantages
Certifications
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
