Holo Rubber Timing Belt Endless Slitting Cutting Machine

Product Description

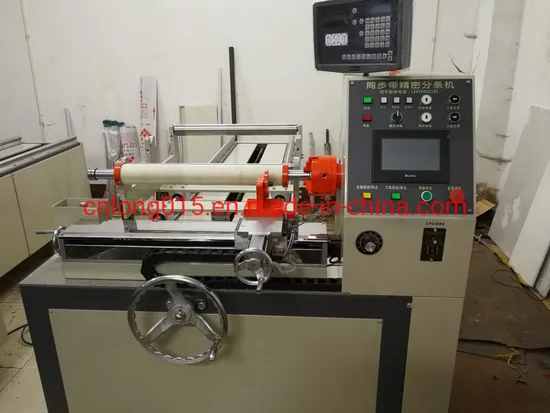

Automatic Timing Belt Cutting Machine, Endless Belt Slitter
Summary:
The cutting machine was engineered for cutting timing and flat belt sleeves.
The slitter is one of the helpful tools in your shop, it can help you lower labour costs and higher productivity.
The slitter can reduce the storage and costs of belts.
The slitter can supply immediate requirements of your customers, make a profit.
Automatic suitable for high quantities cutting

Technical Datasheet
Maximum Belt Width	500mm
Maximum Length	4500mm
Minimum Length	200mm
Minimum Width	3mm
High cutting accuracy	±0.3mm
Electrical connection	220V, single phase, 3KW. Also can make Dual Voltage 110/220V.
With 2 Cutting shafts	35mm and 65mm

Operation:
Controlled by PLC
Cutting speed is variable (controlled by steady frequency inverter) Digital Display of the cutting width
With touch screen, set cutting width and cutting quantities (automatic type) Cutting data storage is optional (automatic type)
Manual cutting shaft angle control
Pneumatic system, help to support hold the cutting shaft. One air compressor is built-in. Also can remove it, if already have air compressor in your workshop. Cutting Shaft is exchangeable.
Safety Devices: Emergency power off Safety knife cover
Electric protection
Machine Frame: Main body free of assemble. Other parts easy bolts connection. Easy maintenance. Baking varnish
The feet of machine are adjustable, make the machine horizontally. Suitable for different floor.
Tension Device: Electric control
Use ball screw & brass nut Speed is adjustable
Cutting Tool:
Frequency conversion motor, not normal motor (Semi Automatic slitter) High accuracy Servo motor (Automatic slitter)
Knife holder forward and back, use 4pcs cross guide rail, move accuracy under 0.01mm. Cutting motion via hand lever or automatic (via stepping motor)
Slide move use roller screw:
Automatic Slitter: Three functions in one machine:
Manual. Manual cutting & manual control the belt width (When use for big size belt, like 3M 5M, small quantities)
Semi-automatic. Setting belt width, manual cutting motion. Suitable for medium size and medium quantities.
Automatic. Very helpful for small belt, and high quantities. For example, need cut into 200~300pcs small belt.
Special Requirements: Special belt lengths, belt widths or belt thickness.
Can make workshop version for timing belt manufacturer use, longer belt and wider. For example, belt width 1m and belt length 8m.
Special working voltage
Special Solution For Thick Belt, Heavy Duty Belt.
Packing&Delivery:
We will use film to wrap the machine. then put into wooden box.
The normal package is wooden box.(Fumigation treatment).
Our Service:
Pre-sales Service
* Inquiry and consulting support.
* Sample testing support.
* Welcome view our Factory.
After-sales
*Teaching video to show how to work.
*Machine introduction word to show how to work.
Warranty
*Machines are new (or unused) and the guarantee period will be given 12 months from shipment date. During this
period, the seller will provide free maintenance and free spare parts that caused by the machine's quality. Parts
damaged because of mishandling and consumable parts are not covered by any warranty.
*All our machines have CE certificates and passed ISO9001-2008
