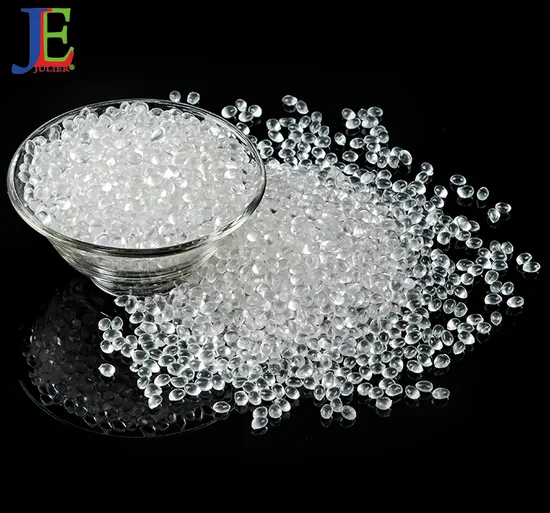

TPU Granules 60A Resin Injection Molding TPU for Sealing Rings

Product Description

Product Description
Thermoplastic polyurethane elastomer (TPU) is a type of elastomer that can be plasticized by heating and dissolved by solvents. The outstanding characteristics of polyurethane thermoplastic elastomers are excellent wear resistance, excellent ozone resistance, high hardness, high strength, good elasticity, low temperature resistance, good oil resistance, chemical resistance and environmental resistance. In a humid environment, the hydrolysis stability of polyether esters is far greater than that of polyester. It has good processing performance and is widely used in defense, medical, food and other industries.
TPU is a rapidly developing industry. New technologies, new products and new uses related to it continue to emerge. The use of TPU extends to almost all industries. It has been widely used in many fields such as shoes, clothing, pipes, films and sheets, cables, automobiles, construction, medicine and health, defense and sports and leisure. TPU is recognized as a new type of polymer material with green environmental protection and excellent performance.Application of TPU materials in sealing rings.
Sealing rings are also called gaskets and sealing gaskets. They are usually used in machines, thermos cups, etc. It is an annular cover composed of one or more parts, fixed on a ring of the shaft and bearing, in contact with another ring or gasket, or forming a narrow labyrinth gap to isolate oil and gas, prevent oil from overflowing or passing, and prevent foreign matter from intruding. At the same time, it can also bear pressure, and has the dual functions of pressure bearing and sealing within a certain range.
1. The sealing ring should have good sealing performance within the working pressure and a certain temperature range. The sealing ring made of TPU material can automatically improve the sealing performance as the pressure increases.
2. The friction between the TPU sealing ring device and the moving parts should be small, and the friction coefficient should be stable.
3. The TPU material sealing ring has strong corrosion resistance, is not easy to age, has a long service life, good wear resistance, and can automatically compensate to a certain extent after wear.
4. The structure is simple and easy to use and maintain, which makes the sealing ring have a longer service life.
Detailed Photos
Product Parameters

(1) Hardness

TPU hardness is usually measured by Shore A and Shore D hardness testers. Shore A is used for softer TPU, and Shore D is used for harder TPU. TPU has a wide hardness range, from Shore A60 to Shore D80, which spans the hardness of rubber and plastic. The hardness of TPU is related to many properties. As the hardness increases, the following properties of TPU change. The tensile modulus and tear strength increase, the rigidity and compressive stress (load capacity) increase, the elongation decreases, the density and dynamic heat generation increase, and the environmental resistance increases.

(2) Tensile strength and elongation

The tensile strength and elongation of TPU are much better than those of polyvinyl chloride plastics and rubber. In addition, TPU does not require or adds very little additives during the processing process, which can meet the requirements of the food industry. This is also difficult to achieve with other materials such as PVC and rubber.

(3) Density

The density of TPU is approximately between 1.10 and 1.25. At the same hardness, the density of polyether TPU is lower than that of polyester TPU.

Certifications
Packaging & Shipping
Company Profile
We are specialized in genaral plastic and engineering plastics.
Such as Nylon PA6 PA66, PPA, PC, PBT PPS,TPU,ABS,POM,PP,TPE, PLA , PMMA, PEEK,PPO,PPSU and so on.
We can help you to reduce the cost with high quality. Customize the materials and match the color as per your request.
Before sending the sample, we will discuss the details with you to ensure that the sample is suitable for your product.
When you test the sample, if you encounter technical problems, we will help you solve it together.
We have been engaged in the export of plastics from 2008. To give you competitive quotation, please contact us directly, and hope some of these items will be of interest to you.Our Advantages
Consulting--solution--quotation--samples--quality check-- order-- customization--deliver -- sell services.
1)Strength supplier.
2)protect your order from payment to delivery
3)safe payment options and MOQ 25kgs
4)Quality assurance
5)20ft container delivery time 7-10days
6)Real-time Quality Inspection Tour in full producing process;
7) Certication of Analysis provided for each delivery of goods
8) After-sales quality tracking and feedback.
Exhibition Customers
Customers give high praise
Whether it is raw materials, modified materials, samples or bulk goods, the quality and service have been well received by customers.
FAQ
1)Q: Where is your company?
A: Our headquarters is located in Xiamen, Fujian Province, factory in Xiang'an.
2) Q: What's the port of loading?
A: Normally Xiamen Port, also can as your requirements.
3) Q: How is your packing?
A:1. Waterproof Design(Dual package, Waterproof bag Inside)
2. Sealed Packaging,Impact resistant (Kraft paper bag+PE/Aluminum liner)
3. Customized package (25kg/bag or 1000kg/bag)
4. Water-proof , Anti-breaking,Anti-extrusion . Anti-heavy throw
5. Transporation by sea, the sample can be shipped by air.

---
