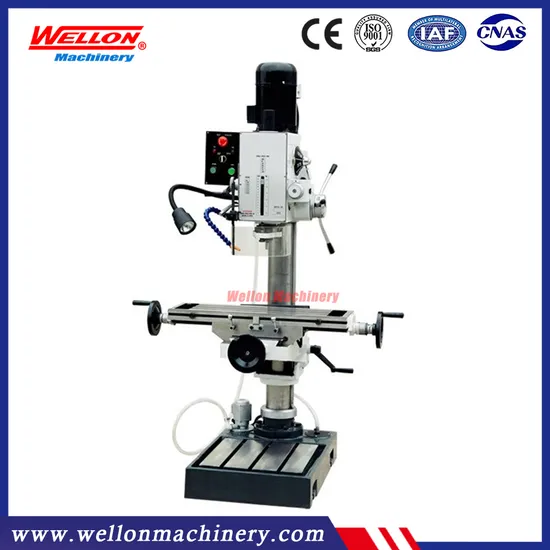

Gear Driven Vertical Drilling Machine Z5032C/1 Z5040C/1 Z5045C/1 Auto Feed Drill Machine

Product Description

Product Description

Product Parameters

Performence Features:
Drilling, milling and tapping.
Head swivels 360 degree horizontally.
Headstock and Worktable up & down perpendicularly.
Super high column.
Precision micro feed.
Positive spindle lock.
Distinct auto device for releasing tools, operate easily.
Geared drive, lower noise.
Technical parameter:

Model	Z5032C/1	Z5040C/1	Z5045C/1
Max.drilling capacity	32mm	40mm	45mm
Spindle taper	M.T.3 or R8	M.T.4 or R8	M.T.4 or R8
Spindle travel	130mm	130mm	130mm
Step of spindle speed	6	6	6
Range of spindle speed 50Hz	80-1250 r.p.m	80-1250 r.p.m	80-1250 r.p.m
60Hz	95-1500 r.p.m	95-1500 r.p.m	95-1500 r.p.m
Spindle feed steps	6	6	6
Spindle feed range	0.06-0.3mm/r	0.06-0.3mm/r	0.06-0.3mm/r
Distance from spindle axis to column	290mm	290mm	290mm
Distance from spindle nose to table	700mm	700mm	700mm
Distance from spindle nose to base	1125mm	1125mm	1125mm
Headstock travel	250mm	250mm	250mm
Swivel angle of headstock	360/ 90 degree	360/ 90 degree	360/ 90 degree
Worktable travel	600mm	600mm	600mm
Worktable size	730x210mm	730x210mm	730x210mm
Worktable travel X,Y,Z axis	500x205x570mm	500x205x570mm	500x205x570mm
Base size	417x416mm	417x416mm	417x416mm
Swivel angle of table	360 degree	360 degree	360 degree
Table tilt	+/-45 degree	+/-45 degree	+/-45 degree
Size of stand base	417x416mm	417x416mm	417x416mm
Motor Power	0.75KW(1HP)	1.1KW(1.5HP)	1.5KW(2HP)
Net weight/Gross weight	450kg/500kg	452kg/502kg	455kg/505kg
Packing size	1850x750x1000mm	1850x750x1000mm	1850x750x1000mm

Standard accessories:
Drill chuck
Taper sleeve
Wrench
Optional accessories:
Machine vice
Coolant system
Work lamp
Spindle guard
Company information
Packaging & Shipping
FAQ

1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical
Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper
machine and so on .
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price
and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.

---
