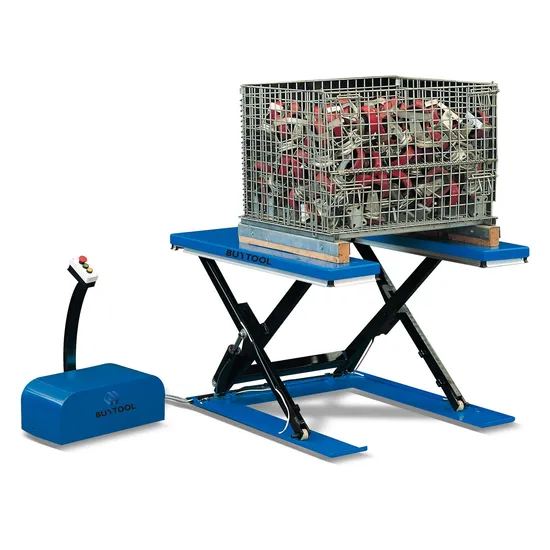

Buytool 1500kg Capacity Low Profile Electric Hydraulic Lift Table

Product Description

'U' Shaped Top Platform
Specially for handling pallets, no need for a pit or load ramps.
They are manufactured to all European safety standards including EN1570: 1990.
Remote power pack with pedestal and controls, pretected to IP54.
Upper platform fitted with safety perimeter to prevent descent on contact with obstructions.
24V control box with UP and DOWN buttons and emergency stop.
External power pack equipped with a relief valve against overloading and a compensated flow valve for controlling lowering speed.
Hose burst safety valve to stop the lift table lowering in case of hose breakage.
Removable lifting eyes to facilitate handling and installation of the lift table.
Mechanical safety chocks for maintenance.
Oiless bushings on pivot points.
Quick assembly joint for oil hose.

Model	HU600	HU1000	HU1500
Capacity (kg)	600	1000	1500
Max. height H(mm)	860	860	860
Collapsed height h(mm)	85	85	105
Platform L×W(mm)	1450×985	1450×1140	1600×1180
Lifting Time (second)	25~35	25~35	30~40
Power Pack (KW)	380V/50Hz,AC1.1KW	380V/50Hz,AC0.75KW	380V/50Hz,AC1.5KW
Net Weight (kg)	207	280	380

FAQ:
Q: What about the quality of the products?
A: Our products are CE approved, and we have five inspection steps before shipment:
1. Inspect the raw material in accordance with ISO9001;
2. Strict inspection in the whole production process;
3. Load limit test when assembling finished;
4. 100% strict inspection of products before shipment;
5. If needed, inspection by buyer.
Q: How long is the quality guarantee?
A: All of our products carry one-year warranty.
Q: What's the leadtime?
A: Normally 30 days.
If you order more than 5 itmes mixed in one container, it will be 45 days.
If you order one item in one container, it will be 20 days.

---
