High Efficiency Ep Series Electric Screw Press for Metal Processing

Product Description

Electric power press is designed specially according to the requirements of refractory material pressed technology. It has light and heavy sequence blow and is an ideal device for pressing brick.

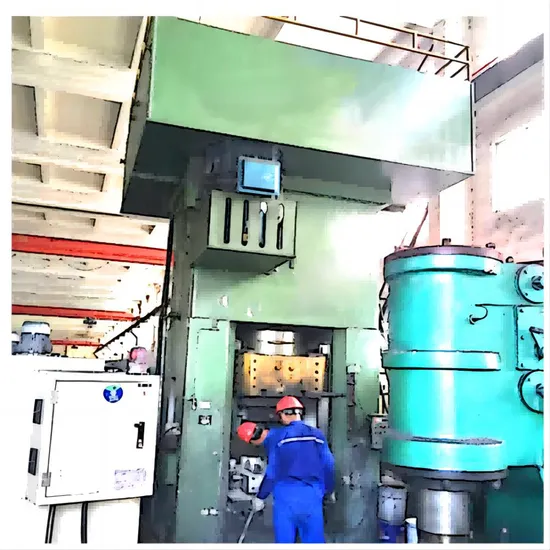

EP / EPC series electric screw press is an energy-saving precision forging equipment. EP series is a direct-drive electric motor screw press; EPC series are electrical - mechanical drive electric screw press, the machine uses servo type Switched Reluctance Motor with high starting torque, speed and good performance .
EP series CNC electric screw pressure, the electric part absorbs the advanced electric screw pressure technology of the world forging industry, the mechanical part adopts the forging industry excellent clutch screw pressure technology of the industry, it is the domestic advanced level CNC electric screw pressure jointly developed with domestic research institutes.The forging equipment has strong process adaptability, significant energy saving and environmental protection, and a high degree of automation.It can adapt to hot forging, fine forging and finishing; and the welding process of stainless steel composite pan, and the precision forging of titanium alloy blades or other blades.Is an indispensable advanced equipment of modern forging enterprise.
The machine has the following characteristics:
1. Simple and reasonable structure, short drive chain, less maintenance workload and convenient operation.
2. Switch the magnetic resistance motor to start instantly and stop instantly.When striking the workpiece, the motor runs, complete the strike, stop immediately, high efficiency and energy saving.
3. The main motor is running without noise.
4. The left and right working Windows of the rack are convenient, and the forgings are convenient to realize the flow
5. High slider guidance precision, circular guide rail and X-type guide rail guidance, small guide rail gap, strong anti-tilt ability, adapt to multi-mode boring mode forging, saving equipment labor cost.
6. Intelligent fault detection system ensures that electrical maintenance personnel can obtain relevant information in the shortest time.
7. The strike energy can be accurately set and is the spiral pressure machine with the highest strike accuracy.With the tonnage instrument protection, it can easily adjust the energy and strike force according to the requirements of the forging, enabling the mold to bear the most.
Photoelectric protection device makes the safety performance of the equipment more reliable.
EP series CNC( computer numeric control electric screw press is a kind of high automatic,energying saving and environmental protection forging equipment with high technical adaptability.It can be used both in Hot forging and precise forging and trimming. Applied in stainless steel double bottom pot prssing and precise forging oftitanium alloy vanes and other vanes. Patent
The machine has following advantages:
1,Simple struture,short transmissoin chain belt, less frequent maintence,Easy operation.
2,BLDC motor, instant start and instant stop. The motor rotate when the press is forging the workpiece,and will stop
rotating instantly after forging.It's high efficiency. 3,low noise of main motor.
4,left and right working window, convient to transfer the workpieces.
5,high precision of ram orientatation, mini clearance of guide strips, strong capability for anti declination, suitable
for multiple-die forging.
6,intellectualized detecting system
7,pre-set blowing force precisely,adjust energy and blowing force according the requiments of workpieces, prolong
the working life of the molds.
8,photoelectricity protection system to protect the machine.

Main parameters		unit	EP-160	EP-300	EP-400A	EP-630A	EP-1000	EP-1600	EP-2500	EP-4000
Nominal force		kn	1600	3000	4000	6300	10000	16000	25000	40000
Continuous force		kn	2500	4800	6400	10000	16000	25000	40000	60000
Energy		kj	10	26	40	90	150	260	500	800
Ram stroke		mm	300	400	410	500	550	650	700	1020
Max blowing speed		min-1	30	27	24	21	17	15	14	10
Times of ram stroke		mm	380	400	480	600	700	800	1050	1150
Size of ram bottom	fron(/back	mm	560	660	760	920	1030	1250	1450	2250
	left/right	mm	540	540	600	670	800	900	1250	1400
Dimention of table bolster	front/back	mm	600	670	820	920	1000	1250	1450	2250
	left/right	mm	560	570	730	800	900	1100	1400	1650
Plate thickness		mm	-	120	120	180	180	200	280	300
Distance between guide strip		mm	-	545	640	707	810	940	1260	1470
Ejection force		kn	50	55	60	150	150	200	400	800
Ejection stroke		mm	100	50	80	150	150	200	200	200
Overall dimention	Front/back	mm	1700	1850	1910	2670	3000	3240	4800	5200
	left/right	mm	2800	2800	3490	3240	3560	4050	4800	5200
	height	mm	3730	4300	4500	5745	6395	6920	8350	9500
Main motor power		kw	22	45	55	110	132	2x 132	2x200	2x250
Weight		kg	11000	18000	24800	48000	76000	136000	270000	420000
Height above the ground		mm	3650	4600	4260	5245	5628	6015	7200	' 8200

---
