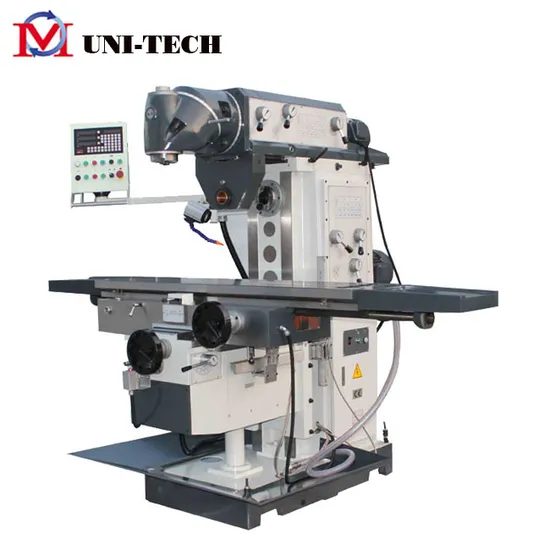

RAM Type Horizontal and Vertical Universal Milling Machine

Product Description

ram type horizontal and vertical universal milling machine
ram type horizontal and vertical universal milling machine feature:
1.Driven by servo motor;
2.Table automatic feed on X,Y,Z;
3.Automatic rapid feed X,Y,Z.
4.Rotary table can be ordered at special request;
5.ISO 50 spindle taper;
6.Milling head can swivel 360 degree;
7.The work table can swivel ±45 degree;
8.High spindle speed;
9.Powerful main motor.
universal swivel head milling machine price for sale specification:

Specifications	Unit	XL6436	XL6436C	XL6436CL	XL6432	XL6432C	XL6432CL
Table size	mm	1325×360		1600×360	1325X320		1600X320
Table travel (X/Y/Z)	mm	750/320/460	1100/320/450	1300/320/450	750/320/460	1100/320/450	1300/320/450
Table feed(X/Y/Z)	mm/min	30~750/20~500/15~375			30-750/20-500/15-375
Spindle taper	--	7:24 IS050 (H) 7:24 IS050 (V)			7:24 IS050 (H) 7:24 IS040 (V)
Arm travel	mm	550
Distance between spindle nose and table surface	mm	196-656	196-646		196-656	196-646
Distance between horizontal nose and table surface	mm	20-480	20-470		20-480	20-470
Distance between spindle axis and arm surface	mm	200
Spindle speed range	r.p.m	12steps 60-1750 (V) 12steps 60-1800 (H)
T-slots(NO./width/pitch)	mm	3/18/80			3/18/70
Main motor power	Kw	5.5 (H) 4 (V)
3 to feed Ac servo motor torque	N.m	10
Overall size	mm	1800×2100 ×2000	2245×2100 ×2000	2520×2100 ×2000	1800x2100 x2000	2245x2100 x2000	2520x2100 x2000
Net weight	kg	2685	2750	2800	2635	2700	2750

ram type horizontal and vertical universal milling machine standard accessories:

Iterm	Model
7:24 middle cover	7:24 ISO50/MS4
Horizontal arbor assembly	Ф27
Horizontal arbor assembly	Ф32
Drawbar	M24
Double-ended wrench	S22-24
Double-ended wrench	S17-19
Double-ended wrench	S36-41
Inner hexagonal wrench	5
Inner hexagonal wrench	10
Inner hexagonal wrench	14
QB13 Series Machine vice	160mm
sleeve	M24
Washer	M24
Taper shanl sets milling cutter arbor	7:24 ISO50-Ф32
Operation manual
The packing list
certification
EP100 series servo drive manual

ram type horizontal and vertical universal milling machine optional accessories:
1.3-axis DRO(SINO)
2.LED work light
3. Aluminum arm for DRO
4.Spindle cover
5.Using Schneider brand electrical components
6.CE standard
7.Rotary worktable
8. machine vice
9. milling chuck
ram type horizontal and vertical universal milling machine more photos:
If you are interested in ram type horizontal and vertical universal milling machine , pls contact
TENGZHOU UNI-TECH CO.,LTD
Contact person: KITTY XU

---
