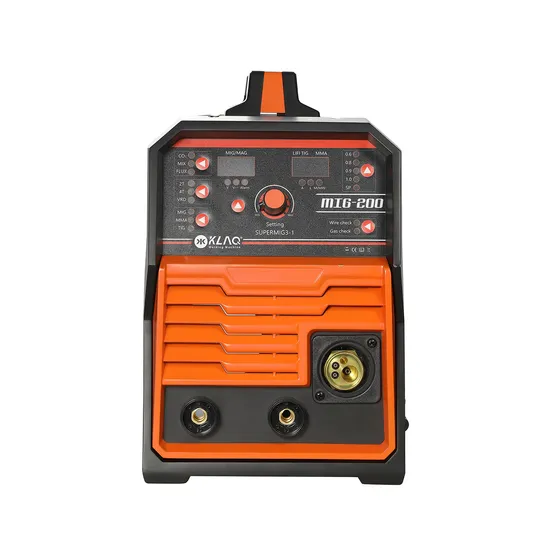

3 in 1 MMA TIG Mag MIG Welders Gas Gasless CO2 160 AMPS MIG Welding Machine

Product Description

1.MIG & MAG & MMA function in one machine.
2.Advanced lGBT technology, compact design,Lightweight, and energy saving.
3.Digital display, precisely controlled weldingcurrent, stable welding process and excellentwelding characteristics.
4.Automatic over-current,over-heat and over-voltage protection.
5.Integrated design with a wire feeder built-in.Facilitate mobility operations.
6.Can be used with gas or without gas.
7.Applicable for welding low carbon steel and lowalloy steel of different thickness.

TECHNICAL SPECIFICATIONS
ITEM	MIG-140	MIG-160	MIG-180	MIG-200
Input Power Voltage(V)	AC230V	AC230V	AC230V	AC230V
Input Power Frequency(Hz)	50/60	50/60	50/60	50/60
Rated Input Capacity(KVA)	3.8	4.5	5.3	6.1
Output Current Range(A)	40-140	40-160	40-180	40-200
load Voltage(V)	16-21	16-22	16-23	16-24
Wire Feed Speed(M/min)	3-15	3-15	3-15	3-15
Gas Flow(L/min)	15-20	15-20	15-20	15-20
Rated Duty Cycle (%)	60	60	60	60
Power Factor(COSφ)	0.93	0.93	0.93	0.93
Protection Grade	IP21S	IP21S	IP21S	IP21S
Dimensions(mm)	410x240x355	430x240x355	450x240x355	450x240x355
Weight (Kg)	8.6	8.8	9.3	9.8
