Horizontal Machining Center 6 Axis Drilling Tapping Milling Compound Machine

Product Description

Horizontal Machining Center 6 Axis Drilling Tapping Milling Compound Machine
I.Product structure
1.High rigid structure, strong stability;

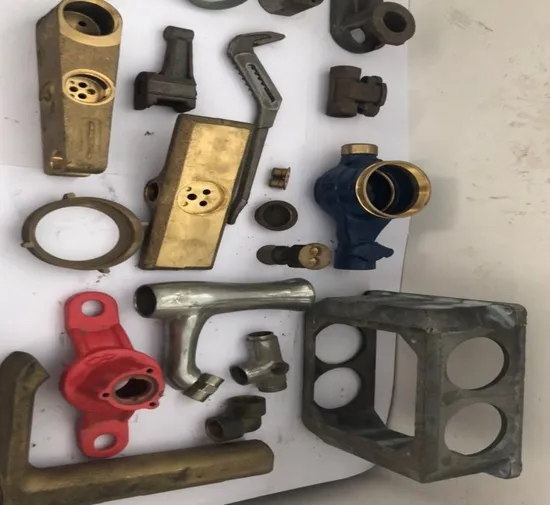

2.Suitable for medium and large bulk of copper, zinc alloy, aluminum alloy, stainless steel and steel parts processing;
3.High-quality castings, the structure has been analyzed by finite element to achieve high stability;II.Parameter:

Name	Unit	Model
		ZSK4860	ZSK4880	ZSK4810
Number of spindle		6	8	12
Spindle taper		BT40	BT40	BT40
Spindle center distance	Mm	120	120	120
Extension length of main shaft	Mm	100	100	100
Spindle sleeve diameter	Mm	φ105	φ105	φ105
Spindle speed	r/min	1-3000	1-3000	1-3000
X/Y/Z feed rate	MM	3000MM	3000MM	3000MM
Spindle box stroke(X axis)	MM	400	600	600(customized)
Max drill diameter(Copper)	MM	50MM	50MM	50MM
Workbench size	MM	400*500	400*500	400*500
Workbench stroke(Y axis)	MM	300mm	300mm	300mm
Mid-tow itinerary(Z axis)	MM	450mm	450mm	450mm
Distance between spindle end face and worktable end face	Mm	294-744MM	294-744MM	294-744MM
Spindle motor power	KW	5.5KW	5.5KW*2	5.5KW*2
Dimension	MM	220*1830*2500	2200*2030*2000	2200*2030*2000
Weight	KG	4150KG	4250KG	4600KG

III.Production workshop
IV.Package and Loading
V.Certificate:
Quanzhou Yueli Automation Equipment Co.,Ltd was founded in 2013,which covers an area of 3000 square meters. The company is located at the China Plumb Town--Nanan, Fujian. It is a production enterprise lead by drilling tapping compound machine, drilling tapping centers and drilling tapping milling process center. The company is committed to serving various of industries such as sanitary ware, fire protection valves, hardware, electrical hardware, aerospace, machine manufacturing and so on.
If you have any interest, pls feel free to contact at any time.

---
