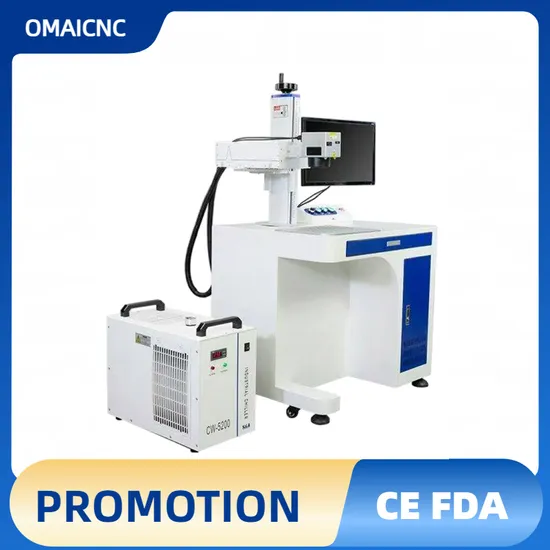

UV Laser Marking Machine 3 Watt 5 Watt 10 Watt Ultraviolet Laser Marker Uiv Laser Engraving Machine

Product Description

UV laser marking machine 3 watt 5 watt 10 watt ultraviolet laser marker UIV laser engraving machine
Details Pictures:
UV Laser Marking Machine Introduction:
UV laser marking machines utilize a 355nm ultraviolet laser to produce high-precision, low-heat marking. The process uses "cold" laser technology, minimizing thermal effects and ensuring precision and clarity, even on delicate or heat-sensitive materials.
Product Parameters
Parameters:

Machine model	OM-U5
Laser source	5W JPT (best brand in China)
Marking area	110*110mm
Computer	Including Computer with EZCAD software
Machine frame	Desktop model
Laser Wavelength	355nm
Pulse Repetition Rate Range	20kHz-150kHz
Beam Quality	M² ≤ 1.2
Beam Diameter	Non- expanding: 0.55±0.15mm
Average Power Stability	<±3% over 24h
Marking lines	1-10 lines(in the marking area)
Minimum line width	0.1mm
Minimum character	0.5mm
Repeatability accuracy	±0.001mm
Water chiller	Including
Laser Lens	Sino lens
Cooling system	Water cooling
Certificate	With CE & FDA Certificate
Application	Professional for metal and some non metal
Supply Voltage	110/220V/50HZ

Detailed Photos
Key Features:
1. High Precision: Delivers ultra-fine marking, ideal for micro-marking applications.
2. Low Heat Impact: Prevents damage to sensitive materials, maintaining the integrity of the marked surface.
3. Versatile Materials: Suitable for marking plastics, glass, ceramics, metals, and more.
4. Wide Applications: Widely used in industries such as electronics, medical devices, cosmetics, and packaging.
Main Parts:
1. Fiber Laser Source: JPT brand with over 100,000 hours lifespan. Raycus, IPG, or others options are available.
2. Control Board: Designed for ease of operation, user-friendly for all operators.
3. F-Theta Lens: Offers stability with wavelength-specific options (Sino or Huayuan), and a choice of field sizes: 110mm, 150mm, 200mm, and 300mm.
4. Galvanometer Scanning Lens: Provides high-speed scanning (<0.7ms) with precision marking capabilities.
5. Lifting Shaft: Enables precise adjustment of marking height.
6. Industrial-Grade Extended Optical Path: Reinforces linear optical stability for consistent laser output.
7. Aluminum Table: Features standard positioning holes for quick and adjustable positioning.
8. Control System: EZCAD, known for its stable performance and reliability, simplifies complex functions to ensure high operational stability.
9. Software: English version is standard, and other language versions are available upon request.
Optional Components:
Rotary Options:
Ring Marking Model: Specifically designed for marking on rings.
Standard Model: Available with 50mm and 80mm diameter options, suitable for broader marking applications.
UV Laser Marking Machine Materials and Applications: Materials:
UV laser marking machines are ideal for marking various materials, including:
Plastics (ABS, PC, PET, PVC) Glass Ceramics Metals (stainless steel, titanium, aluminum, etc.) Rubber Wood Paper and cardboard Industries:
UV laser marking machines are widely used across industries such as:
Electronics: Marking electronic components, circuit boards, and microchips. Medical Devices: Engraving medical tools, instruments, and devices with precision. Cosmetics and Personal Care: Marking product packaging, such as bottles and tubes. Automotive: Engraving interior parts, switches, and labels. Packaging: Creating barcodes, QR codes, and expiration dates on various packaging materials. Jewelry and Luxury Goods: Marking intricate designs and text on delicate surfaces. UV laser technology ensures high precision and minimal damage, making it ideal for industries requiring detailed, high-quality markings.

Packaging & Shipping
Package and Delivery:
1. Anti-Collision Protection: Each part of the machine is cushioned with soft, shock-absorbent materials, primarily pearl wool, to protect against impact.
2. Full-Film Wrapping: The machine is completely wrapped in film to prevent moisture and dust exposure.
3. Fumigated Wooden Crate: The crate is treated to ensure safe, compliant shipping.
4. Reinforced Iron Base: A solid iron base is built into the wooden crate for stable support and easy handling during transport. Packing List:1. Protective Goggles - Essential for eye protection during operation.
2. Power Cable - Supplies power to the machine.
3. Foot Switch - Enables hands-free operation control.
4. Flash Drive - Includes software and English user manual.
5. Positioning Bars - Helps accurately position materials.
6. Tool Set - Basic tools for maintenance and adjustments.
7. Laser Test Paper - For testing laser precision and output.
8. Ruler - Assists with material alignment and measurement.
9. Spare Buttons - Replacement buttons for quick repairs. After Sales Service
Warranty and After-Sales Service:
1. Warranty Period: 2 years for the entire machine and 2 years for the fiber laser source.
2. Lifelong Technical Support: Available online or via email.
3. 24/7 Online Assistance: Our team is ready to help you effectively use our machine at any time.
4. Overseas Support: We offer training, installation, and operational assistance if needed.
5. Free Training at Our Facility: You are welcome to visit us for hands-on training.
6. Certification: Our machines are produced in compliance with CE and FDA standards.
Customer Feedback:
Certifications
Certifications:
FAQ:
1. How can I choose the most suitable machine?
Please let us know the type of work you plan to do, the primary materials you'll use, and whether you'll be engraving or cutting. If cutting, what is the maximum cutting thickness required? Additionally, let us know the preferred working area size.
2. If parts have issues during the warranty period, will your company repair or replace them?
Yes, we will. Simply send the faulty part back to us, and we'll repair and return it to you free of charge within the warranty period. If it cannot be repaired, we'll send you a new part. (Note: Does not cover consumables or damages caused by misuse.)
3. Is technical support available after we receive the machine?
Absolutely. Our technicians are available 24/7 to assist with installation and provide free training once you receive the machine
4. Can you deliver the machine to my door?
For large, heavy machines, we usually quote a CIF price and ship to your nearest port. However, door-to-door delivery is available under DDU terms, which includes shipping, customs clearance, and delivery to your location.
For smaller machines, we can provide a quote for door-to-door express shipping (via DHL, TNT, FedEx), with delivery in approximately 5-7 days. 5. Can I purchase spare parts from your company in the future?
Yes, we recommend purchasing some spare parts along with the machine to save on shipping costs.
6. How long is the delivery time?
Standard machines are typically shipped within 3-7 days, while customized machines may require 10-15 days.
Our company:

Jinan Omai CNC Machinery Co., Ltd. stands as a leading manufacturer, specializing in a diverse range of laser technologies, including laser cleaning machines, welding machines, fiber laser cutting, and marking machines. With a decade of industry expertise, our proficient engineers, skilled assembly and testing teams, and dedicated after-sales support ensure superior quality products and services. We accommodate small batch orders, offer OEM and ODM services, and provide bespoke solutions crafted to your unique specifications. Our esteemed global clientele spans across the USA, UK, Taiwan, South Korea, Malaysia, Thailand, Australia, Brazil, Russia, South Africa, and beyond.

---
