Product Description
Product Description

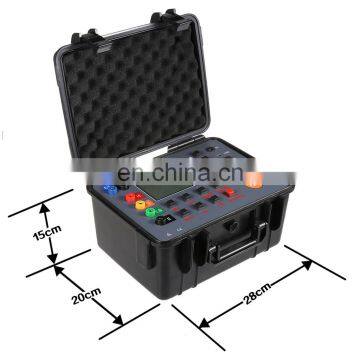

MY2308
Intelligent Double Clamp Grounding Resistance Tester
Application:
ground resistance
soil resistivity
ground voltage,
DC voltage and AC current.
500 sets of data
Widely used in telecommunications, electricity, meteorology, computer rooms, oil fields, power distribution lines, iron tower transmission lines, gas stations, factory grounding networks, lightning rods and so on.
The instrument has the characteristics of precise, fast, simple, stable and reliable.
Measurement Function
| Measurement Range
| Resolution
| Accuracy
|
Measuring Grounding Resistance ( Re ) by Two, Three, Four - wire Method
| 0.00Ω~29.99Ω
| ±2%rdg±5rdg
| 0.01Ω
|
| 30.0Ω~299.9Ω
| ±2%rdg±3rdg
| 0.1Ω
|
| 300Ω~2999Ω
| ±2%rdg±3rdg
| 1Ω
|
| 3.00KΩ~30.00KΩ
| ±2%rdg±3rdg
| 10Ω
|
Direct current ( R- )
| 0.0Ω~299.9Ω
| ±2%rdg±3rdg
| 0.1Ω
|
| 300Ω~2999Ω
| ±2%rdg±3rdg
| 1Ω
|
| 3.00KΩ~30.00KΩ
| ±2%rdg±3rdg
| 10Ω
|
Measuring Grounding Resistance ( Re ) by Selection Method
| 0.00Ω~299.99Ω
| ±2%rdg±5rdg
| 0.01Ω
|
| 30.0Ω~299.9Ω
| ±2%rdg±3rdg
| 0.1Ω
|
| 300Ω~3000Ω
| ±2%rdg±3rdg
| 1Ω
|
Measuring Grounding Resistance ( Re ) by Double Clamp Method
| 0.01Ω~0.99Ω
| ±10%rdg±10rdg
| 0.01Ω
|
| 1.0Ω~9.9Ω
|
| 0.1Ω
|
| 10Ω~100Ω
|
| 1Ω
|
Soil resistivity ( p )
| 0.00Ωm~99.99Ωm
|
Ρ=2πaR
| 0.01Ωm
|
| 100.0Ωm~999.9Ωm
|
| 0.1Ωm
|
| 1000Ωm~9999Ωm
|
| 1Ωm
|
| 10.0kΩm~99.99Ωm
|
| 10Ωm
|
| 100.0kΩm~999.9kΩm
|
| 100Ωm
|
| 1000kΩm~9999kΩm
|
| 1kΩm
|
Ground voltage
| AC 0.00~100.0V
| ±2%rdg±3rdg
| 0.01V
|
alternating voltage
| AC 0.0mA~1000A
| ±2%rdg±3rdg
| 0.1mA
|
Packing list
Instrument
| 1
| USB communication line
| 1
|
meter box
| 1
| Test line
| 4
|
Auxiliary grounding rod
| 4
| Simple test line
| 2
|
Current clamp
| 2
| 6V Battery ( Built - in )
| 1
|
Monitoring software CD
| 1
| Charger
| 1
|
User manual warranty
| 1
|
| |
company
Packing & Delivery
Q&A
FQA :
-Can the equipment be customized?
Provide technical specifications and standards, customized
-About warranty?
Our quality is trustworthy, but we promise a one-year warranty.
-Worried not to use?
We will have professional technicians to guide us remotely. If you like, you can also teach on site.
>>
